Adjustable Lens Tube — Model SM1-SC31
✔ In Stock — Ships Today

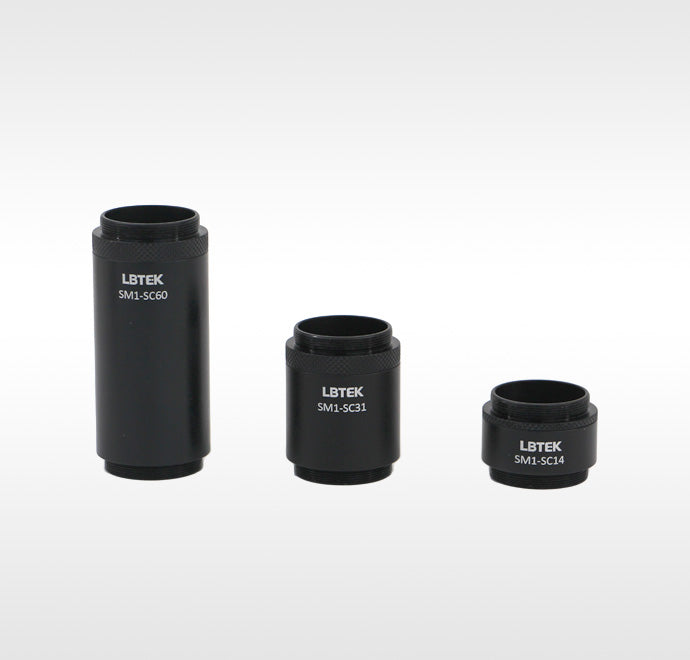

The LBTEK SM1 Adjustable Shielded Lens Tube features SM1 external threads on both ends, allowing direct connection to SM1 internal threaded mechanical components. This shield tube provides an enclosed light-blocking space to achieve a sealed optical path environment. After one end of the adjustable shield lens tube is fixed, the other end can be rotated and extended. The shortest lengths of this series of shield tubes are 14 mm, 31 mm, and 60 mm, with adjustable ranges of 9 mm, 19 mm, and 49 mm respectively.
Key Features
- SM1 external threads on both ends
- Minimum lengths: 14 mm, 31 mm, 60 mm
- Expandable design allows building multi-component optical systems
Application
The adjustable shielded lens tube is applied in 30 mm coaxial systems.
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
