Adjustment plates and retaining clamps AC270
AC270$81.45
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Adjustment plates and retaining clamps AC270 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

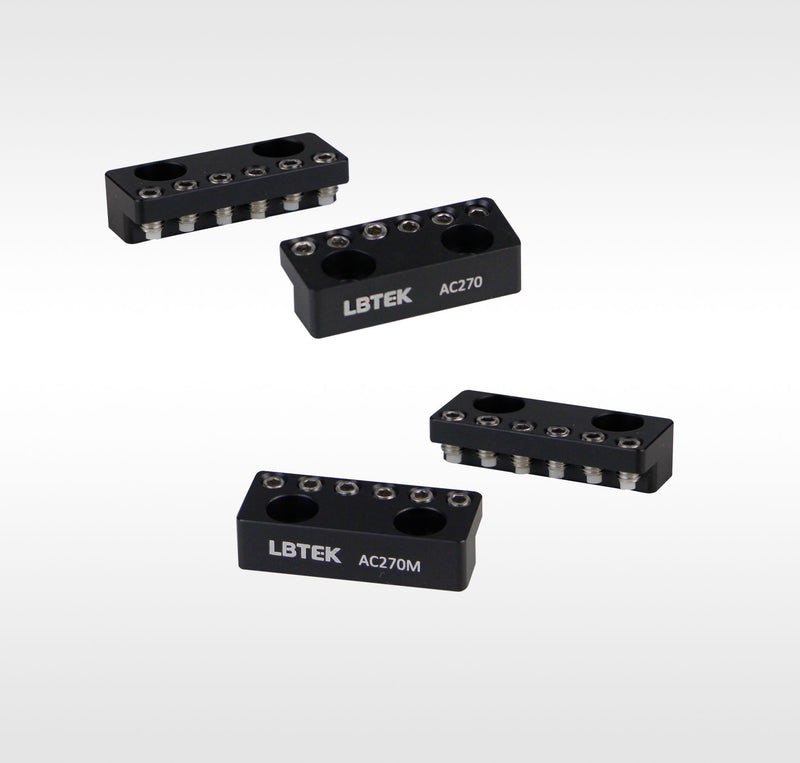

LBTEK adjustment plates are used for close-range installation of multiple components. The adjustment plate comes with a row of rubber-tipped screws for securing components, facilitating repositioning and close-range installation. Each is fixed through two screw holes, with two options available: 6-32 or M3 pan head screw counterbore holes.
Key Features
- Close-range installation of multiple components saves space
- Optional fixation with M3 screws or 6-32 screws
- Two pressure plates used together allow adjustment without disassembly
Application
Adjust the pressure plate to lock the two adjacent components and secure them on the multi-axis translation stage.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Thickness | 6-32 Hex Socket Head Cap Screw |
| Material | 6-32 threaded hole |
| Dimensions | 27 mm × 11 mm × 7 mm (single component) |
| Weight | 0.001 kg (single component) |
| Hex Key Wrenches Included | 6-32 rubber head screws 12 pcs; 6-32 pan head hex socket screws 4 pcs |
| Surface Count | 2 |
No CAD drawings available for this product.
Product Family: Adjustment plates and retaining clamps (3 variants)
