Adjustment plates and retaining clamps FF05
FF05$54.22
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Adjustment plates and retaining clamps FF05 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

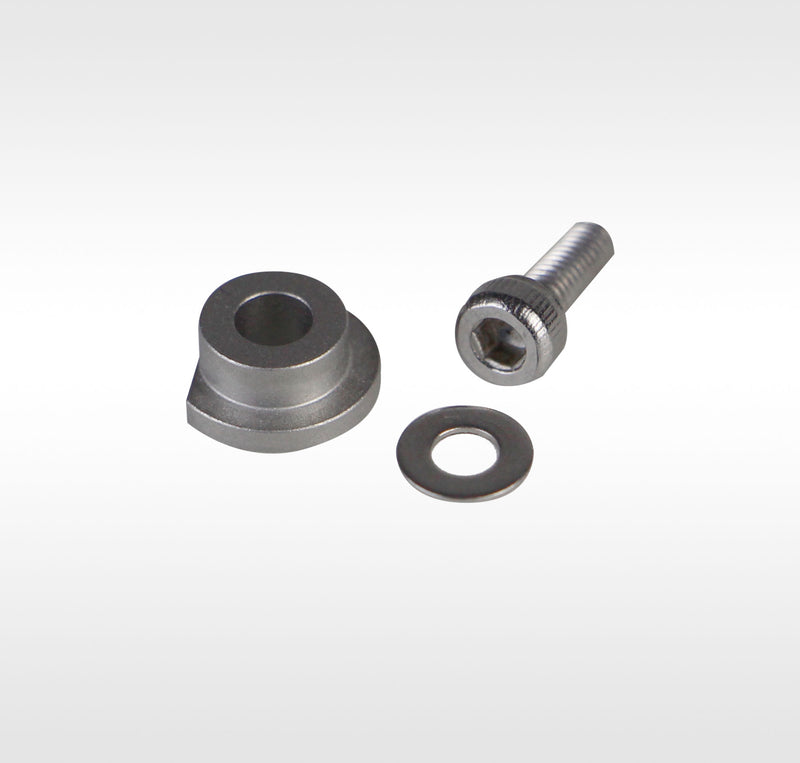

The edge on one side of the LBTEK fixed clip is milled flat. During installation, first rotate the clip so that the flat edge faces the groove. Then place the accessory into the groove between the clips, rotate the bolt to cover the edge of the accessory with the rounded side, and finally tighten the M3 pan head screw and washer. There is no need to remove the pan head screw when rotating the clip.
Key Features
- One side milled flat for easy adjustment
- Stainless steel material, comes with M3 pan head screws for locking
- 5 pieces per pack
Application
Secure the buckle to lock the OFF32 fiber optic holder and mount it on the multi-axis translation stage.
| Material | Stainless Steel 304 |
| Locking Screw Model | M3 |
| Dimensions | Ø10.6 mm×4.2 mm |
| Weight | 0.001 kg (single component) |
| Hex Key Wrenches Included | 1 M3 hexagon socket head cap screw; 5 flat washers |
| Surface Count | 1 pack of 5 |
No CAD drawings available for this product.
Product Family: Adjustment plates and retaining clamps (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Adjustment plates and retaining clamps AC270 |
AC270
| — | — | — | View |
| Adjustment plates and retaining clamps AC270M |
AC270M
| — | — | — | View |
| Adjustment plates and retaining clamps FF05 Current |
FF05
| — | — | — |
