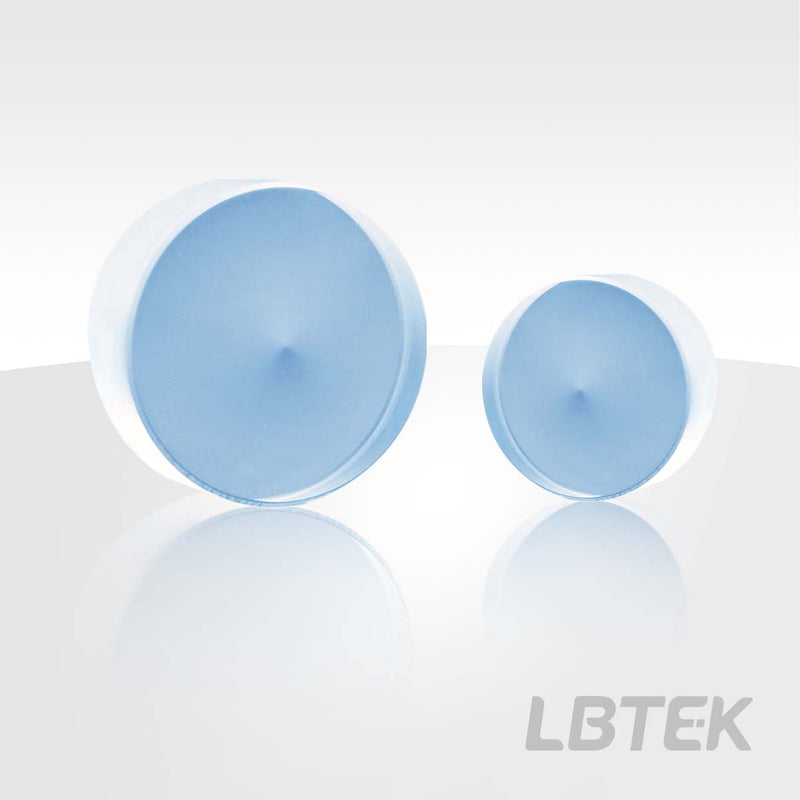

Axicons, UVFS, Uncoated: 200 nm-2.1 μm CL20620

Axicons, UVFS, Uncoated: 200 nm-2.1 μm — Model CL20620

Operating wavelength 200 nm-2.1 μm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

• Optical Material: UV Fused Silica
• Working Wavelength: 200 nm - 2.1 μm
• Application: Used for Generating Ring-Shaped Beams

An axicon, also known as a rotationally symmetric prism, is a lens composed of a conical surface and a planar surface. It is commonly used to generate beams with Bessel intensity profiles or ring-shaped beams. When converting a collimated beam into a ring-shaped beam, the planar side of the axicon should face the collimated light source. LBTEK manufactures axicons using UV fused silica, which is suitable for a wide range of ultraviolet, visible, and near-infrared applications. With its low refractive index, low coefficient of thermal expansion, and high hardness, it is ideal for harsh working environments. LBTEK offers uncoated axicons with four different apex angles (α): 0.5°, 1°, 2°, and 5°. All our axicons are precision-engineered and undergo strict quality control, ensuring that LBTEK provides high-quality lens products at competitive prices. Custom axicon solutions are available. For special requirements, please contact LBTEK Technical Support.

Axicons, UVFS, Uncoated: 200 nm-2.1 μm

• Optical Material: UVFS
• Operating Wavelength: 200 nm-2.1 μm
• Application: Used for Generating Annular Beams

Ø25.4 mmConical Lens Mounted on the Displacement Adjustment Stage TXY1
