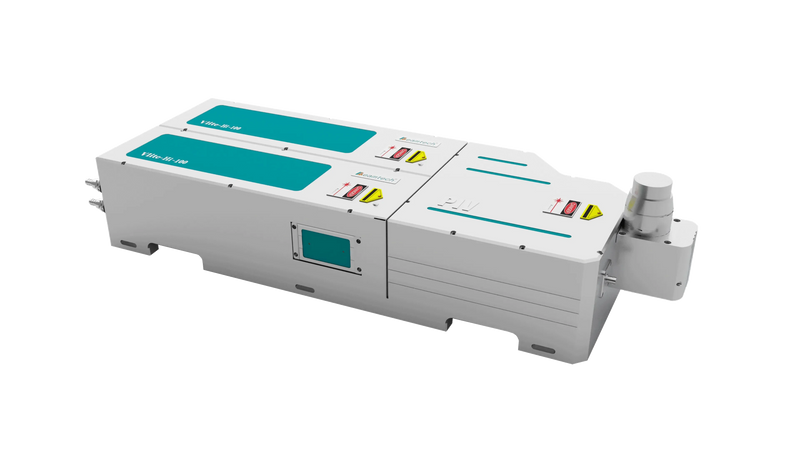

Medium Repetition Rate Dual-Pulse PIV Laser
The Vlite-Hi-100 laser is a dual-pulse green laser designed and developed to meet the demands of PIV applications for medium frequency, high energy, and narrow pulse lasers. It features a single pulse energy up to 100mJ@100Hz and can be used as an illumination source for high-speed flow field 2D/3D PIV and time-resolved TR-PIV applications.
Key Features
- Output energy options: 50mJ / 100mJ
- Repetition rate: 100Hz
- Integrated design of laser, light arm, and optical light sheet
- Beam uniformity designed for PIV applications
- Good mechanical stability and high beam combining stability
- Electro-optic Q-Switched Technology, pulse width less than 15ns
- Compatible with various PIV systems
| Models | Vlite-Hi-50 | Vlite-Hi-100 |
|---|---|---|
| Wavelength | 532nm | 532nm |
| Repetition Rate | 0-100Hz | 0-100Hz |
| Pulse Energy | 2*50mJ | 2*100mJ |
| Energy Stability (RMS) | ≤3% | ≤3% |
| Pulse Width | 10-15ns | 10-15ns |
| Divergence | ≤7mrad | ≤7mrad |
| Pointing Stability (RMS) | ≤50μrad | ≤50μrad |
| Jitter (RMS) | <1ns | <1ns |
| Beam Diameter | 9mm | 9mm |
| Near Field Beam Profile | Flat-top, Uniform | Flat-top, Uniform |
| Spectral Purity | ≥99.8% | ≥99.8% |
| Cooling | Chiller | Chiller |
| Electrical Service | 380V-50/60Hz-16A | 380V-50/60Hz-16A |
| Power Consumption | 5000W | 5000W |
| Umbilical Length | 3m | 3m |
| Light Arm (Optional) | 7 Joints ,1.8m | 7 Joints ,1.8m |
1. 100% Pulse to Pulse energy stability measured over 1 hour;
2. Full width half max (FWHM);
3. Full angle measured at 1/e² of the peak;
4. With respect to external trigger;
5. Measured at the laser output;
Source: Beamtech manufacturer datasheet. Download the brochure (PDF) from the Documents tab for full details.
No documents available for this product.
Vlite-Hi-100 — Medium Repetition Rate Dual-Pulse PIV Laser — Dimensional Drawing (click to enlarge)
