Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm MPBS632

MPBS632
$494.80
In Stock
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters
View all 49 calculators →
RoHS REACH

Broadband PBS 620-1000 nm — Model MPBS632

N-SF1, optimized for 620 nm-1000 nm, cube size 20.0 mm×20.0 mm×20.0 mm, extinction ratio >1000:1.

Overview

LBTEK mounts the 20 mm broadband polarizing beamsplitter cube (AR coating: 620nm-1000nm) inside a cubic housing compatible with 16 mm cage systems. A scribe line on the top face marks the beam direction. M3 threaded holes on the side allow connection to 16 mm cage systems via a Ø4 mm cage-compatible mounting post. Four SM05 internal-thread ports accept 12.7 mm lens tubes. M4 threaded holes at the base support post mounting.

Key Features

  • Extinction ratio (Tp:Ts) >1000:1
  • Spectroscopic film: Tp>90%, Rs,avg >95%
  • AR coating: Ravg<0.5% (6°input face, per surface)
  • Optical coatings: AR coating + beamsplitter film
  • Transmitted wavefront error: λ/4
  • Surface quality: 40/20
  • Beam deviation: transmission: 0° ± 5 arcmin; reflection: 90° ± 5 arcmin
  • Substrate: N-SF1

Applications

  • Laser polarization control and beam separation
  • Interferometry and polarimetry setups
  • Optical isolators and magneto-optic modulators
  • Polarization-sensitive imaging and spectroscopy
  • High-contrast laser systems requiring stable extinction
Optical component materialN-SF1
Size20.0 mm×20.0 mm×20.0 mm
Dimensional tolerance±0.25 mm
Clear Aperture>80% CA
Operating Wavelength620 nm-1000 nm
CoatingAR coating + beamsplitter film
Anti-reflective coatingRavg<0.5% (6°input face, per surface)
Spectroscopic filmTp>90%, Rs,avg >95%
Extinction ratio (Tp:Ts)>1000:1
Surface finish (scratches/pits)40/20
Transmitted Wavefront Error (TWE) (@633 nm)λ/4
Surface Flatness (@633 nm)λ/4
Exit angletransmission: 0° ± 5 arcmin; reflection: 90° ± 5 arcmin
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

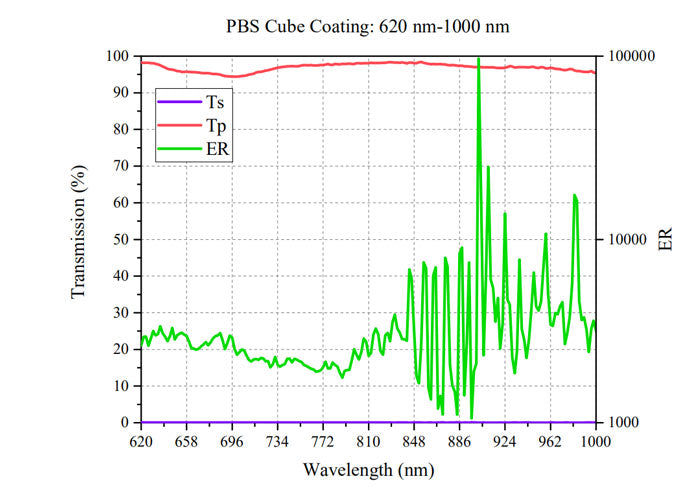

Curve 1
Curve 1

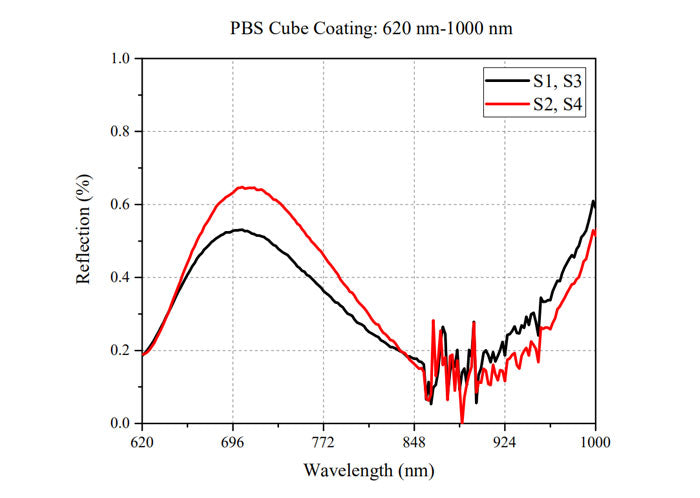

Curve 2
Curve 2

Product Family: Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm (8 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS642 PBS642 25.4 mm×25.4 mm×25.4 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS652 PBS652 50.8 mm×50.8 mm×50.8 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS632 PBS632 20.0 mm×20.0 mm×20.0 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS622 PBS622 12.7 mm×12.7 mm×12.7 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS612 PBS612 10.0 mm×10.0 mm×10.0 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS602 PBS602 5.0 mm×5.0 mm×5.0 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm MPBS642 MPBS642 25.4 mm×25.4 mm×25.4 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm MPBS632 Current MPBS632 20.0 mm×20.0 mm×20.0 mm >80% CA 620 nm-1000 nm
