Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS652

PBS652
$1,604.44
In Stock
Request Quote

Design Tools

LIDT Calculator Verify damage threshold for your laser parameters
View all 49 calculators →
RoHS REACH

Broadband PBS 620-1000 nm — Model PBS652

N-SF1, optimized for 620 nm-1000 nm, cube size 50.8 mm×50.8 mm×50.8 mm, extinction ratio >1000:1.

Overview

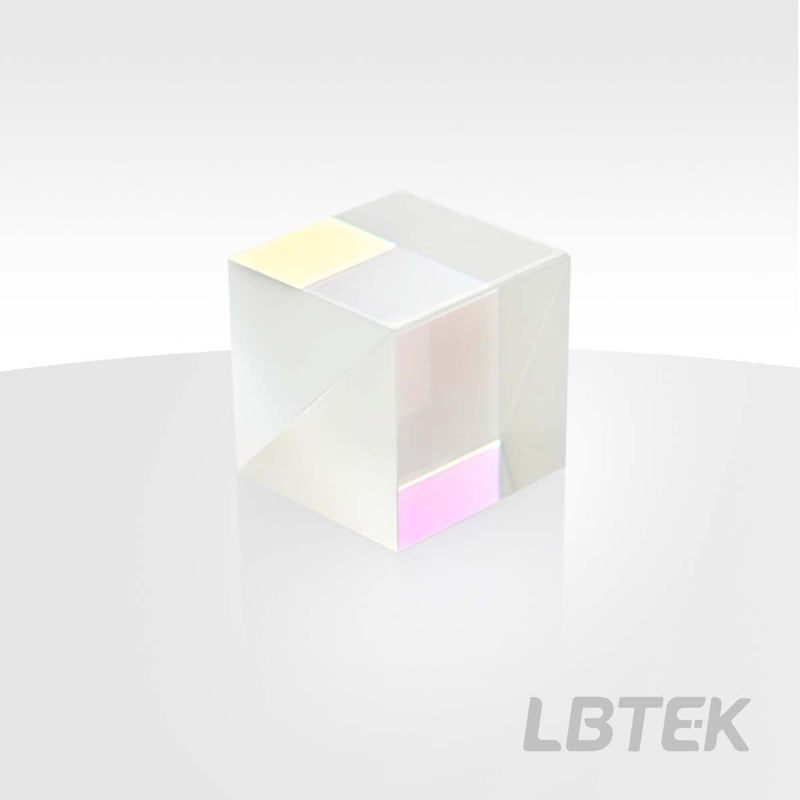

Unmounted broadband polarizing beamsplitter cube with AR coating (620nm-1000nm, Ravg<0.5%) on all four faces. One right-angle prism is coated on its hypotenuse with a beamsplitter film; the coated prism is marked with a pencil dot on its ground top face. For optimal optical performance, the input beam should enter normally on the right-angle face of the coated prism. LBTEK also offers cube-mount adapters (e.g., CM-3) that hold the 25.4 mm cube and provide compatibility with 30 mm cage systems.

Key Features

  • Extinction ratio (Tp:Ts) >1000:1
  • Spectroscopic film: Tp,avg>90%, Rs,avg >95%
  • AR coating: Ravg<0.5% (6°angle of incidence, per surface)
  • Optical coatings: AR coating + beamsplitter film
  • Transmitted wavefront error: λ/4
  • Surface quality: 40/20
  • Beam deviation: transmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin
  • Substrate: N-SF1

Applications

  • Laser polarization control and beam separation
  • Interferometry and polarimetry setups
  • Optical isolators and magneto-optic modulators
  • Polarization-sensitive imaging and spectroscopy
  • High-contrast laser systems requiring stable extinction
Optical component materialN-SF1
Size50.8 mm×50.8 mm×50.8 mm
Dimensional tolerance±0.25 mm
Clear Aperture80% CA
Operating Wavelength620 nm-1000 nm
CoatingAR coating + beamsplitter film
Anti-reflective coatingRavg<0.5% (6°angle of incidence, per surface)
Spectroscopic filmTp,avg>90%, Rs,avg >95%
Extinction ratio (Tp:Ts)>1000:1
Surface finish (scratches/pits)40/20
Transmitted Wavefront Error (TWE) (@633 nm)λ/4
Surface Flatness (@633 nm)λ/4
Exit angletransmission: 0°± 5 arcmin; reflection: 90°± 5 arcmin
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

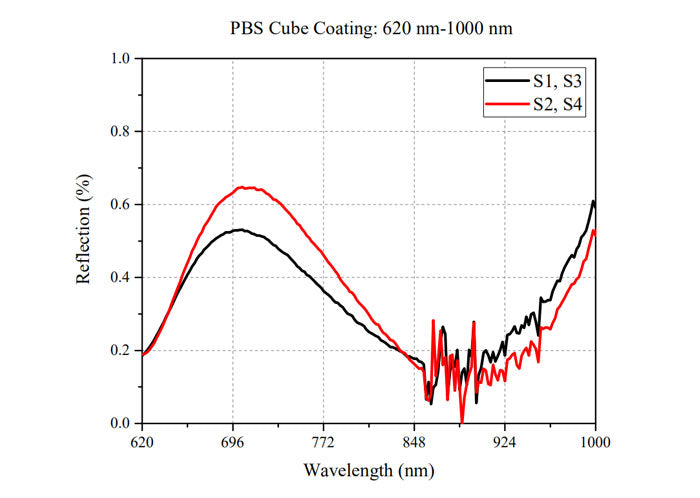

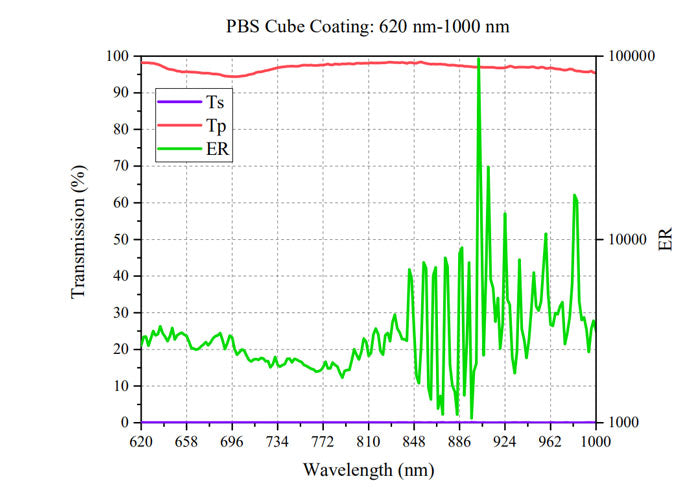

Curve 1
Curve 1
Curve 2
Curve 2

Product Family: Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm (8 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS642 PBS642 25.4 mm×25.4 mm×25.4 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS652 Current PBS652 50.8 mm×50.8 mm×50.8 mm 80% CA 620 nm-1000 nm
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS632 PBS632 20.0 mm×20.0 mm×20.0 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS622 PBS622 12.7 mm×12.7 mm×12.7 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS612 PBS612 10.0 mm×10.0 mm×10.0 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm PBS602 PBS602 5.0 mm×5.0 mm×5.0 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm MPBS642 MPBS642 25.4 mm×25.4 mm×25.4 mm 80% CA 620 nm-1000 nm View
Broadband Polarizing Beamsplitter Cubes, AR Coating: 620 nm-1000 nm MPBS632 MPBS632 20.0 mm×20.0 mm×20.0 mm >80% CA 620 nm-1000 nm View
