Centering Plates — Model FCP1
✔ In Stock — Ships Today

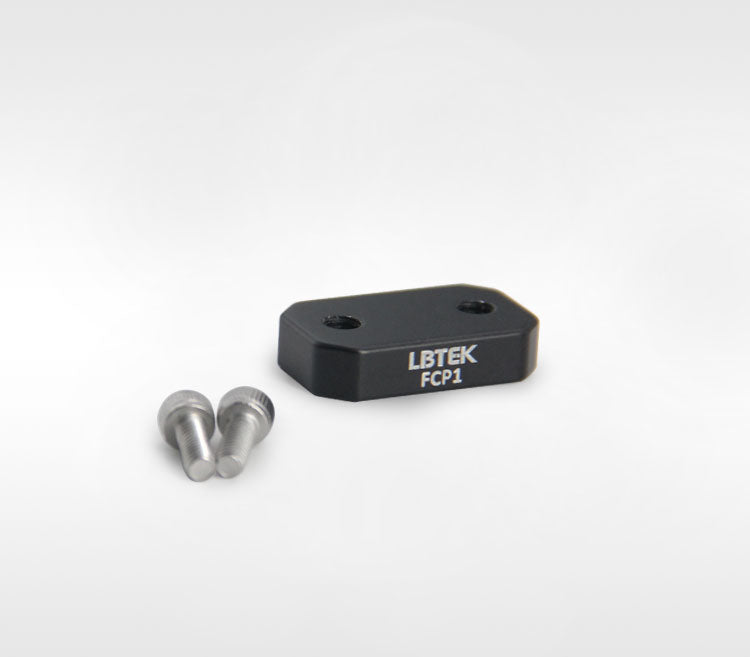

LBTEK Fixed Centering Plate FCP1 is with two M4 threaded holes. One can be mounted on a Ø1/2-inch post, and the other threaded hole allows the optical mount to be installed on the centering plate, positioning the mirror surface at the center of the post's rotation axis. Includes 2 M4×10 hex socket head cap screws.
Key Features
- Two M4 threaded holes
- Compatible with AMM-1B standard O-type dual-axis optical mount
- Screws included
Application
Fixed Centering Plate Installation
| Material | 6061-T6 aluminum alloy |
| Compatibility | M4 |
| Surface Treatment | Black anodized |
| Centering plate thickness | 5.85 mm |
| Attribute 1064 | 25 mm |
| Applicable Adjustment Bracket Model | AMM-1B |
| Installation Method | 14.8 mm |
| Hex Key Wrenches Included | M4×10 Hex Socket Head Cap Screw |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Centering Plates (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Centering Plates VCP |
VCP
| — | — | — | View |
| Centering Plates FCP1 Current |
FCP1
| — | — | — |
