Centering Plates — Model VCP
✔ In Stock — Ships Today

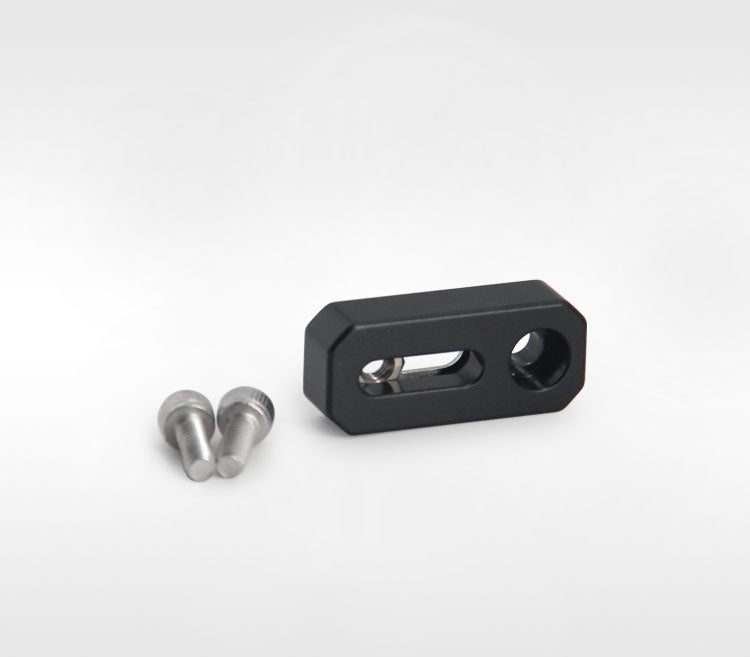

The LBTEK Variable Centering Plate features an oblong slot with a movable M4 nut and an M4 countersunk hole. When connecting to the mount, the layout can be adjusted according to the type of mounting holes on the mount. The distance between the center of the M4 nut and the countersunk hole is adjustable from 11 mm to 21 mm, ensuring the mirror surface is aligned with the rotation axis of the connecting post. Includes 2 M4X10 hex socket head cap screws.
Key Features
- 1 M4 countersunk hole, one removable M4 nut
- Compatible with AMM and AMM3 series mounts
- Adjustable center distance range: 11 mm to 21 mm
Application
Variable Centering Plates Installation
| Material | 6061-T6 aluminum alloy |
| Attribute 1066 | M4 nut + M4 countersunk hole |
| Centering plate thickness | 9.0 mm |
| Surface Treatment | Black anodized |
| Positioning range | 11 mm~21 mm |
| Hex Key Wrenches Included | M4×10 Hex Socket Head Cap Screw |
| Applicable Adjustment Bracket Model | AMM, AMM3 Series |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Centering Plates (2 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Centering Plates VCP Current |
VCP
| — | — | — | |
| Centering Plates FCP1 |
FCP1
| — | — | — | View |
