Coaxial system Ø4 mm mounting rod MOP16-40
MOP16-40$7.63
In Stock
Key Specifications
Diameter
4.0mm
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

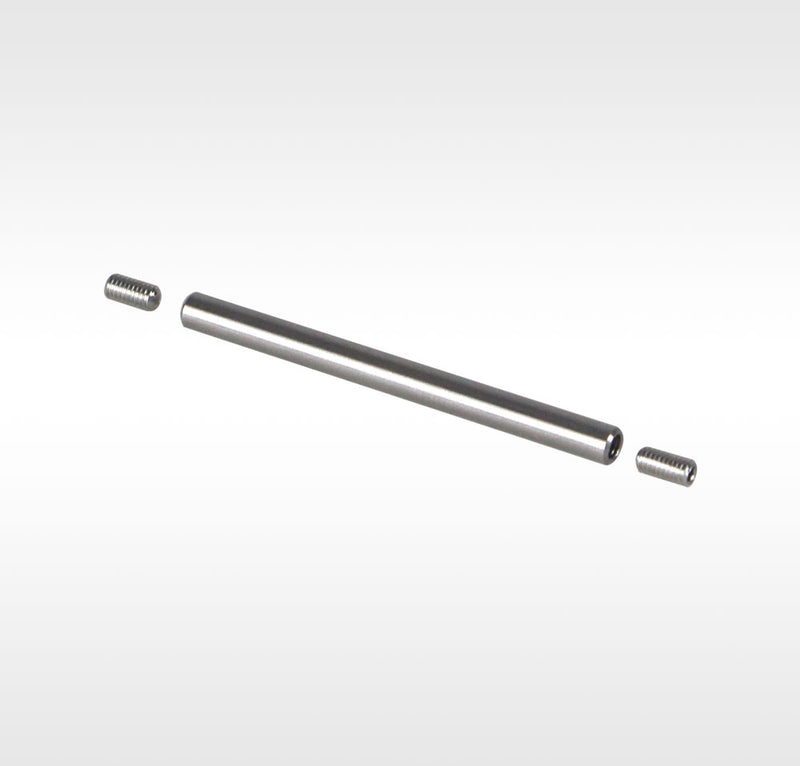

Coaxial system Ø4 mm mounting rod — Model MOP16-40
✔ In Stock — Ships Today
The LBTEK coaxial system mounting rods are made of stainless steel with a diameter of Ø4 mm, compatible with 16 mm coaxial systems. Multiple length options from 6.5 mm to 200 mm are available. Both ends feature M3 cup-point set screws, suitable for tightening or disassembling with a 1.5 mm hex wrench. Multiple rods can be connected in series to extend the length. The 100 mm and 150 mm versions are offered in both plain rod and graduated (-E) variants, while other lengths can be custom engraved. For specific requirements, please contact LBTEK for technical support.
Key Features
- Length: 6.5 mm-200 mm
- Both ends come with M3 cup point set screws
- Two options available: with/without graduation lines
Application
In the coaxial system, installation diagram of the connecting rod and coaxial plate
| Diameter | 4.0 mm |
