Coaxial system Ø4 mm mounting rod MOP16-RC
MOP16-RC$56.72
In Stock
Key Specifications
Diameter
4.0mm
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Coaxial system Ø4 mm mounting rod — Model MOP16-RC
✔ In Stock — Ships Today

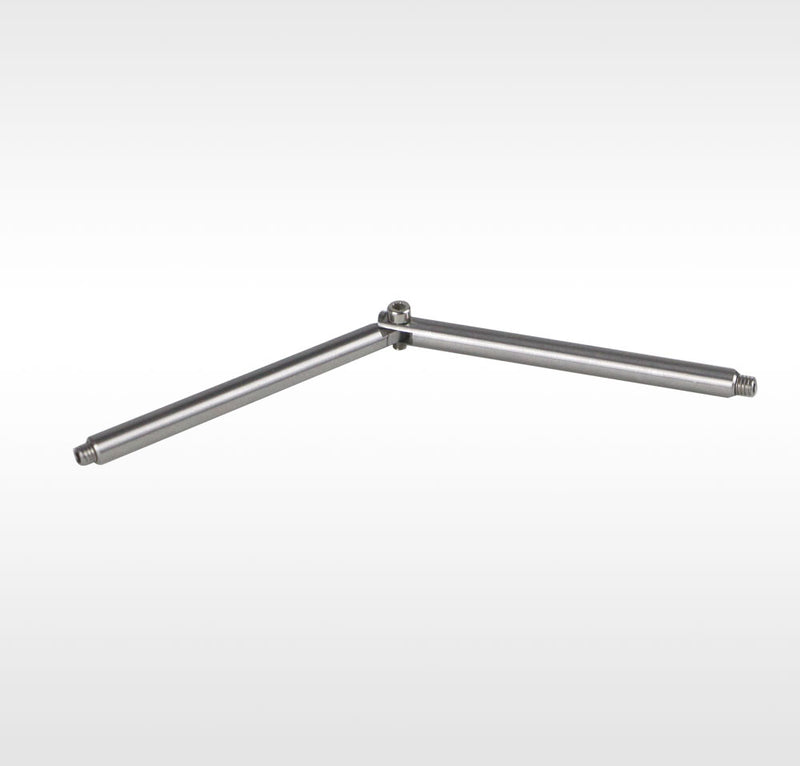

The LBTEK Ø4 mm coaxial system rotating rod is made of stainless steel with a diameter of Ø4 mm, compatible with 16 mm coaxial systems. Two specially designed rods are connected by M2 screws, allowing 180° rotation. When rotated to the target position, a 2 mm hex wrench can be used to adjust and lock it. In the straight rod state, the total length of the rod is 94 mm. Both ends of the rod feature M3 threaded holes for expanding with rods of other specifications.
Key Features
- Rotation range 180°
- Rotatable angle can be locked
- Both ends come with M3 concave set screws
Application
Application diagram in coaxial system
| Diameter | 4.0 mm |
| Surface Count | 4 pieces |
| Rotation angle | 180° |
| Material | 303 Stainless Steel |
| Double-ended screw specification | M3×6 Flat Point Set Screw |
