Coaxial system vertical mounting plate — Model CADV-02
✔ In Stock — Ships Today

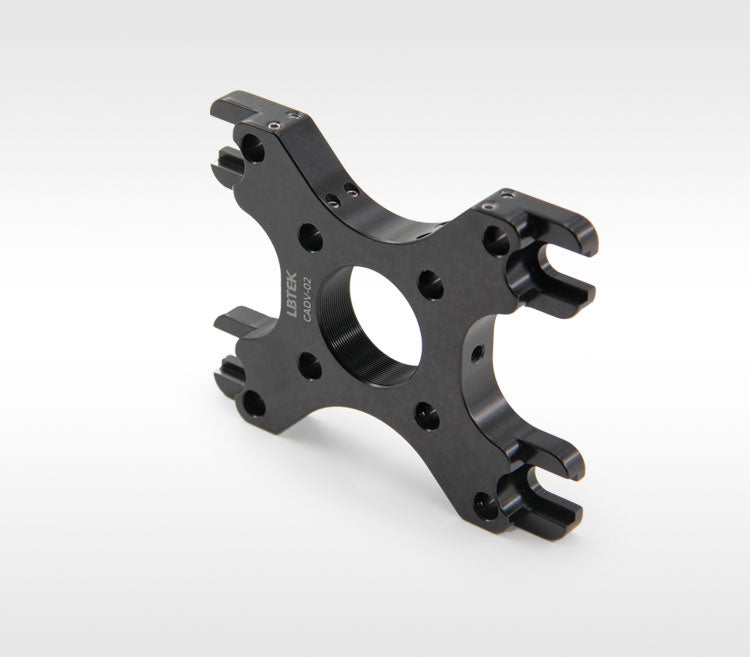

The LBTEK vertical mounting plate allows for vertical installation of 30mm/60mm coaxial systems on optical tables/breadboards. Featuring a U-shaped countersunk slot design, it can be securely mounted vertically on optical tables/breadboards. The plate includes 8 through holes for mounting Ø6mm optical posts, with an SM1 mounting hole at the center that is compatible with SM1-threaded optomechanical components. The side M4 threaded holes can be used to connect optical posts.
Key Features
- Material: Material: 6061-T6 aluminum alloy
- Compatible with 30mm and 60mm coaxial systems
Application
Vertical installation method
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Coaxial system vertical mounting plate (1 variants)
