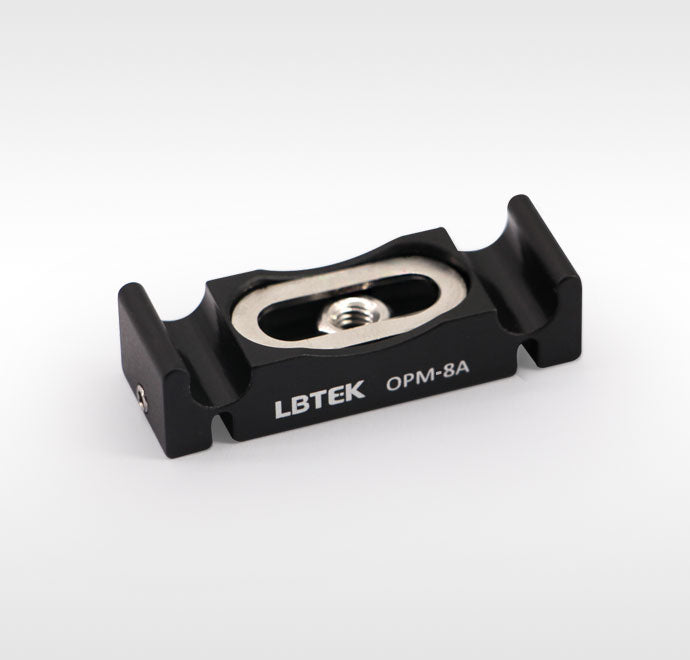

Snap-in 30 mm coaxial system mounting bracket — Model OPM-8A
✔ In Stock — Ships Today
The 30 mm coaxial rod mounting bracket provided by LBTEK is suitable for supporting pre-assembled coaxial systems (subsystems), allowing the rod to be clamped into the bracket without disassembling the coaxial system. Side set screws are used to secure the rod. The flexible structural design ensures stable clamping. The OPM-8A features a movable M4 nut in the middle, with an off-axis adjustment range of ±5 mm.
Key Features
- Material: 6061-T6 aluminum alloy
- Compatible with 30 mm coaxial systems
- For ease of disassemble and install
- Off-axis adjustment range ±5 mm
Application
The OPM-8A is installed in a coaxial system.
| Material | 6061-T6 Aluminum Alloy |
| Surface Treatment | Black anodized |
| Material | 30 mm |
| Off-axis adjustment range | ±5 mm |
| Attribute 1423 | M4 |
