Elliptical Optical Mount RAMC-2BE

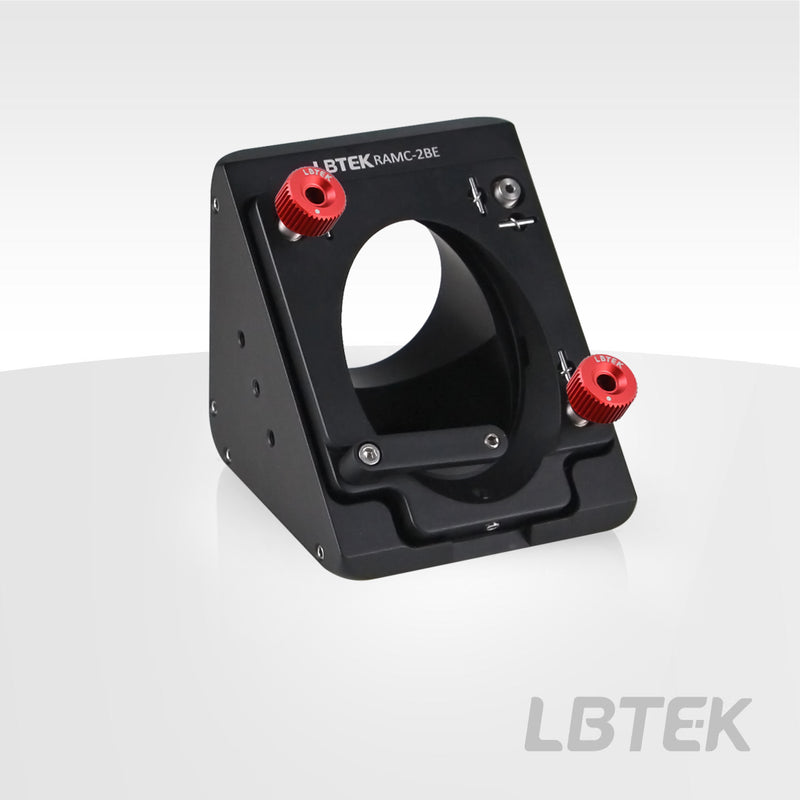

The LBTEK Coaxial System Right-Angle Mount is designed for 45° elliptical mirrors, compatible with 60 mm coaxial systems and suitable for compact system integration. The mount features SM2 tapped holes on both input and output end faces, compatible with SM2 lens tubes. Its bevel accommodates elliptical optical components (major axis 71.8 mm, minor axis 50.8 mm, thickness 12 mm).The optical component is secured by side rubber-tipped set screws and an arm-mounted rubber-tipped screw (screw penetration depth adjustable for component thickness). Three integrated adjusters provide ±3° pitch and yaw adjustment and ±3 mm linear translation. The end faces are perpendicular with smooth bores, compatible with Ø6 mm coaxial posts. Side-mounted M6 and M4 tapped holes enable mounting onto optical posts.
