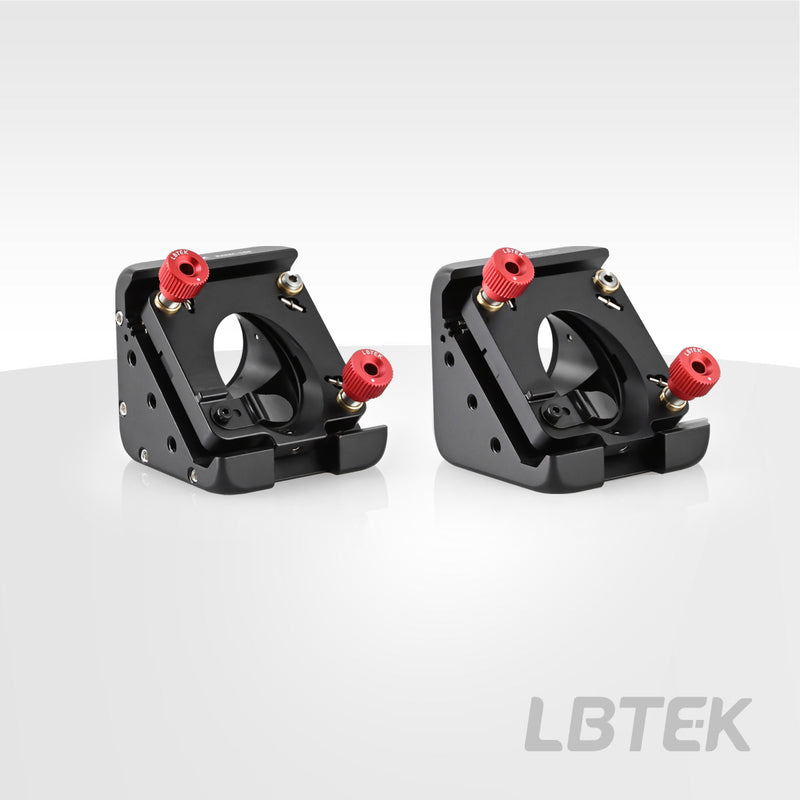

Elliptical Optical Mount — Model RAMC-1AE
✔ In Stock — Ships Today
The LBTEK Coaxial System Right-Angle Mirror Mount is designed for 45° elliptical mirrors, compatible with 30 mm coaxial systems and suitable for compact system integration. The mount features SM1 tapped holes on both input and output end faces, compatible with Ø25.4 mm lens tubes. Its bevel accommodates elliptical optical components (major axis 35.9 mm, minor axis 25.4 mm, thickness 6 mm). Optical components are secured by spring-loaded set screws (screw penetration depth adjustable for component thickness). Three integrated adjusters provide ±4º pitch/yaw adjustment and ±2.5 mm linear displacement. The end faces are perpendicular, compatible with Ø6 mm coaxial rods, available in smooth bores or threaded holes configurations.
Key Features
- Applicable to elliptical optical components with a major axis of 35.9 mm and a minor axis of 25.4 mm
- Providing ±4º pitch and yaw adjustment, with linear displacement of ±2.5 mm
- Compatible with 30 mm coaxial systems, optional input and output end faces with tapped holes/smooth bores
Application
Tapped Hole (left) and Smooth Bore (right) for Coaxial Rod
No specifications available for this product.
No documents available for this product.
No CAD drawings available for this product.
