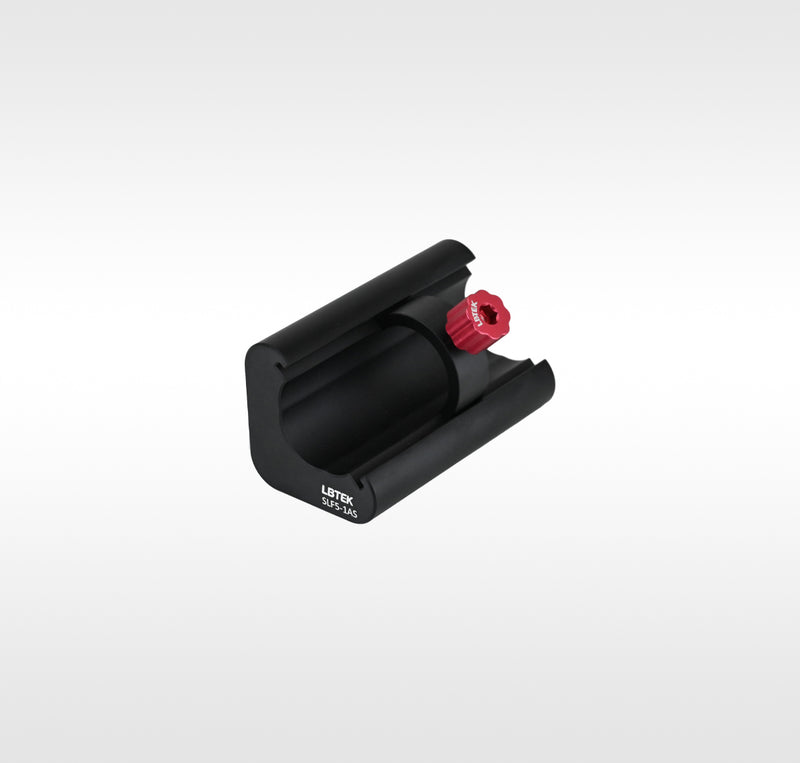

Fiber Alignment and Coupling Stages SLF5-1AS
SLF5-1AS$189.34
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Fiber Alignment and Coupling Stages SLF5-1AS from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today
The LBTEK positioner mounts is designed to be compatible with single-mode fiber positioners, allowing direct installation of Ø25.4 mm optical components onto the SLF5. It features two M4 threaded holes along the optical path for connection to the fiber positioner, plus two orthogonally distributed M4 threaded holes enabling left/right-handed assembly. The three-point fixation design between the base and optical component allows positional adjustment via hand-tightened screws. Includes one 3.0 mm hex key and two M4×30 socket head cap screws.
Key Features
- Install Ø25.4 mm optical element
- Optical element position adjustable
- Hand-tightened screws secure optical element
Application
SLF5-1AS is installed on SLF5
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Weight | 0.19 kg |
| Attribute 2650 | 3.0 mm hex key/1 pc, M4×30 socket head cap screw/2 pcs |
| Mounting Hole Specifications/Quantity | M4 threaded hole/2 pcs |
| Attribute 2648 | Hand-tightened screw locking |
| Applicable optical element diameter | Ø25.4 mm |
No CAD drawings available for this product.
Product Family: Fiber Alignment and Coupling Stages (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fiber Alignment and Coupling Stages SLF5-FPC |
SLF5-FPC
| — | — | — | View |
| Fiber Alignment and Coupling Stages SLF5-1AS Current |
SLF5-1AS
| — | — | — | |
| Fiber Alignment and Coupling Stages SLF5 |
SLF5
| — | — | — | View |
