Fiber Optic Flange CE-FPC2
CE-FPC2$36.29
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

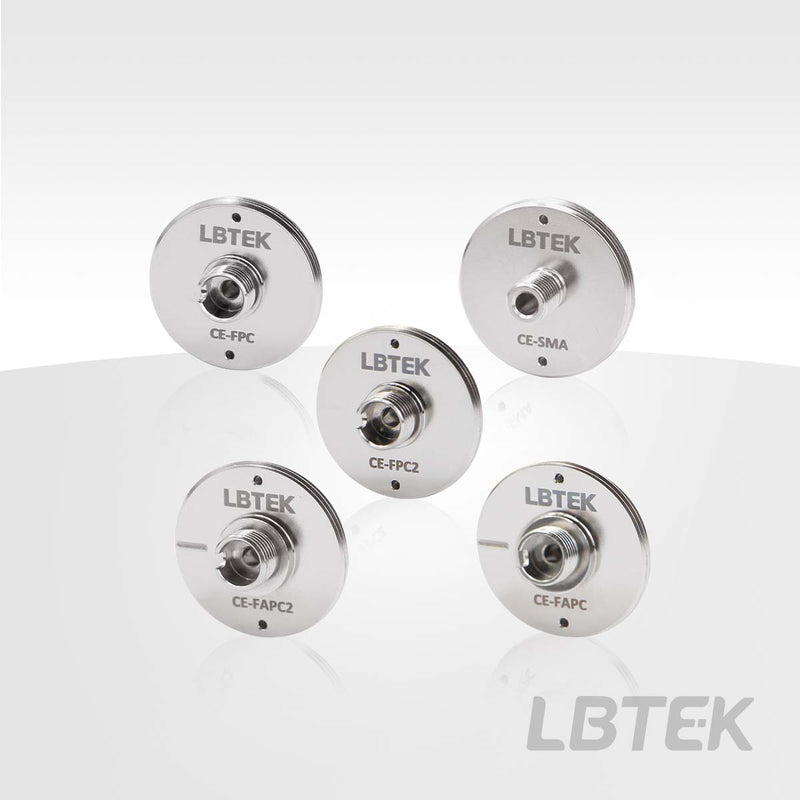

The LBTEK C-Mount series fiber optic flange allows the connection of terminated fibers to components or cameras with C-Mount internal threads. The C-Mount external thread series features light-blocking recessed holes on both sides, enabling installation from either direction using the retaining ring wrench OWR-1B. LBTEK offers custom services for special requirements including different materials, dimensions, and surface treatments. For customization needs, please contact technical support.
- C-Mount External Thread Adapter with FC/PC (Narrow Key or Wide Key), FC/APC (Narrow Key or Wide Key) or SMA Interface
- Light-Tight Structure
- Compatible with CMOS Cameras
| Connector Type | FC/PC, Narrow Key (2 mm) |
| Thread specification | C-Mount External Thread |
| Material | 304 Stainless Steel |
| Surface treatment | Electromagnetic Demagnetization Treatment (Note: Weak Magnetic Force Remains After Demagnetization) |
No documents available for this product.
No CAD drawings available for this product.
