Fiber Optic Flange SM1-FAPC2

SM1-FAPC2
$69.84
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

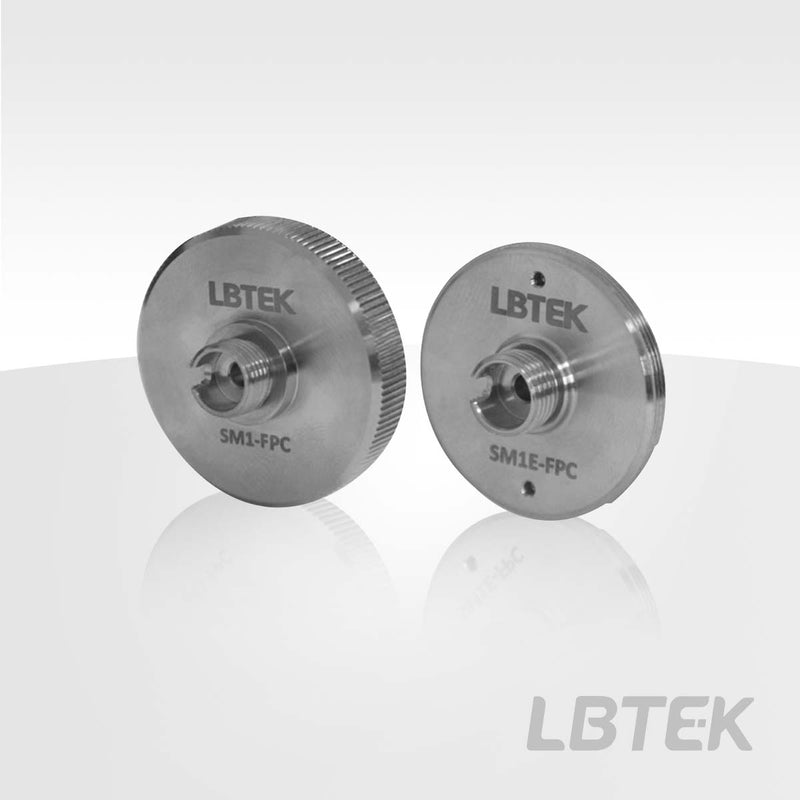

LBTEK’s SM1 series fiber optic flanges are designed for integration into a 30 mm coaxial system using a compatible 30 mm coaxial mounting plate or lens tube. The SM1E series with external threads features dual non-transparent concave surfaces, allowing for tool-free installation from either side with the use of a specialized ring tool, such as the OWR-1B. The SM1 series with internal threads has a knurled outer edge for convenient hand-tightening during installation.

  • SM1 Internal/External Threaded Adapter with FC/PC, FC/APC, SMA Ports
  • Compatible with SM1 Series Lens Tubes to Achieve Light-Shielding Structure
  • Compatible with Various 30 mm Coaxial Plates
Specifications diagram
Connector Type FC/APC, Narrow Key (2 mm)
Thread specification SM1 Internal Thread
Material 304 Stainless Steel
Surface treatment Electromagnetic Demagnetization Treatment (Note: Weak Magnetic Force Remains After Demagnetization)
Lead Time: 0.0 week0.0s
No CAD drawings available for this product.
