Fiber Optic Flange SM05-FPC

SM05-FPC
$57.38
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

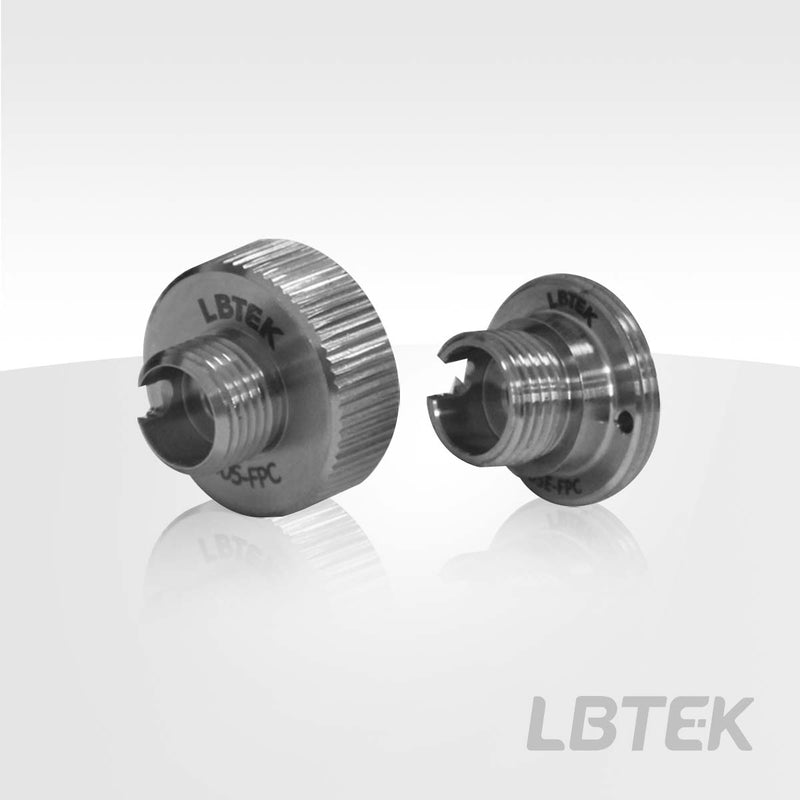

The LBTEK SM05 series fiber optic flange features an SM05E external thread series with light-blocking recessed holes on both sides, allowing installation from either direction using a snap ring wrench. The SM05 internal thread series has a hand-tightened knurled outer edge for convenient manual installation.

  • SM05 Internal/External Threaded Adapter with FC/PC, FC/APC, SMA Ports
  • Compatible with SM05 Series Lens Tubes to Achieve Light-Shielding Structure
Specifications diagram
Connector Type FC/PC, Wide Key (2.2 mm)
Thread specification SM05 Internal Thread
Material 304 Stainless Steel
Surface treatment Electromagnetic Demagnetization Treatment (Note: Weak Magnetic Force Remains After Demagnetization)
Lead Time: 0.0 week0.0s
No CAD drawings available for this product.
