Fiber Optic Mating Sleeves/Connectors LSB4-F
LSB4-F$66.92
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

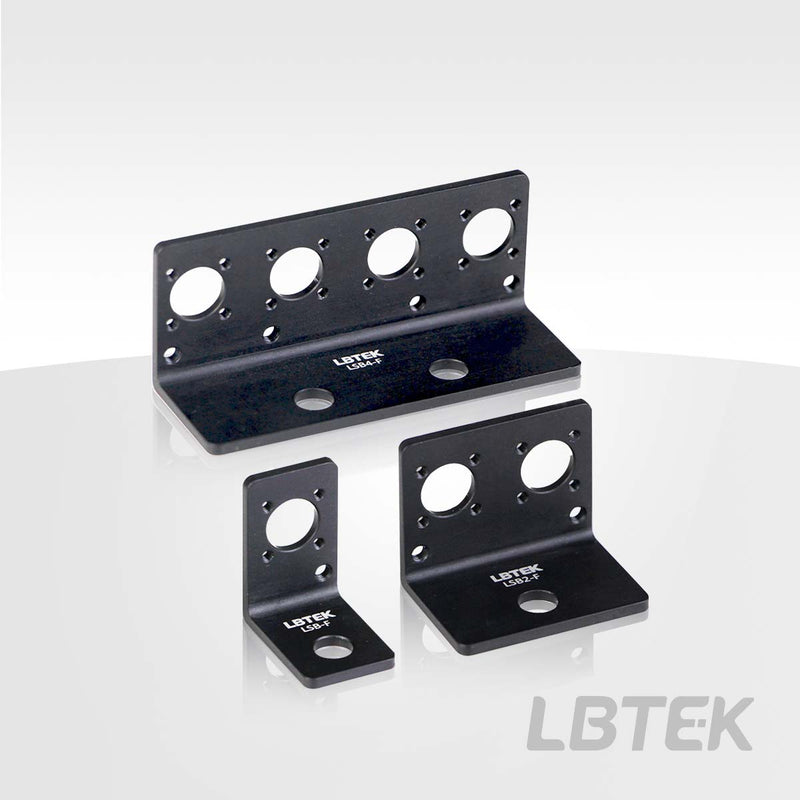

LBTEK Fiber Optic L-Shaped Bracket, featuring a Ø9.5 mm through hole and M2 threaded hole for mounting square flange-type mating connectors. The bottom surface includes a Ø6.6 mm through hole, allowing the bracket to be installed on an optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole configurations, it enables organized arrangement of fiber optic interconnect tools with multiple inputs or outputs, reducing clutter and confusion. Includes complimentary M6×16 cap screws, M6 flat washers, and M2×5 mounting screws.
- Material: 6061-T6 Aluminum Alloy
- Surface Treatment: Black Anodized
- Available in Single-Hole, Double-Hole, and Quad-Hole L-shaped Brackets
- Mounting Square Flange Type Fiber Optic Adapters
| Mounting count | 4 |
| Dimensions | 25×17×69 mm |
| Material | 6061-T6 aluminum alloy |
| Surface treatment | Black anodized |
| weight | 19.2 g |
| Mounting Hole Specifications/Quantity | Ø6.6 mm/2 pcs |
No CAD drawings available for this product.
