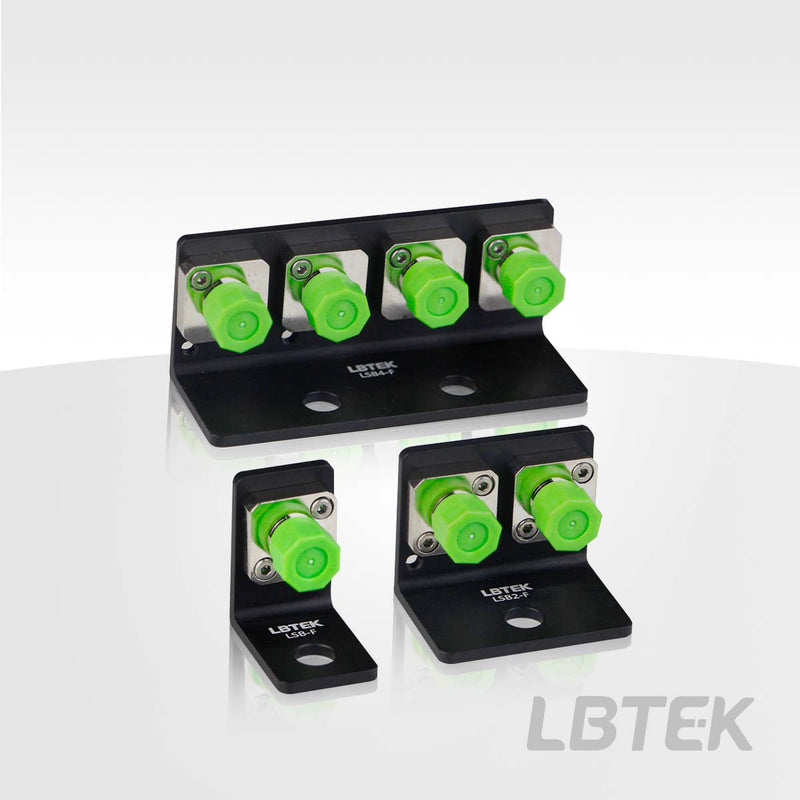

Fiber Optic Mating Sleeves/Connectors LSB4-F-FAPC-FAPC-2

LBTEK Fiber Optic L-Bracket, comes with OFA-AFC-AD fiber adapter, FC/APC-FC/APC mating sleeve, narrow key (2.0 mm), with a Ø6.6 mm through hole on the bottom, allowing the bracket to be mounted on an optical table or breadboard using M6 hex socket head cap screws. Available in single-hole, double-hole, and quad-hole configurations, enabling the organization of fiber mating connectors with multiple input or output ports as needed, reducing clutter and confusion. Includes complimentary M6×16 cap screws, M6 flat washers, and M2×5 mounting screws.

• Adapter Type Included: FC/APC to FC/APC, Square Flange
• 2.0 mm Narrow Keyway Matching Sleeve
• Single-Hole, Double-Hole, and Quad-Hole Brackets Available
