Five-axis fiber optic coupler and accessories FP5-F2P-B

FP5-F2P-B
$729.46
In Stock
Request Quote

Design Tools

Photonics Calculators Explore 49 free online calculators for photonics design Unit Converters Convert between wavelength, frequency, power, and more
View all 49 calculators →

Complete Your Setup

Lasers & Sources Detectors & Measurement Optomechanics Lenses
RoHS REACH

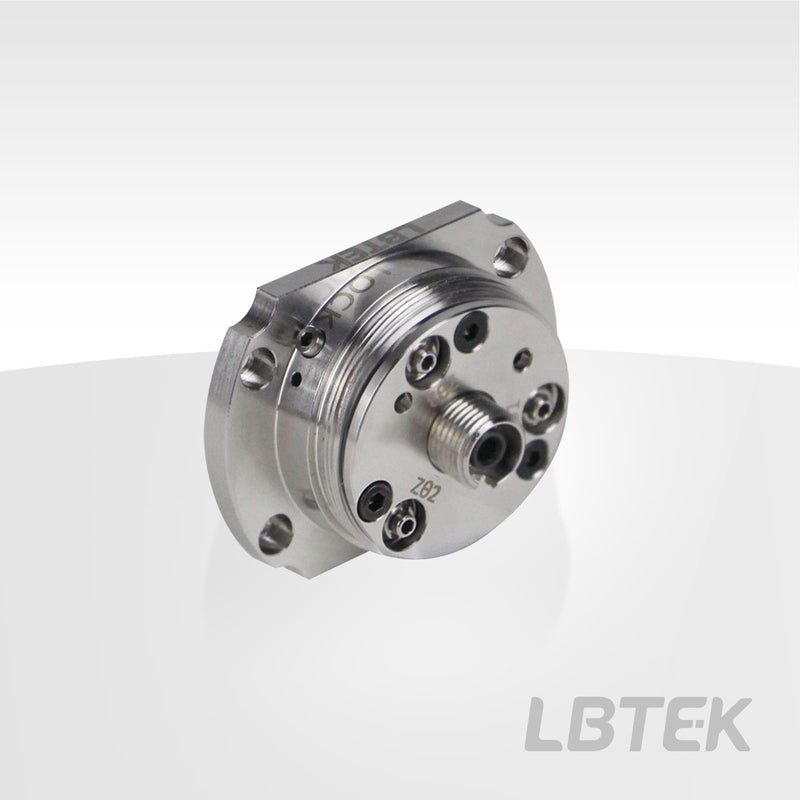

LBTEK's 2.0 mm focal length aspheric lens five-axis fiber coupler/collimator offers three coating options (A/B/C), covering wavelengths from 350-1700 nm. While keeping the connector and fiber stationary, the built-in lens provides five degrees of alignment freedom: linear alignment in X and Y directions, pitch and yaw angular alignment, and simultaneous pitch and yaw adjustment for Z-axis alignment. The aspheric lens has a travel range of ±0.7 mm in X and Y directions with a resolution of 317 µm per revolution. The Z-direction travel range is ±1.0 mm with a resolution of 200 µm per revolution. Additionally, loosening the three flat-head screws on the front panel allows rotation of the connector for polarization-maintaining fiber alignment. After alignment is completed, tighten the locking screws on the side of the housing to secure the X and Y positions. The lock ring on the Zθ adjuster can lock the pitch/yaw position.
  • Focal Length: 2.0 mm
  • Interface Type: FC/APC, FC/PC, SMA
  • Coating Type: A-coating, B-coating, C-coating
  • Applicable to Single-mode Fiber
Specifications diagram

No specifications available for this product.

Specification Sheet PDF — Download
CAD Drawing Download

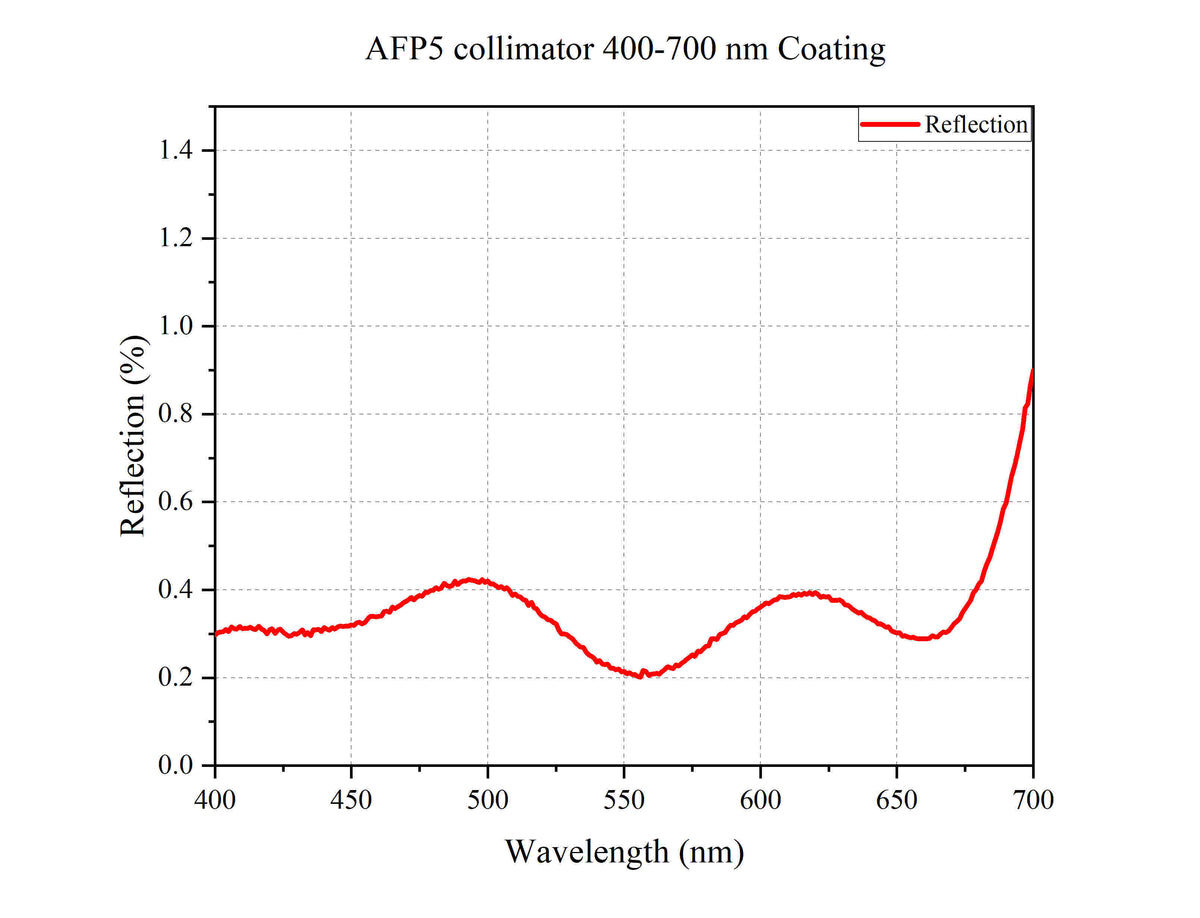

Curve - AFP5 collimator 400-700 nm Coating
Curve - AFP5 collimator 400-700 nm Coating

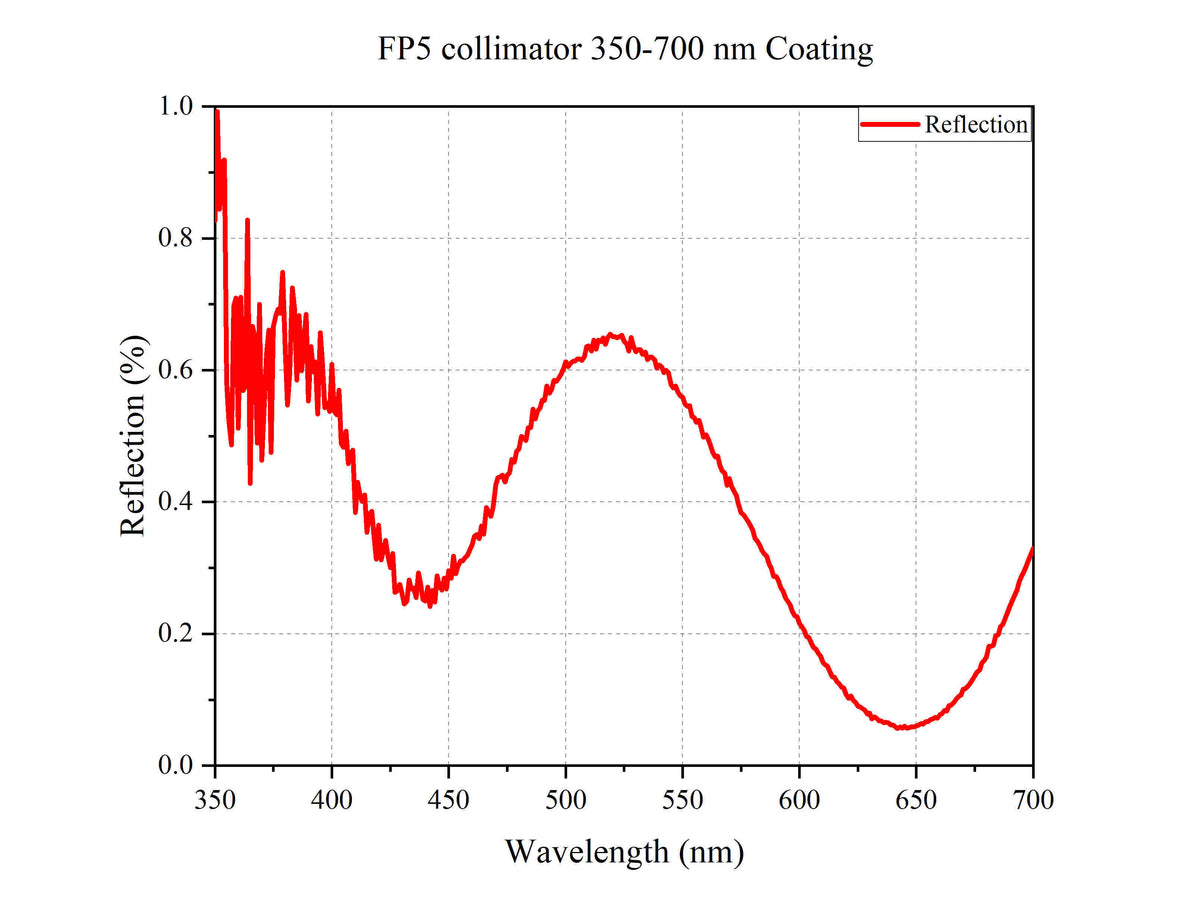

Curve - FP5 collimator 400-700 Coating
Curve - FP5 collimator 400-700 Coating

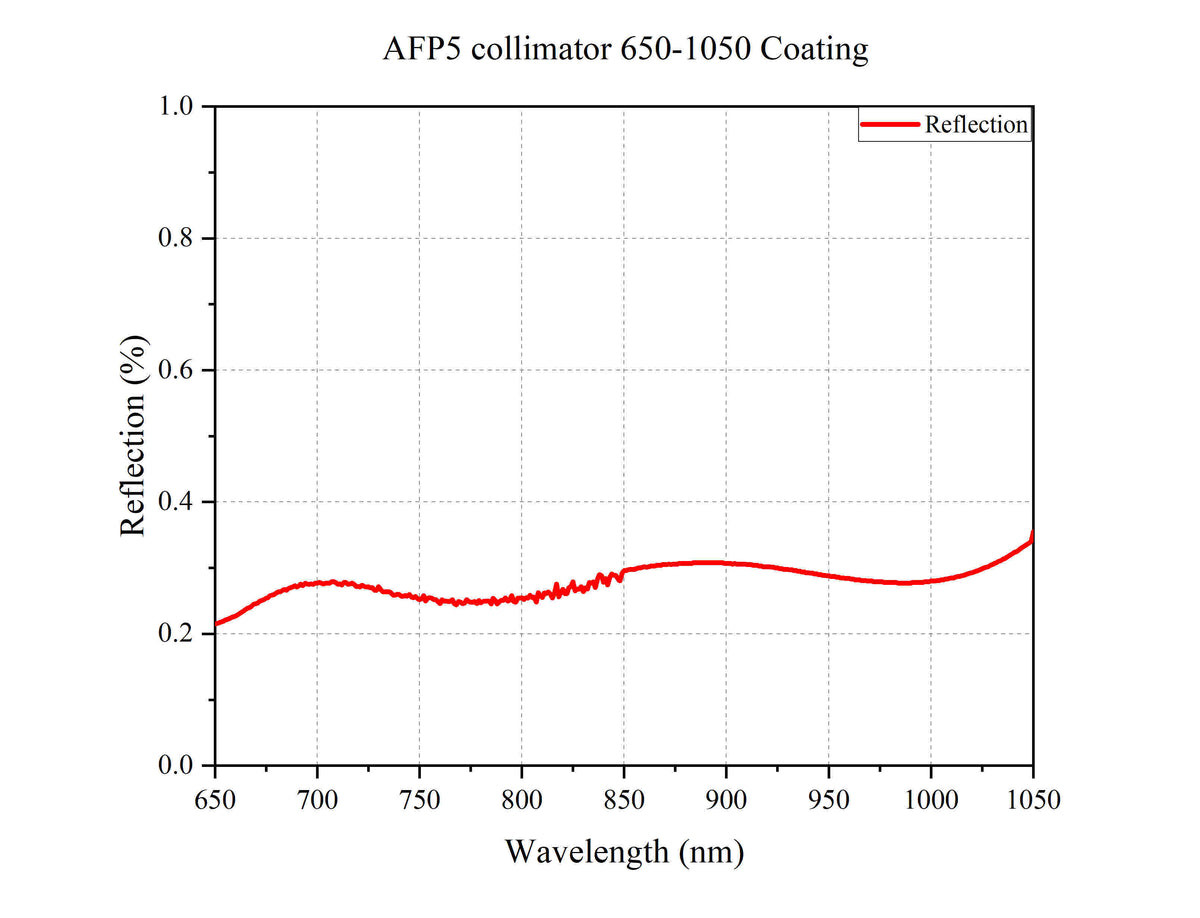

Curve - AFP5 collimator 650-1050 Coating
Curve - AFP5 collimator 650-1050 Coating

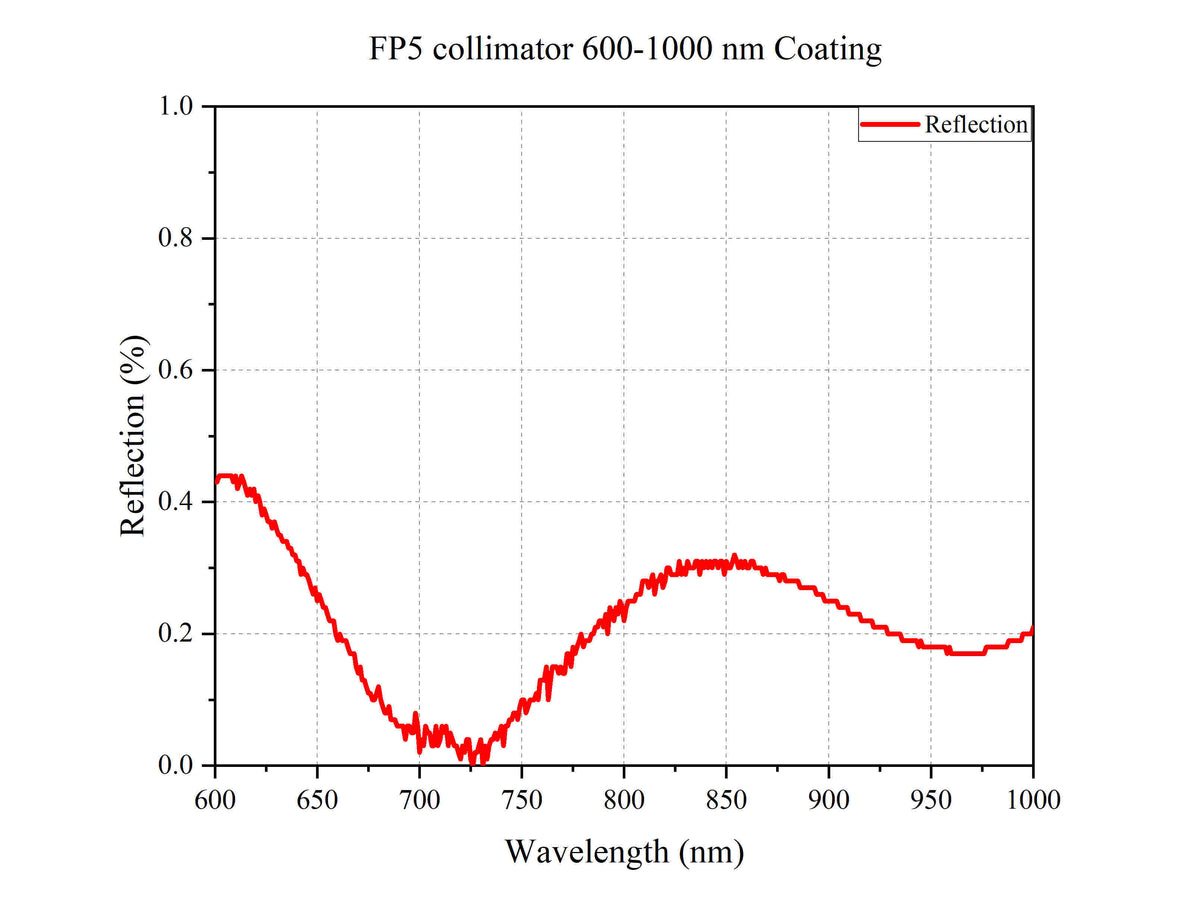

Curve - FP5 collimator 700-1100 Coating
Curve - FP5 collimator 700-1100 Coating

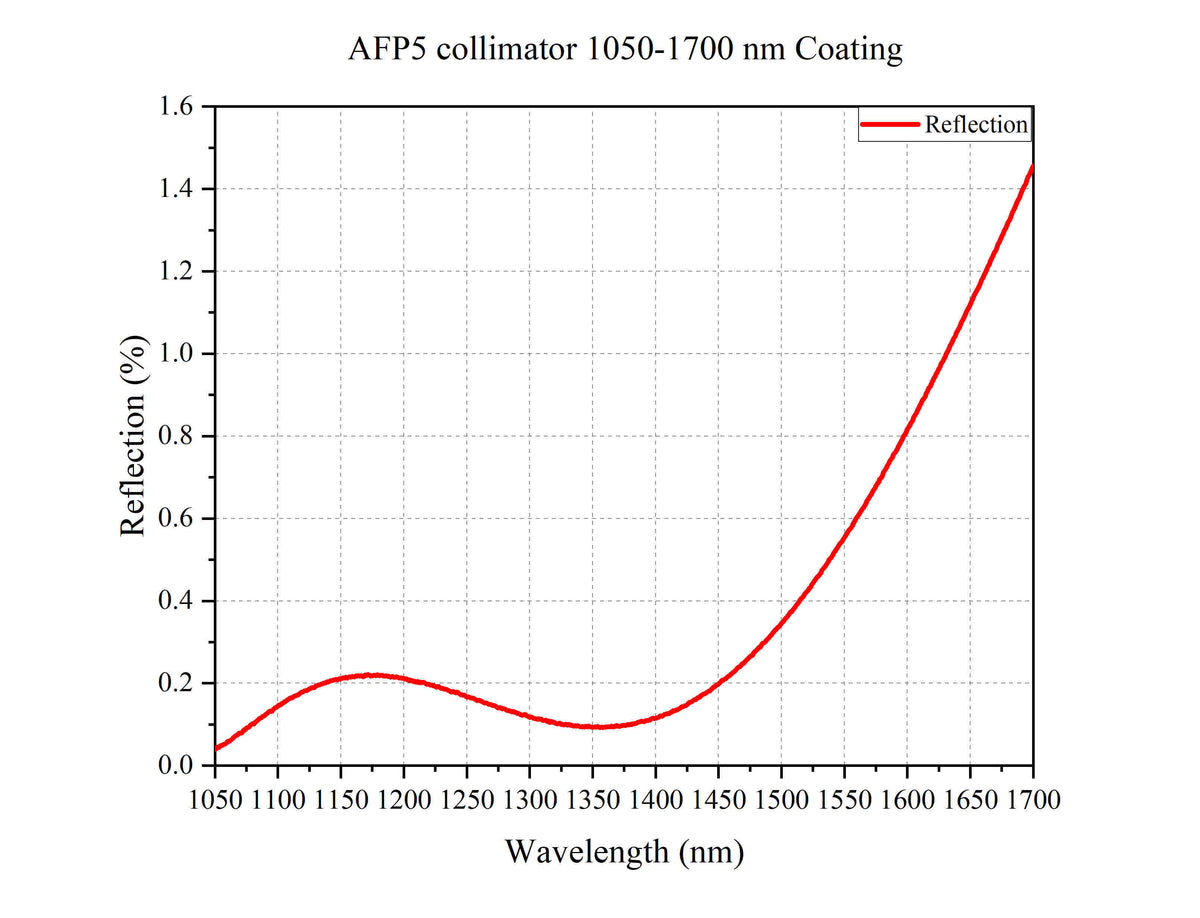

Curve - AFP5 collimator 1050-1700 Coating
Curve - AFP5 collimator 1050-1700 Coating

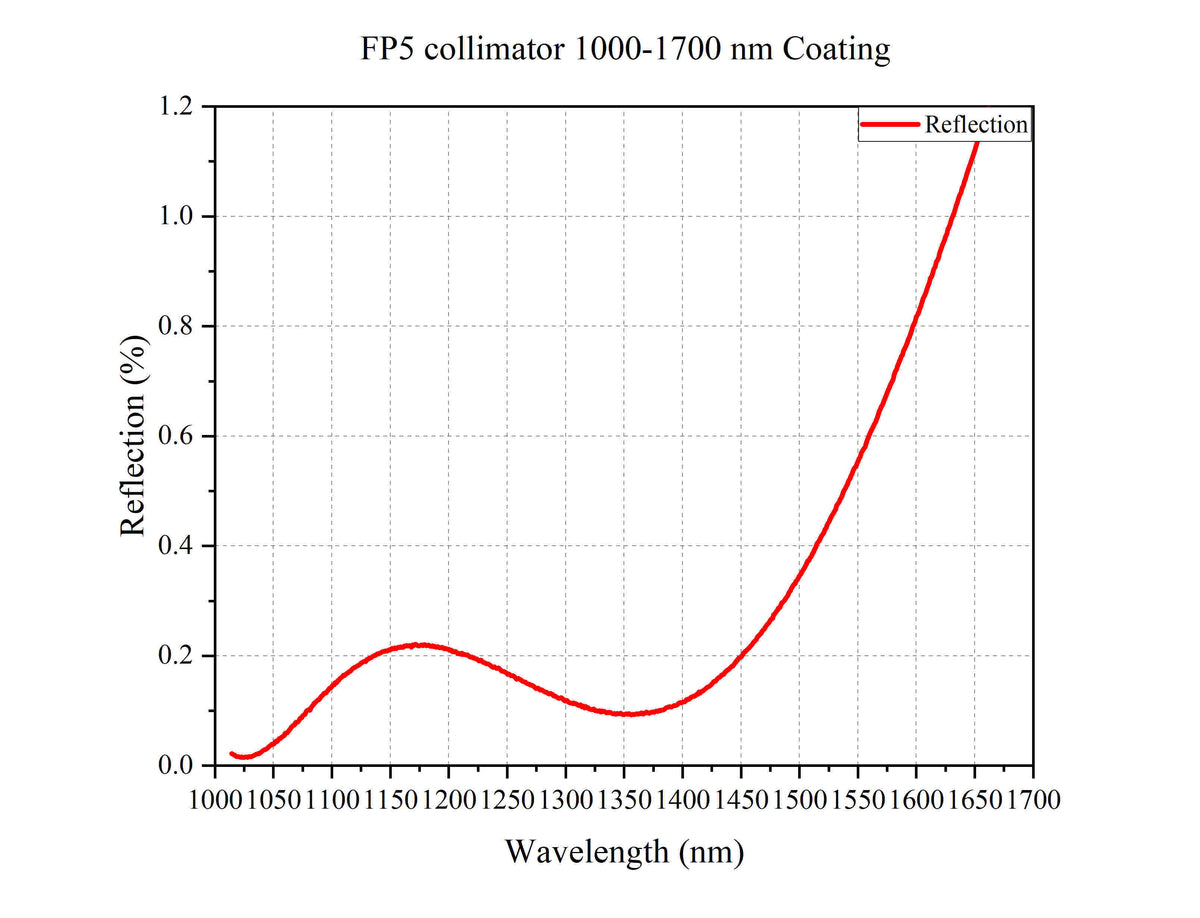

Curve - FP5 collimator 1100-1650 Coating
Curve - FP5 collimator 1100-1650 Coating

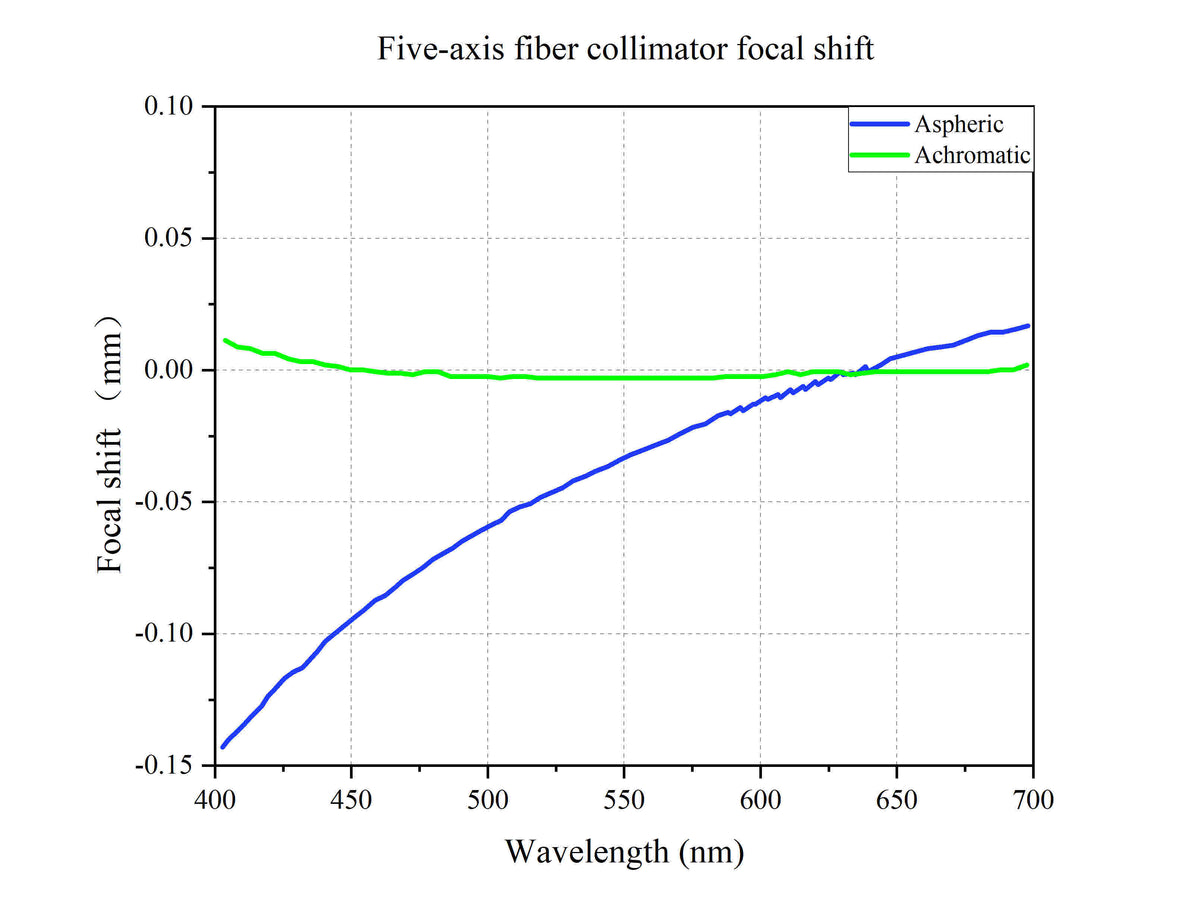

Curve - Five-axis fiber collimator focal shift
Curve - Five-axis fiber collimator focal shift

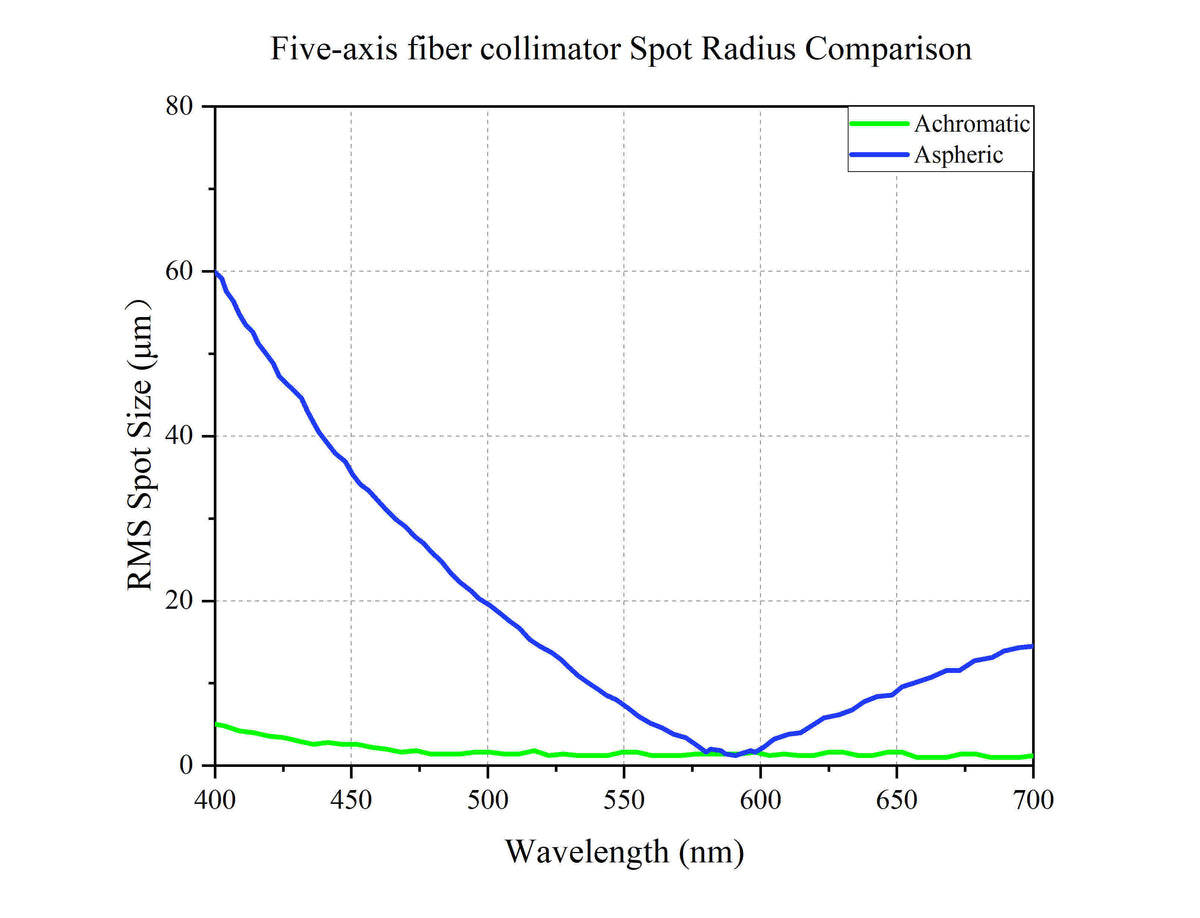

Curve - Five-axis fiber collimator Spot Radius Comparison
Curve - Five-axis fiber collimator Spot Radius Comparison
