High Precision Rotatable Focus-Adjustable Collimator PRADFCD-X-1
PRADFCD-X-1$33.56
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
Complete Your Setup
RoHS
REACH

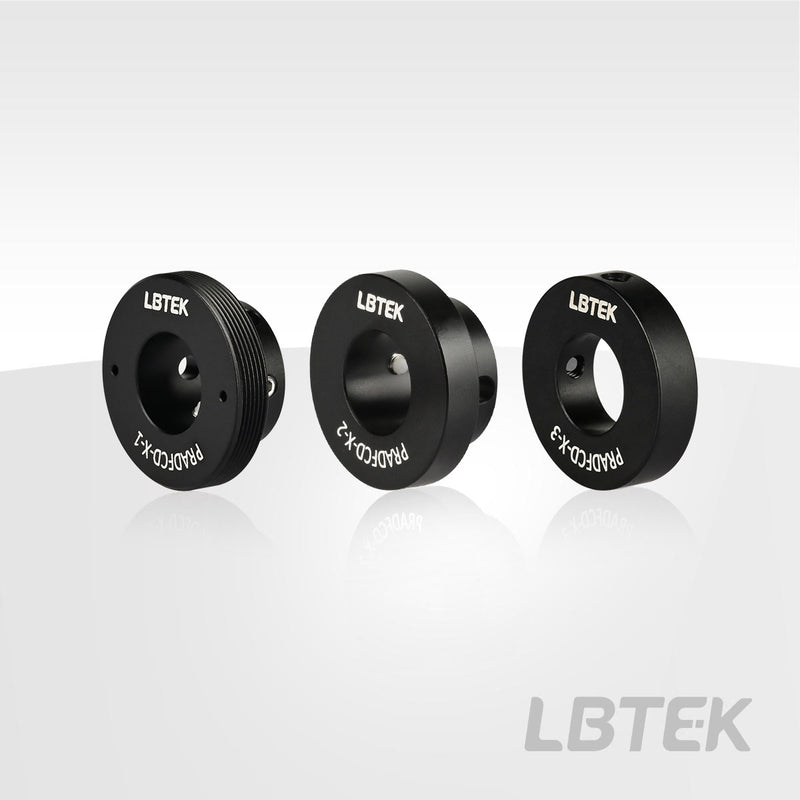

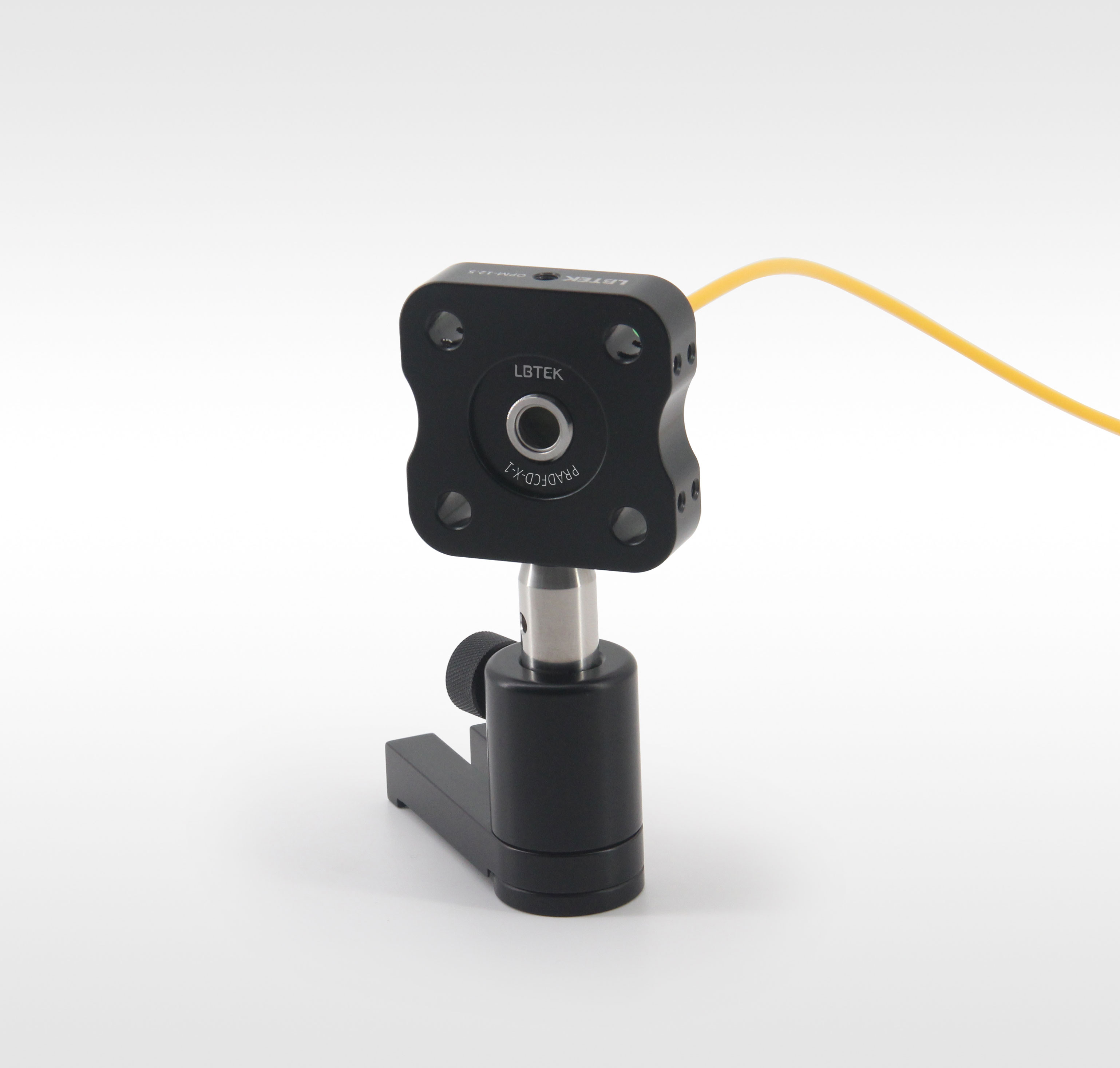

LBTEK is suitable for mounting cylindrical optical components with a diameter of Ø12 mm, and can be installed in adjustment mounts with SM1 threads or adjustment mounts with Ø25.4 mm smooth bore holes, as well as in coaxial systems.
- Material: 6061-T6 Aluminum Alloy
- Smooth inner wall, secured with set screws
| Limit hole diameter | 12 mm |
| Material | 6061-T6 aluminum alloy |
| Operating Wavelength | 350-700 nm (Coating A) |
| Connector Type | FC/PC |
| Focal Length Adjustment | Continuous, screw-driven |
| Rotation | 360° fine-adjustable |
| Lens Type | Aspherical |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
