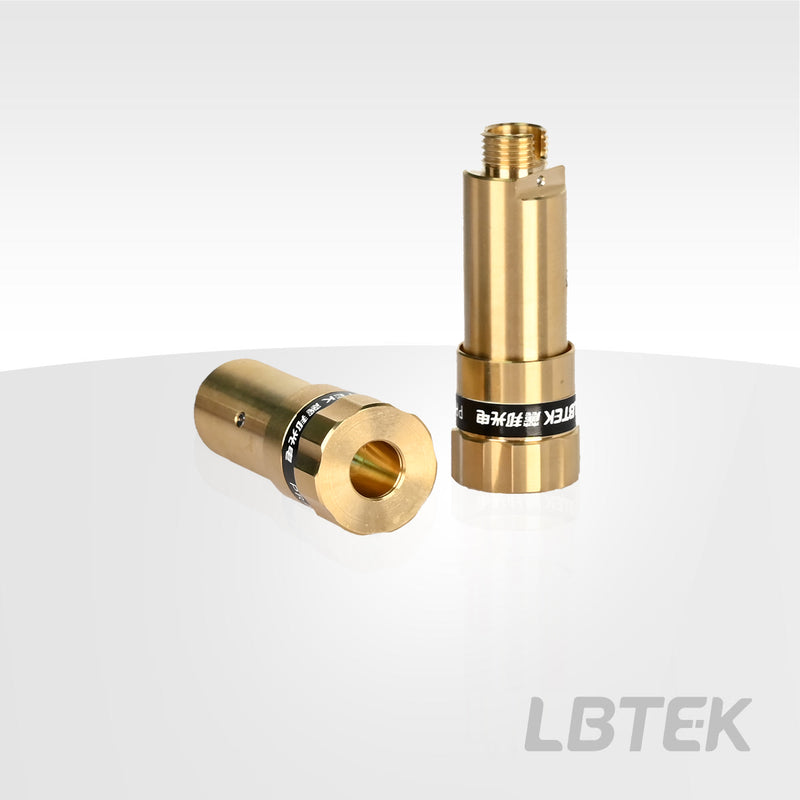

LBTek High Precision Rotatable Adjustable Focus Collimator, FC/APC PRADFCD-7.5-C-APC

Effective Focal Length 7.5 mm
Anti-reflection coating range<sup>e</sup> 1050 nm-1650 nm
Output beam waist diameter<sup>a</sup> 1.43 mm
Housing Diameter 12 mm
Interface Type FC/APC
Numerical Aperture (Output) 0.26
Tube Material Silicon copper alloy
Beam Divergence ≤0.08°
Mode Field Diameter (Output) 10.4 μm
Working Distance (Long) 521 mm
Beam Diameter (Output) 4 mm
Length Tolerance ±1 mm
Pointing Stability < 2 mrad
Specification Sheet PDF — Download
Lead Time: 0.0 week0.0s
CAD Drawing Download
3D Model (STL) STL — Download
