Flat Microlens Array PBMLA25S-850-F50
PBMLA25S-850-F50$1,280.22
In Stock· Ships in 3.0 weeks
Key Specifications
Wavelength
850.0nm
Transmittance
0.5%
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
The LBTek flat microlens array is a planar optical element built on diffraction optics principles using liquid crystal polymers. It comprises a polymer film and a single N-BK7 window plate designed for laser beam homogenization and shaping applications.
The device utilizes arrayed phase distribution on the liquid crystal polymer film to achieve microlens array functionality. By adjusting phase periods and contours of individual microlens units, engineers can flexibly manage both divergence angles and spot shapes to satisfy diverse beam shaping requirements.
Key Features
- Polarization-dependent operation with opposite outgoing polarization to incident state
- Planar design based on diffraction principles, eliminates spherical aberration
- Single-wavelength optimization with minimal aberration
- Anti-reflection coating ensuring high transmittance and diffraction efficiency
- Extensive customization capabilities for specialized specifications
| Transmittance | 0.5% |
| Thickness | 3.2 mm |
| Element Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Clear Aperture | Ø21.5 mm |
| Operating Wavelength | 850 nm |
| Effective Focal Length (EFL) | 50 mm |
| Surface Quality | 60/40 |
| Transmittance | Ravg<0.5% @700-1100 nm |
| Thickness | 3.2 mm |
| Diameter | 25.4 mm |
| Microlens Unit Size | 300 μmx300 μm |
| Microlens Shape | Square |
| Operating Temperature | -20 deg C to 60 deg C |
| Lead Time | 3.0 weeks |
No CAD drawings available for this product.

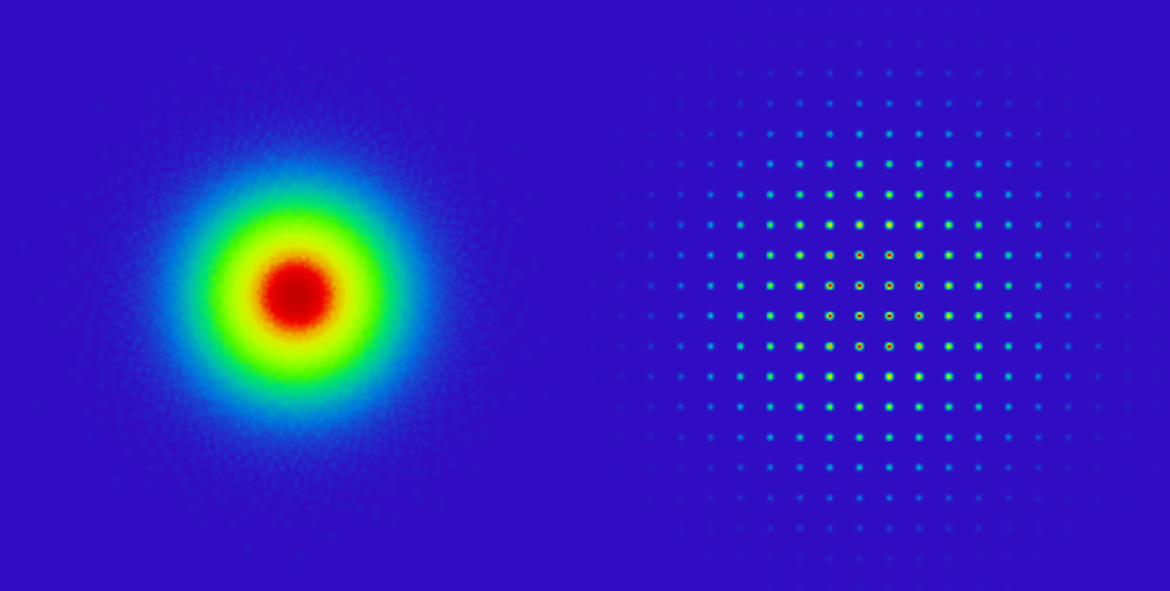

Curve 1

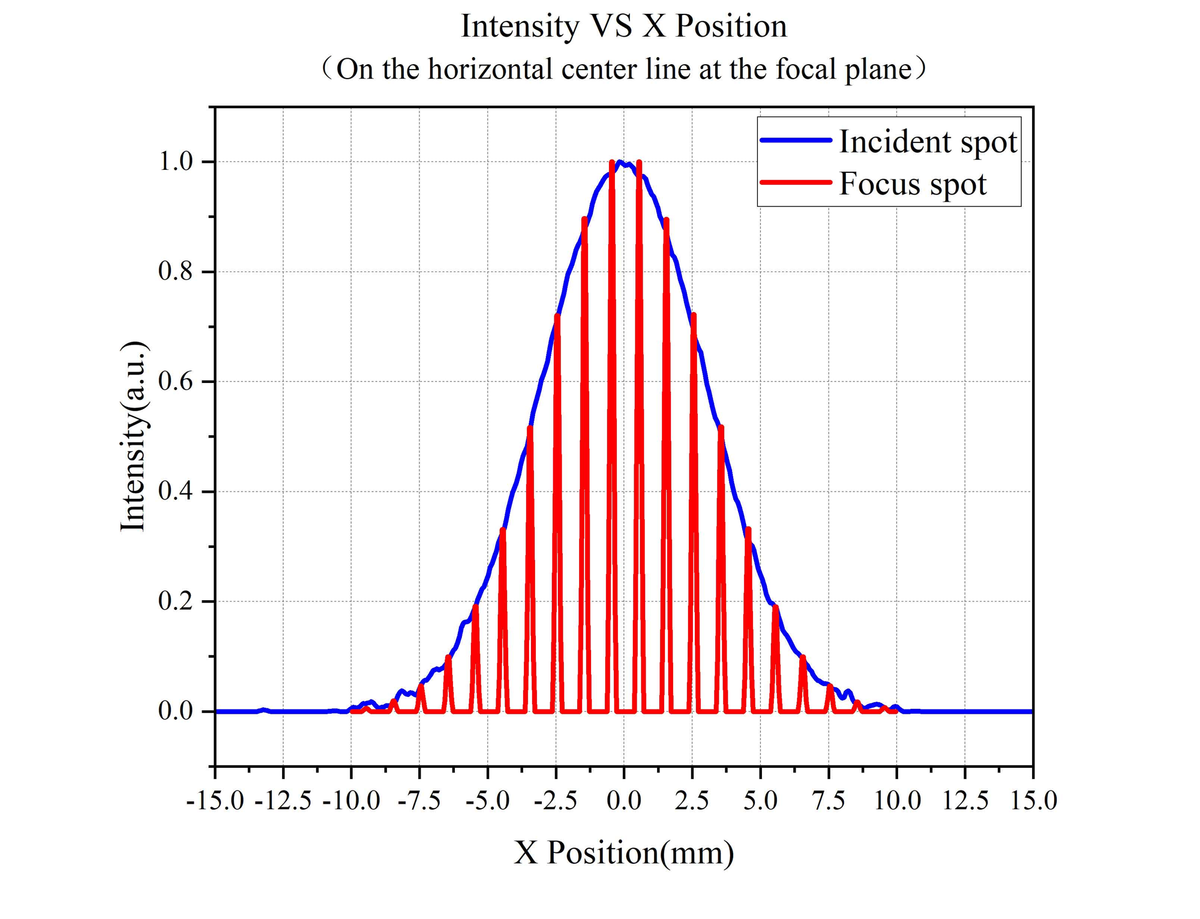

Curve - Intensity

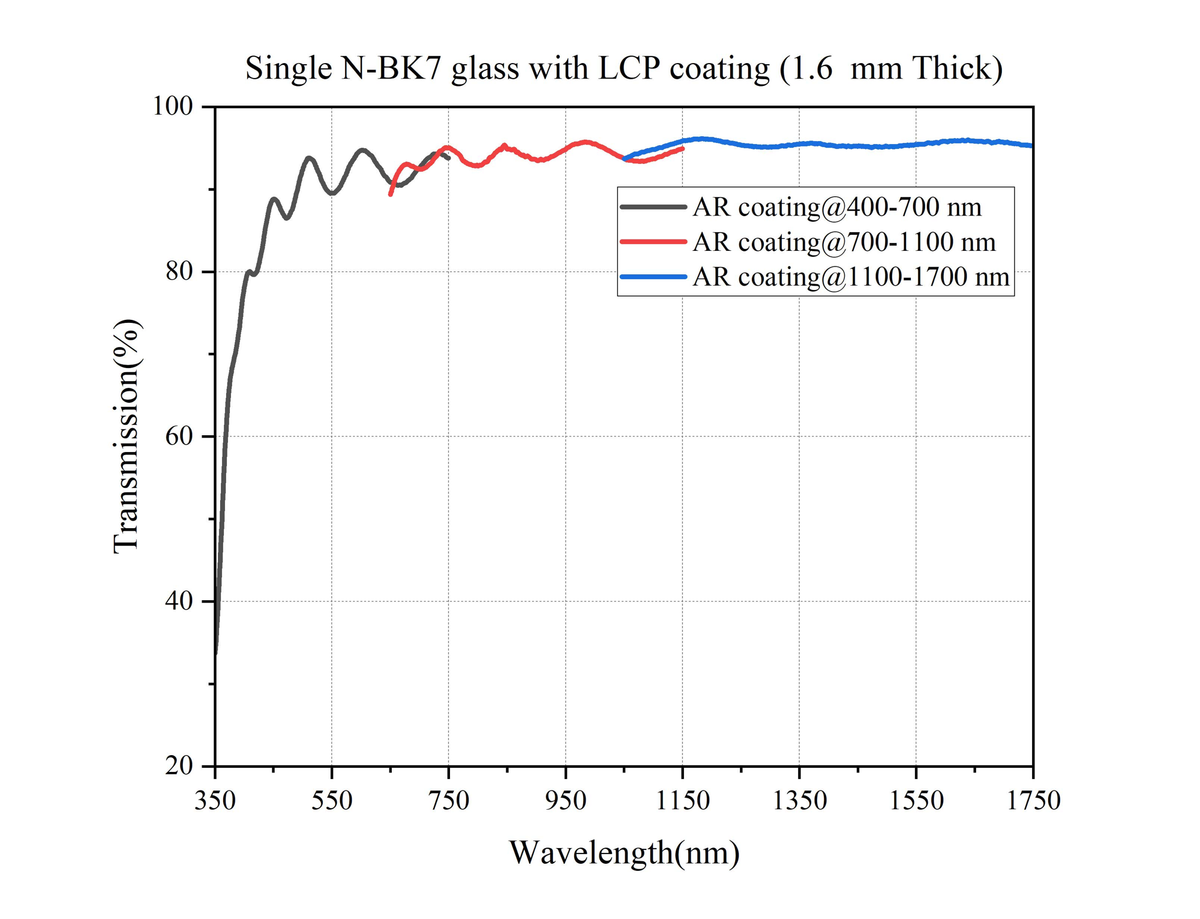

Curve 3
