Multi-Focal Lens PBMFL25-532-05
PBMFL25-532-05$2,539.10
In Stock· Ships in 4.0 weeks
Key Specifications
Wavelength
532.0nm
Transmittance
0.5%
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

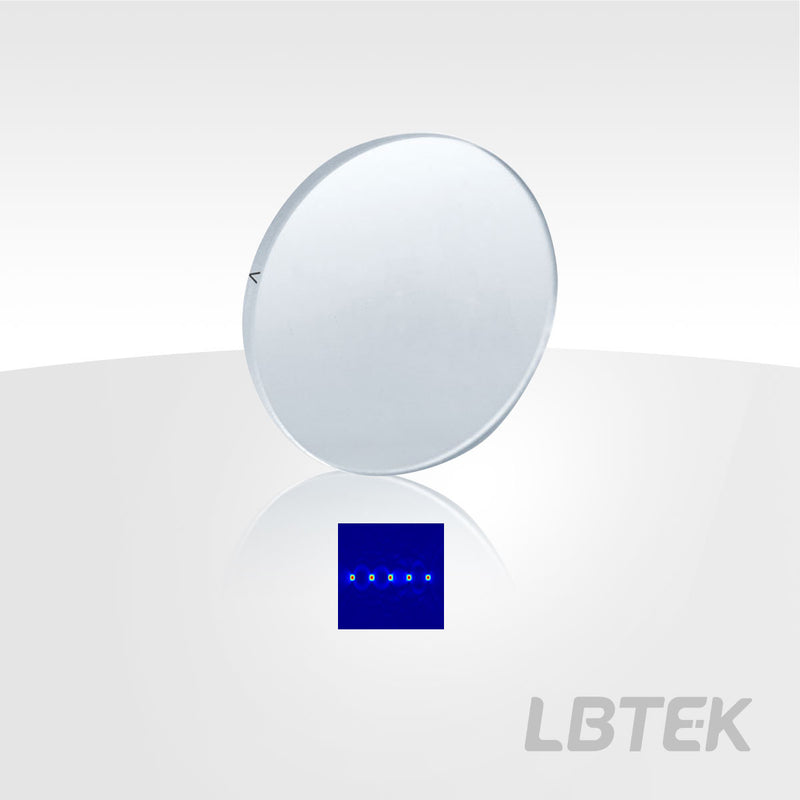

The LBTEK Multi-Focal Lens is a diffractive optical element sensitive to the polarization state of incident light. It generates multiple focal points with equal energy distribution along the propagation direction when illuminated with circularly polarized light.
LBTEK can precisely design the phase distribution based on the divergence angles, sizes, and energy distribution of the incident beam, achieving submicron-level liquid crystal polymer microstructure alignment with zero-order diffraction efficiency suppressed below 4%.
Key Features
- Liquid Crystal Polymer/N-BK7 window material, single-layer substrate structure
- Capable of generating multiple focal points with equal light intensity
- Incident spot size consistent with the clear aperture
- Working wavelength: 532 nm, 633 nm; number of focal points: 5; focal spacing: 50 mm
- Flexible customization available
Multi-Focal Lens Series
Standard products with clear aperture Ø20 mm, diffraction efficiency >96%, surface finish 60/40. Light enters from the AR-coated side. Incident beam size should match the clear aperture for uniform energy distribution among focal points.
| Material | Liquid Crystal Polymer/N-BK7 Window Plate |
| Clear Aperture | Ø20.0 mm |
| AR Coating | Ravg<0.5 %@400 nm-700 nm |
| Transmittance | >91 %@532 nm |
| Diffraction efficiency | >96 % |
| Surface Quality (Scratch/Dig) | 60/40 |
| Number of focus points | 5 |
| Focal length | 50-250 mm（Δ=50 mm） |
| Operating Wavelength | 532 nm |
| Optical component size | Ø25.4×1.6 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Curve 1
Curve - Intensity
Product Family: Multi-Focal Lens (2 variants)
| Product | SKU | Optical Component Size | Operating Wavelength | Focal Length | |
|---|---|---|---|---|---|
| Multi-Focal Lens PBMFL25-532-05 Current |
PBMFL25-532-05
| Ø25.4x1.6 mm | 532 nm | 50-250 mm (Δ=50 mm) | |
| Multi-Focal Lens PBMFL25-633-05 |
PBMFL25-633-05
| Ø25.4x1.6 mm | 633 nm | 50-250 mm (Δ=50 mm) | View |
