Flat-plate Cylindrical Lens Array PBCLA25-940-8
PBCLA25-940-8$1,048.15
In Stock· Ships in 3.0 weeks
Key Specifications
Wavelength
940.0nm
Transmittance
0.5%
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH

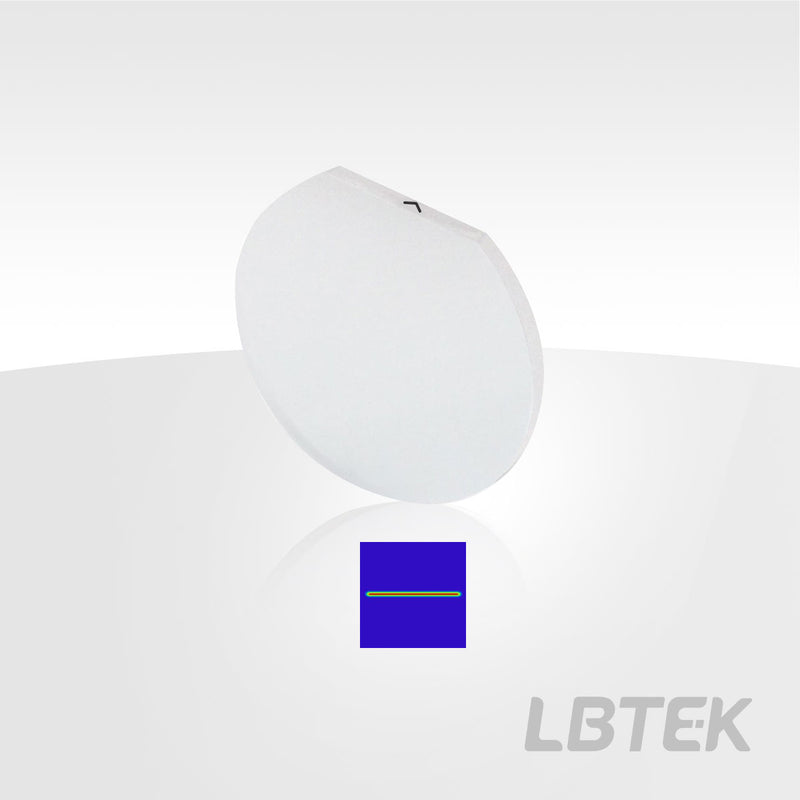

The LBTek flat-plate cylindrical lens array is a planar optical element that achieves one-dimensional beam shaping and homogenization based on the diffractive optical principle of liquid crystal polymers. The device consists of a polymer film sandwiched between two N-BK7 window plates, where the arrayed phase distribution realizes cylindrical lens functionality.
By adjusting incident beam polarization (left or right-handed circular), users can obtain either converging or diverging circularly polarized output beams. The single-wavelength design is free from spherical aberration, with anti-reflection coating on the incident surface ensuring high transmittance and diffraction efficiency.
Key Features
- One-dimensional beam shaping and homogenization
- Planar structure based on diffraction principle
- Polarization dependent with single-wavelength optimization
- Free from spherical aberration
- Applications in imaging, machine vision, and semiconductor laser collimation
| Transmittance | 0.5% |
| Diffraction Efficiency | 98.0% |
| Thickness | 3.2 mm |
| Element Material | N-BK7/ Liquid Crystal Polymer |
| Clear Aperture | Ø21.5 mm |
| Operating Wavelength | 940 nm |
| Effective Focal Length (EFL) | 8 mm |
| Surface Quality | 60/40 |
| Transmittance | Ravg<0.5% @700-1100 nm |
| Transmittance Curve | >98% |
| Thickness | 3.2 mm |
| Diameter | Ø25.4 mm |
| Microlens Unit Size | 0.5 mmx25.4 mm |
| Total Diffraction Efficiency | >98% |
| Operating Temperature | -20 deg C to 60 deg C |
| Lead Time | 3.0 weeks |
No CAD drawings available for this product.

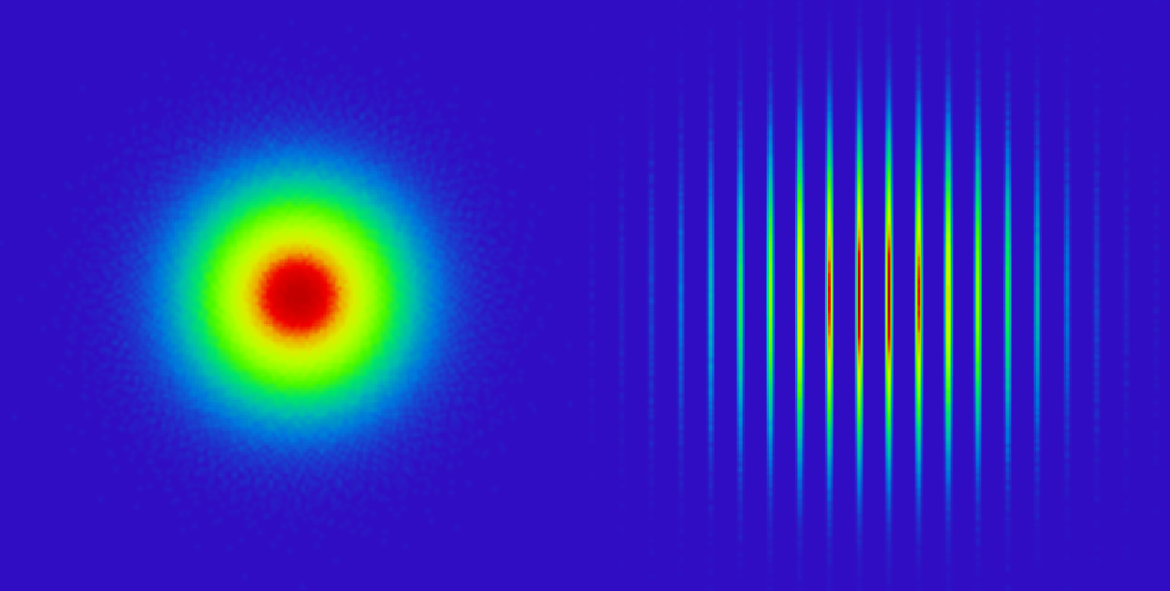

Curve 1

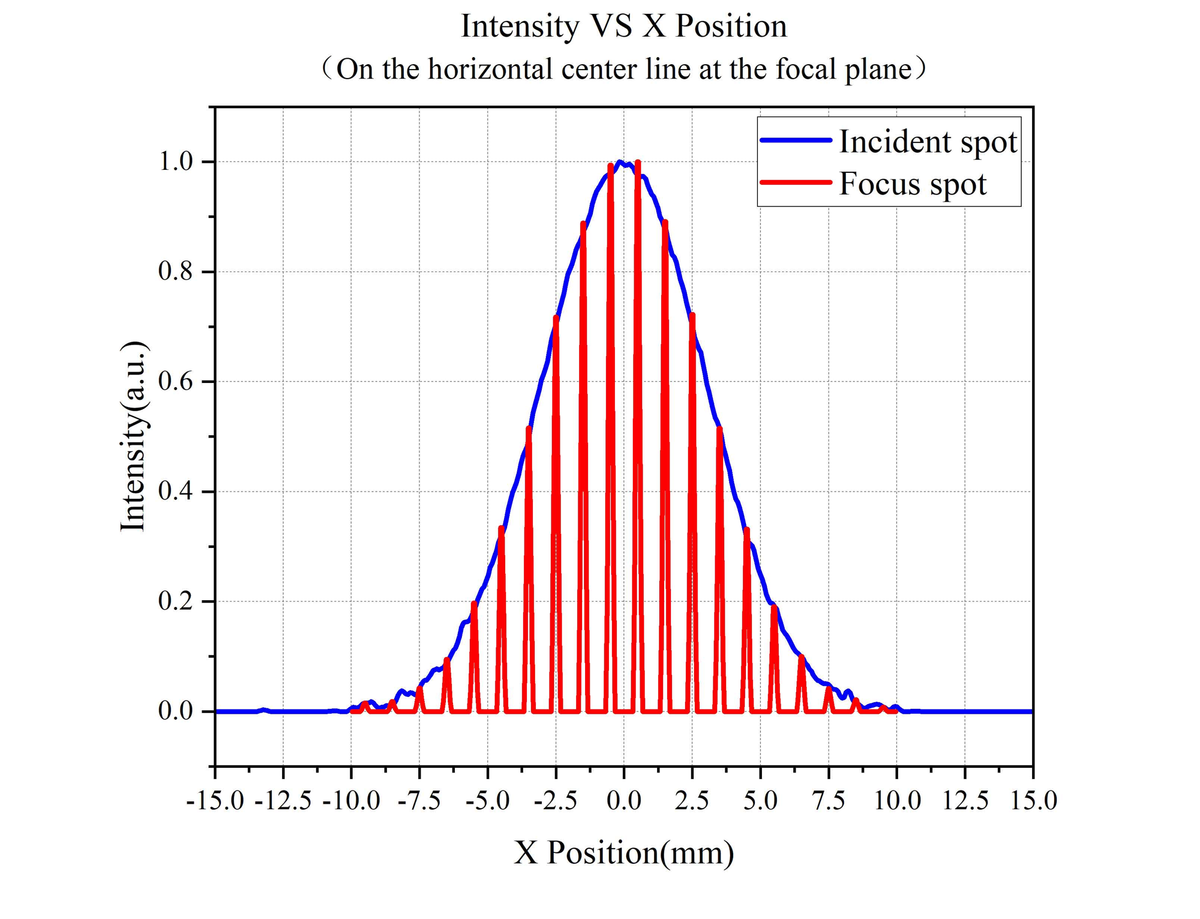

Curve - Intensity
