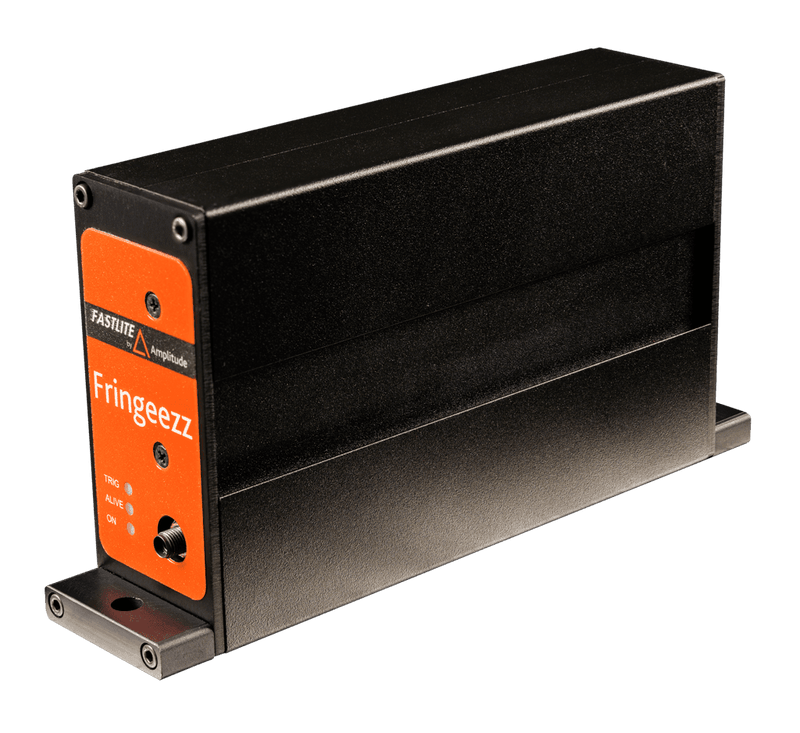

Fringeezz
Single-shot CEP measurement system
Overview
Fringeezz is a single-shot Carrier-Envelope Phase (CEP) measurement device for ultrafast laser systems. It provides fast, high-precision CEP measurements using spectral interferometry in an f-to-2f configuration.
Key Features
- Single-shot CEP measurement
- Compact f-to-2f interferometer
- Real-time CEP monitoring
- Compatible with Ti:Sa and Yb-doped laser systems
Applications
- CEP stabilization feedback
- Attosecond pulse generation monitoring
- High-field physics experiments
| CEP Measurement Speed | Up to 15 kHz |
| Single-shot Capability | Up to 1000 kHz |
| Resolution | 6 to 10 mrad |
| Spectral Input Band | 80 nm bandwidth centered between 800 and 900 nm, or 30 nm bandwidth around 510 nm |
No CAD drawings available for this product.
Product Family: CEP Measurement (Fringeezz) (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fringeezz NIR |
FST-FRINGEEZZ-NIR
| — | — | — | Contact |
| Fringeezz MIR |
FST-FRINGEEZZ-MIR
| — | — | — | Contact |
| Fringeezz Current |
FST-FRINGEEZZ
| — | — | — |
