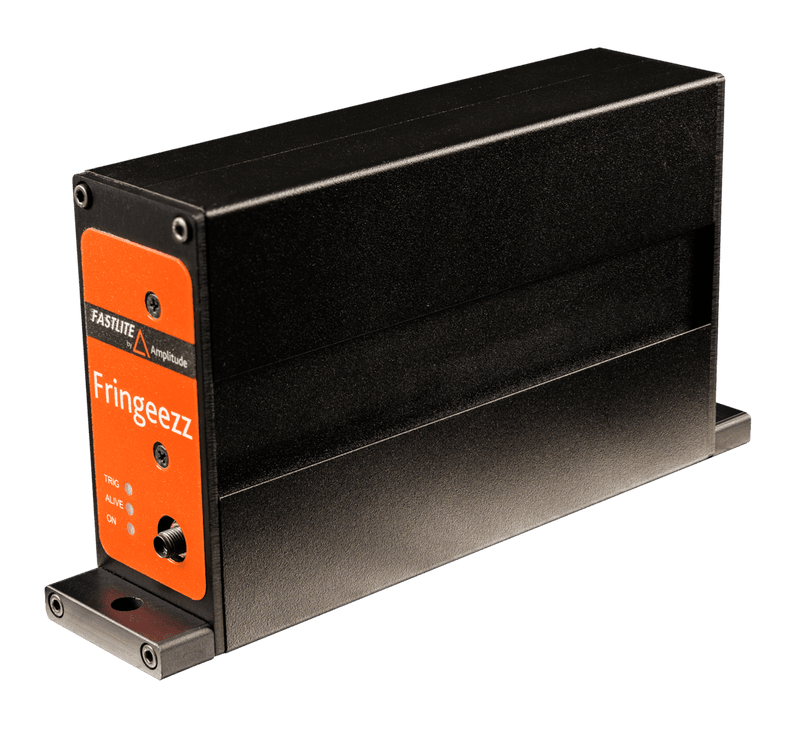

Fringeezz NIR
Single-shot CEP measurement for NIR lasers
Overview
Fringeezz NIR provides high-speed, single-shot CEP measurements for Ti:Sa and Yb-doped laser systems in the near-infrared. Ideal for CEP stabilization feedback loops in attosecond science.
Key Features
- CEP measurement speed up to 15 kHz
- CEP resolution: 6–10 mrad
- Optimized for Ti:Sa (800 nm) and Yb (1030 nm) systems
- Single-shot operation
Applications
- Ti:Sa laser CEP stabilization
- Yb-doped laser CEP monitoring
- Attosecond pulse generation
| CEP Measurement Speed | Up to 15 kHz |
| Resolution | 6–10 mrad |
| Spectral Input Band | 80 nm bandwidth centered between 800 and 900 nm, or 30 nm bandwidth around 510 nm |
| Feedback Mode | Hardware-only feedback, loop settings management by software |
| Software Features | Real time PSD, statistics, data-logging |
| Max Rep Rate (Single-shot) | Up to 1 MHz |
No CAD drawings available for this product.
Product Family: CEP Measurement (Fringeezz) (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Fringeezz NIR Current |
FST-FRINGEEZZ-NIR
| — | — | — | |
| Fringeezz MIR |
FST-FRINGEEZZ-MIR
| — | — | — | Contact |
| Fringeezz |
FST-FRINGEEZZ
| — | — | — | Contact |
