Glan-Taylor Crystal Polarizing Prism GTP05
GTP05$1,059.12
In Stock
Key Specifications
Wavelength
350.0nm
Design Tools
SHG Phase Matching
Calculate phase matching angles and efficiency
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
Complete Your Setup
RoHS
REACH

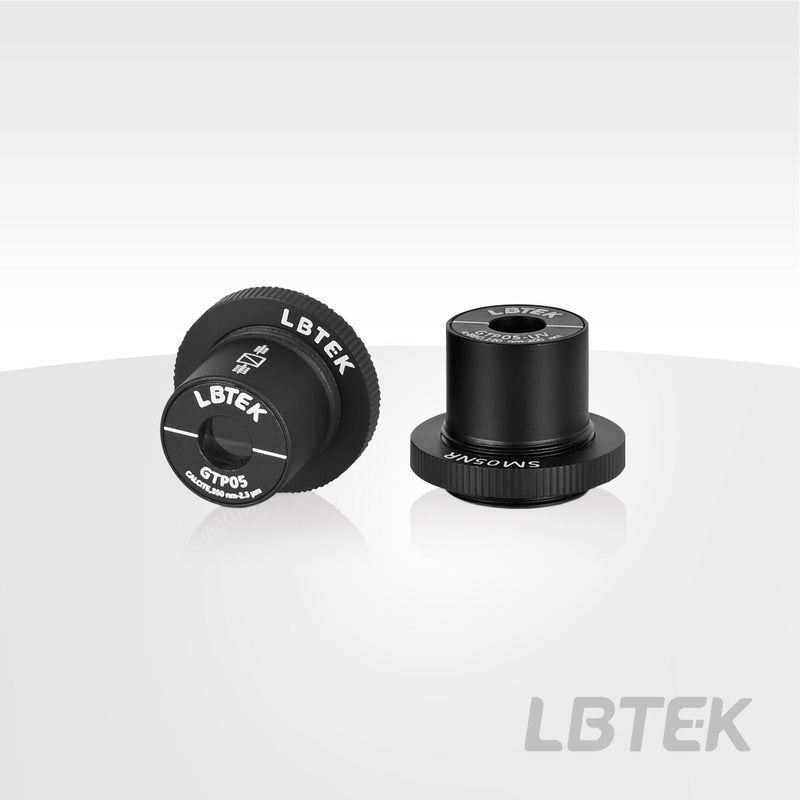

Glan-Taylor Crystal Polarizing Prism — Model GTP05
Glan-Taylor polarizing prism, Laser-grade natural Calcite, operating wavelength 350 nm-2.3 μm, clear aperture Ø5 mm, extinction ratio 10000:1.
Overview
LBTEK Glan-Taylor Crystal Polarizing Prisms feature a high damage threshold air-spaced structure with laser-grade Calcite or α-BBO substrates. Operating wavelength covers 200 nm-3.0 μm (segmented), with extinction ratio up to >100000:1. Available with optional AR coatings at 245 nm, 532 nm, 1064 nm. Side absorber improves polarization purity. Housed in a standard rotation mount.
Key Features
- Extinction ratio: 10000:1
- Operating wavelength: 350 nm-2.3 μm
- Material: Laser-grade natural Calcite
- Structure: High damage threshold air-spaced structure
- Beam deviation: <3 arcmin
- Optional AR coating: P coating@1064 nm
Applications
- Laser polarization control and beam separation
- High-power laser systems requiring stable extinction ratio
- Polarimetry and ellipsometry
- Optical isolation and Faraday rotator combinations
- Imaging and spectroscopy with polarization discrimination
| Optical component material | Laser-grade natural Calcite |
| Structural design | High damage threshold air-spaced structure |
| Clear Aperture | Ø5 mm |
| Beam Deviation | <3 arcmin |
| Operating Wavelength | 350 nm-2.3 μm |
| Extinction ratio | 10000:1 |
| Optional AR coating | P coating@1064 nm |
| Housing Diameter | Ø12.7 mm |
| Surface finish (scratches/pits) | 20/10 (emergent/incident surface) |
| Housing thread | SM05 external thread |
| Transmitted Wavefront Error (TWE) | λ/4, Ø4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Glan-Taylor Crystal Polarizing Prism (7 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Glan-Taylor Crystal Polarizing Prism GTP10-IR |
GTP10-IR
| Ø25.4 mm | Ø10 mm | 700 nm-3.0 μm | View |
| Glan-Taylor Crystal Polarizing Prism GTP10-A |
GTP10-A
| Ø25.4 mm | Ø10 mm | 300 - 700 nm | View |
| Glan-Taylor Crystal Polarizing Prism GTP10-UV |
GTP10-UV
| Ø25.4 mm | Ø10 mm | 200 nm-300 nm | View |
| Glan-Taylor Crystal Polarizing Prism GTP10 |
GTP10
| Ø25.4 mm | Ø10 mm | 350 nm-2.3 μm | View |
| Glan-Taylor Crystal Polarizing Prism GTP05-A |
GTP05-A
| Ø12.7 mm | Ø5 mm | 300 nm-700 nm | View |
| Glan-Taylor Crystal Polarizing Prism GTP05-UV |
GTP05-UV
| Ø12.7 mm | Ø5 mm | 220 nm-300 nm | View |
| Glan-Taylor Crystal Polarizing Prism GTP05 Current |
GTP05
| Ø12.7 mm | Ø5 mm | 350 nm-2.3 μm |
