Glan-Taylor Crystal Polarizing Prism GTP10-IR

Glan-Taylor Crystal Polarizing Prism — Model GTP10-IR

Glan-Taylor polarizing prism, Laser-grade α-BBO, operating wavelength 700 nm-3.0 μm, clear aperture Ø10 mm, extinction ratio 10000:1.

Overview

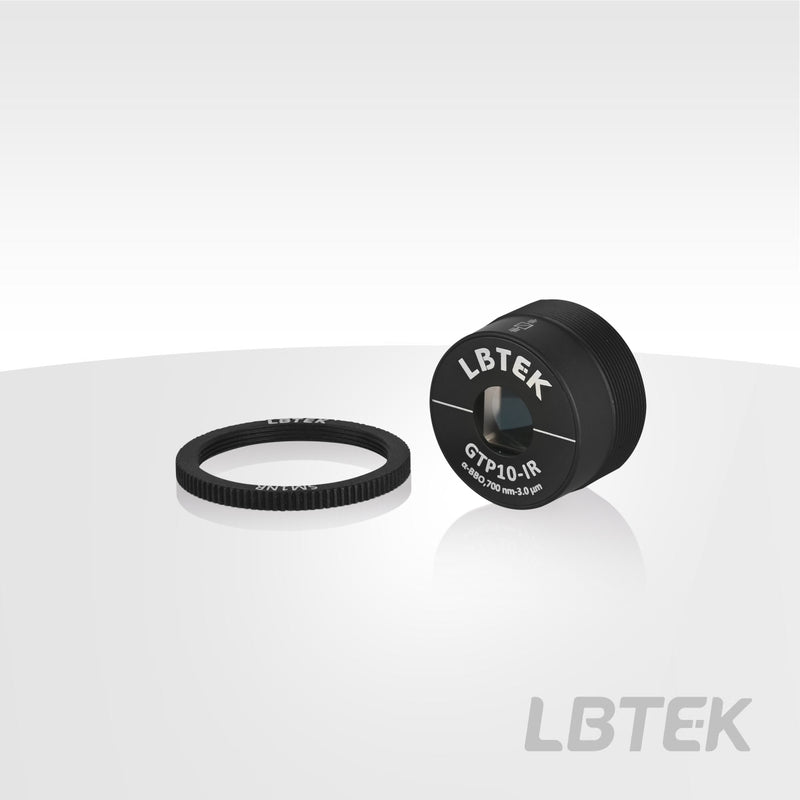

LBTEK Glan-Taylor Crystal Polarizing Prisms feature a high damage threshold air-spaced structure with laser-grade Calcite or α-BBO substrates. Operating wavelength covers 200 nm-3.0 μm (segmented), with extinction ratio up to >100000:1. Available with optional AR coatings at 245 nm, 532 nm, 1064 nm. Side absorber improves polarization purity. Each polarizer comes pre-installed in a non-removable, black-anodized mechanical housing. One end of the housing carries an SM1 external thread with a locking ring for counter-locking and polarization control, while the opposite end is smooth; both ends are compatible with LBTEK precision mounts.

Key Features

• Extinction ratio: 10000:1
• Operating wavelength: 700 nm-3.0 μm
• Material: Laser-grade α-BBO
• Structure: High damage threshold air-spaced structure
• Beam deviation: <3 arcmin
• Optional AR coating: P coating@1064 nm

Applications

• Laser polarization control and beam separation
• Fabrication of apodized Fiber Bragg Gratings (FBGs) by point-by-point inscription
• “Cleaning” the beam in femtosecond laser processing systems to generate pure linearly polarized light
• Quantum optics systems: entangled-photon sources, cold-atom quantum memory, fiber QKD and ion-trap qubit manipulation
