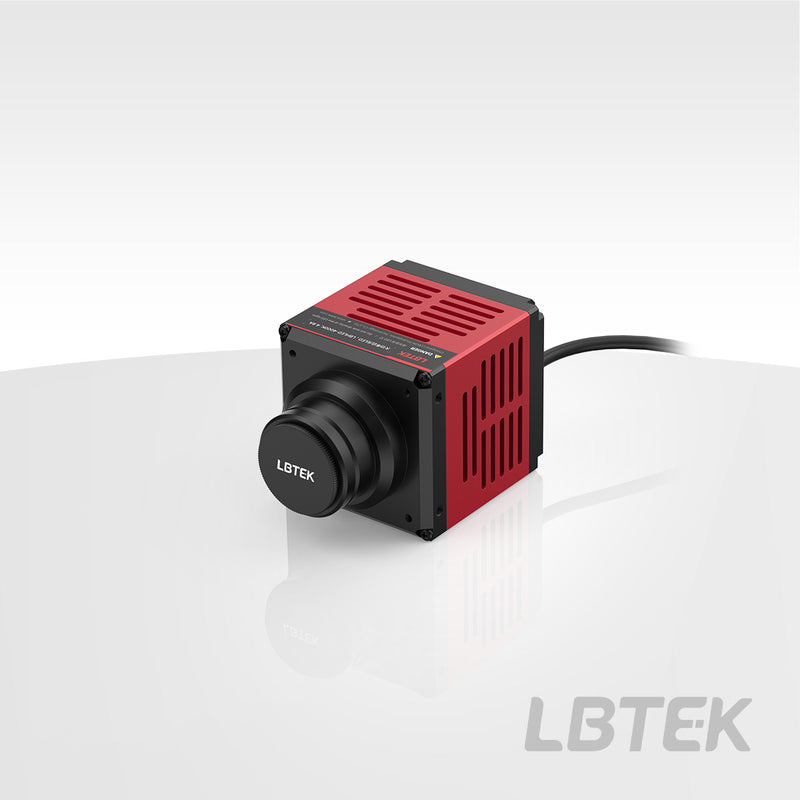

High-Power Collimated LED LBHLED-365, 365 nm

The LBHLED-365 is a high-power collimated monochromatic LED with a center wavelength of 365 nm (FWHM 16 nm), delivering up to 5.8 W of collimated optical power from a 25.4 mm output aperture with a beam divergence of <10°. It is driven by the LBLED-5V5A controller (sold separately) and connects to standard SM1-threaded lens tubes, filter holders and irises.

LBTEK high-power LEDs are divided into two categories: the white light illumination series and the monochromatic light source series, both consisting of collimated optical components, copper-based heat sinks, silent fans, and precision mechanical housings. This integrated design ensures excellent power stability and resistance to thermal damage. The white light illumination series features a beam divergence angle of <7°, while the monochromatic light source series has a divergence angle of <10°. The white light illumination series offers four standard color temperature options: 4000K, 5000K, 5700K, and 6500K. When used with the LBLED-CT7V controller, continuous intensity adjustment is possible via the front panel knob, along with external trigger and software control functions. The monochromatic light source series covers ultraviolet to red light wavelengths (365 nm, 405 nm, 450 nm, 520 nm, 625 nm), with maximum output power ranging from 0.9W to 7W, making it suitable for applications such as fluorescence excitation and spectral analysis. This series requires the use of a 5A/5V or 6A/5V controller.

Note: The light source controller is sold separately. The mechanical housing is equipped with 4×M4 threaded holes on the side and 4×M3 threaded holes on the front; the light output port features an SM1 internal thread standard interface, compatible with all SM1 standard threaded optical components.
