LED Light Source Controller LBLED-5V6A

Name: LED Light Source Controller LBLED-5V6A
Brand: WaveQuanta
SKU: LBLED-5V6A
Price: 414.71 SGD
Availability: InStock

LBLED-5V6A

$414.71

In Stock

Request Quote

Design Tools

Time-Bandwidth Product Check if your pulse is transform-limited Pulse Stretching & Compression Calculate GVD, TOD, and pulse broadening

View all 49 calculators →

RoHS REACH

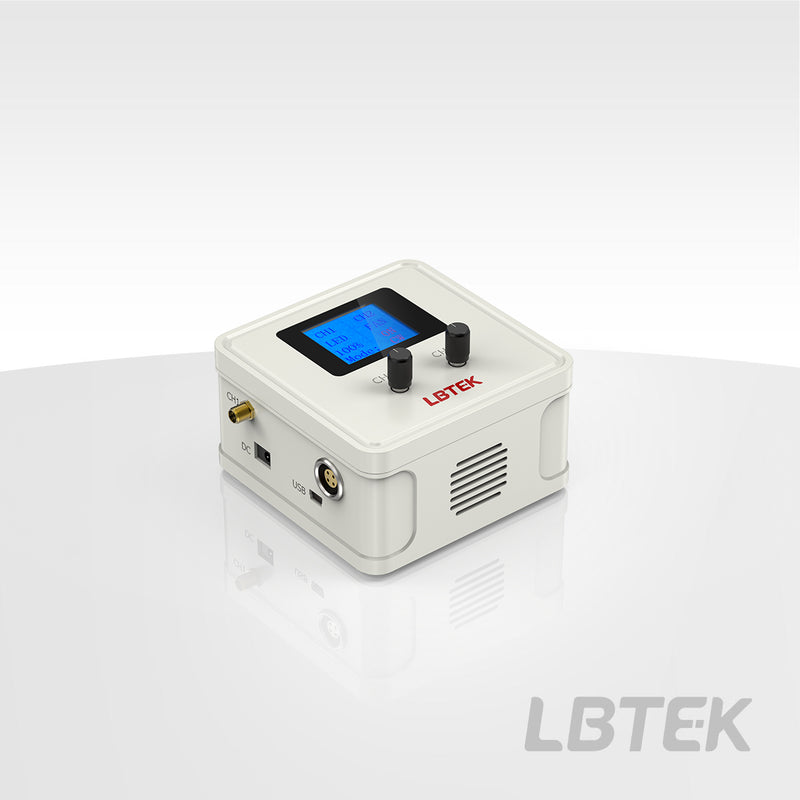

The LBLED-5V6A is a 1-channel constant-current driver delivering DC 5V at up to 6 A. It is the matching controller for the LED sources listed in the specifications, and offers front-panel knob control, software control over USB, and an external TTL trigger input for synchronised illumination.

LBTEK's light source controllers have five models: LBLED-CT4V, LBLED-CT6V, LBLED-CT7V, LBLED-5V5A, and LBLED-5V6A. Among them, LBLED-CT4V is used with collimated monochromatic LEDs, collimated white LEDs, and non-collimated monochromatic LEDs; LBLED-CT6V is used with deep UV LED light sources; LBLED-CT7V is used with high-power white LEDs; LBLED-5V5A and LBLED-5V6A are used with high-power monochromatic LEDs. The light emission can be controlled directly by the knob on the controller, or via software, and the controller supports external trigger mode. For specific usage, refer to the controller manual.

Note: When the current of collimated monochromatic LEDs LBLED-0365, LBSLED-0365, and LBULED-0365 is 80%, the maximum power can be reached.

Key Features

Supports external trigger and host computer control of LED light source
External trigger level TTL 3.3-5V

Typical Applications

Driving LBTEK collimated, deep-UV and high-power LED sources
Pulsed or gated illumination via external TTL trigger
Automated intensity control from a host computer
Multi-source microscopy and imaging rigs

Installation

Light Source Controller Interface Diagram

LBLED-5V6A installation

SKU: LBLED-5V6A · Sourced from LBTEK · Distributed by WaveQuanta

Number of Channels	1
Output Voltage	DC 5V
Maximum Output Current	6 A
Output Power	30 W
External Trigger	TTL level, 3.3-5 V
Cooling	Air cooling
Control Mode	LED control and internal modulation
Operating Temperature	10~30 °C
Storage Temperature	0~40 °C
Dimensions	110 mm × 123.2 mm × 77.85 mm
Power Adapter	Input AC 110-240 V, Output DC 12 V / 5 A

Specification Sheet PDF — Download

Mechanical Drawing PDF

3D Model (STL) STL — Download

Product Family: LED light source (50 variants)
