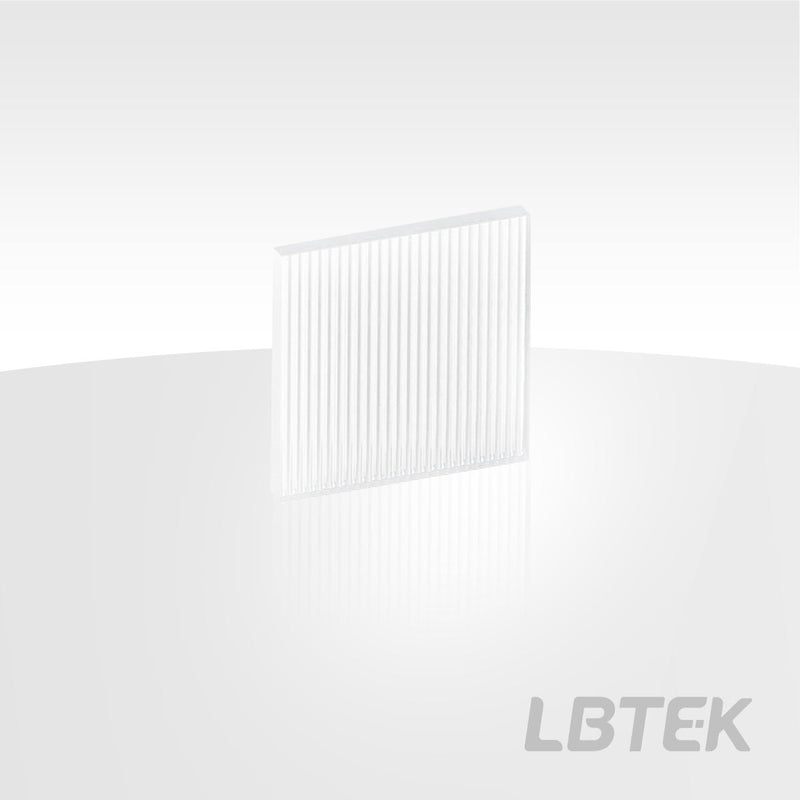

High Power Cylindrical Lens Array MLAS35-005-P13-B
MLAS35-005-P13-B$4,324.18
In Stock
Key Specifications
Wavelength
900.0nm
Transmittance
1.0%
Design Tools
Grating Angle Calculator
Compute diffraction angles and efficiency
Gaussian Beam Calculator
Model beam propagation through your optical system
Wavelength \u2194 Wavenumber
Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS
REACH
LBTek high-power cylindrical lens array products include two main types: single-sided structure and double-sided orthogonal structure. These products utilize high-damage-threshold UV fused silica or S-TIH53 optical glass as the substrate material with advanced micro-nano structure processing technology to create continuously arranged cylindrical microlens units.
The arrays feature a high fill factor and excellent surface shape consistency, effectively reducing scattering losses. When paired with appropriate lenses, cylindrical lens arrays can transform non-uniform multimode laser beams into highly uniform linear or square flat-top spots.
Key Features
- High NA and high fill factor design
- Polarization insensitive operation
- High transmittance from ultraviolet to near-infrared wavelengths
- Available with anti-reflection coating or uncoated options
- Standard products exclude mounting hardware for customer flexibility
- Widely used in laser lift-off, annealing, and medical aesthetics
| Transmittance | 1.0% |
| Clear Aperture | 32.5×32.5 mm |
| Operating Wavelength | 900-1100 nm |
