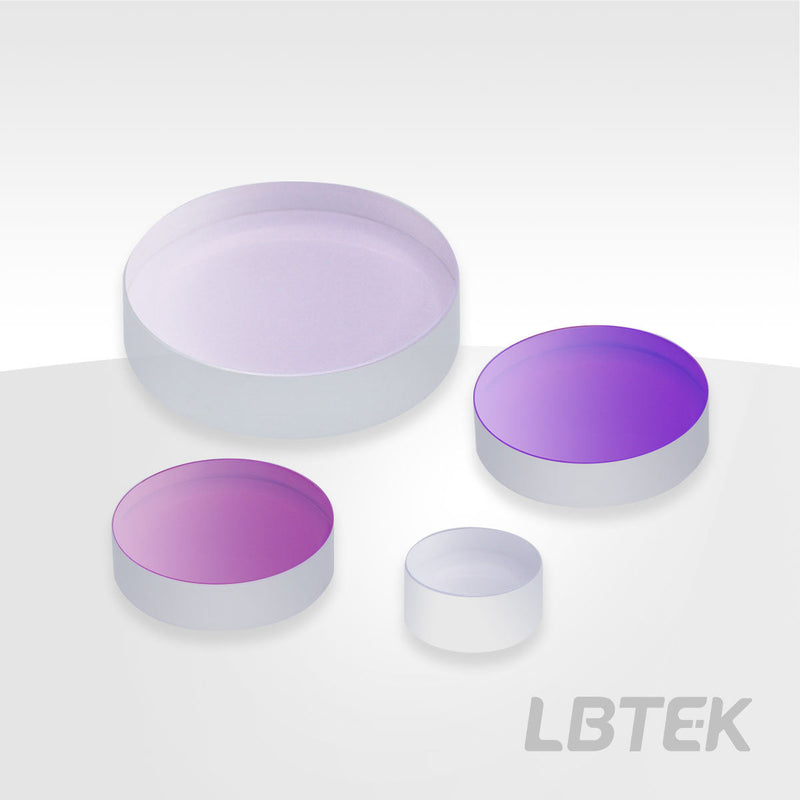

High-Power Laser Line Mirror, UVFS, Diameter 25.4 mm, Operating Wavelength 515 nm LPM10-515-HP

High-Power Laser Line Mirror — Model LPM10-515-HP

Operating wavelength 515 nm, Ø25.4 mm, thickness 6 mm, substrate UV fused silica.

Product Description

• High-purity UV Fused Silica (UVFS) fabrication
• Ultra-high laser-induced damage threshold (LIDT) dielectric coating
• High Reflectance

LBTEK high-power Laser Line Mirrors are made of high-purity UV Fused Silica (UVFS) and ultra‑high laser‑induced damage threshold (LIDT) dielectric coatings, capable of withstanding high-energy pulses with a high damage threshold. LBTEK high-power Laser Line Mirrors are efficient reflectors optimized for a single wavelength range. The UV Fused Silica (UVFS) substrate of LBTEK high-power Laser Line Mirrors offers better uniformity and a lower Coefficient of Thermal Expansion, resulting in better performance under temperature fluctuations and greater tolerance to environmental influences. The wavelength ranges for LBTEK high-power Laser Line Mirrors include 266 nm, 355 nm, 532 nm, 780 nm, 1064 nm, 1550 nm, and 532&1064 dual wavelength, with an incident angle of 0-45° and Reflectance exceeding 99%.

High Power Laser Line Mirror, 1-inch circular

• Design Wavelength: 266 nm, 355 nm, 515 nm, 532 nm, 780 nm, 800 nm, 1030 nm, 1064 nm, and 1550 nm available
• High damage threshold
• High reflectance

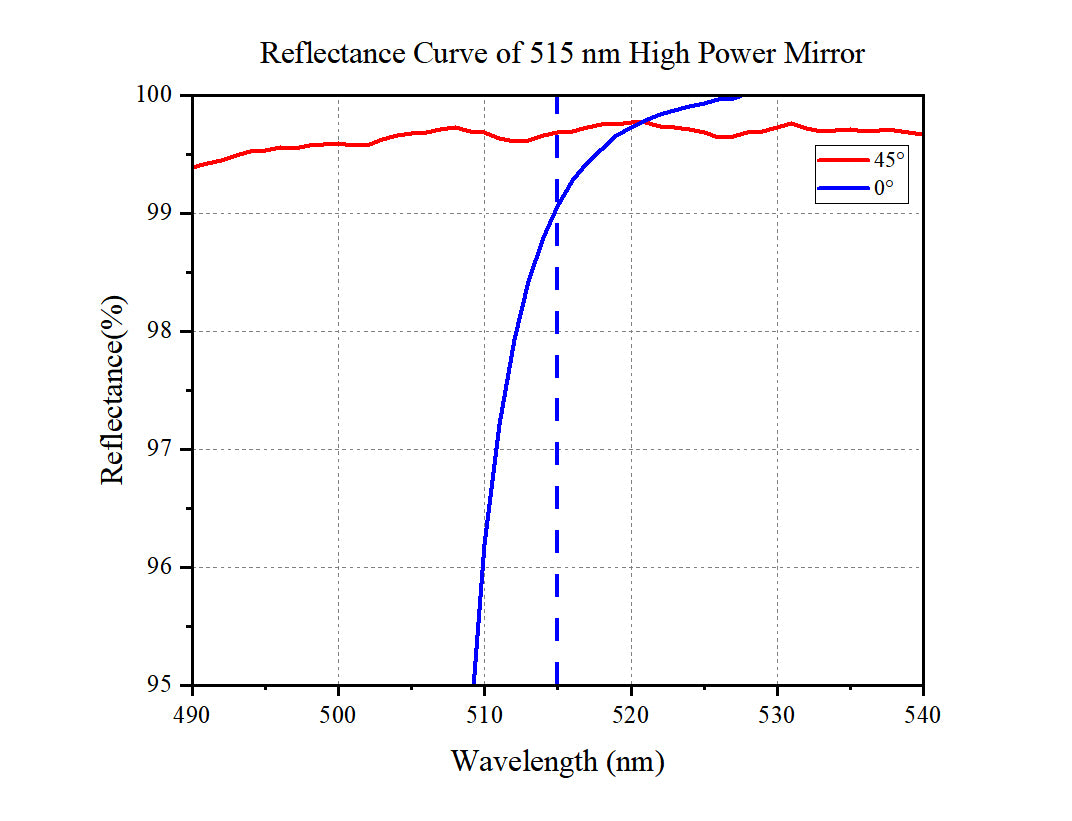

LBTEK High Power Laser Line Mirror is coated with a high laser-induced damage threshold (LIDT) dielectric coating, capable of withstanding high-energy pulses, and has a high damage threshold. At the same time, the High Power Laser Line Mirror supports beam incidence from 0-45°, with reflectance higher than 99%. LBTEK High Power Laser Line Mirror offers two options: polished back and frosted back, convenient for users to apply in different scenarios.
