High-power Laser Line Reflectors LPM10-532-HP

LPM10-532-HP
$72.52
In Stock
Key Specifications
Wavelength 532.0nm
Diameter 25.4mm
LIDT 0.1355J/cm²
Reflectance 99.0%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

High-power Laser Line Reflectors — Model LPM10-532-HP

Operating wavelength 532 nm, Ø25.4 mm, substrate UV Fused Silica.

Product Description

  • High-purity UV Fused Silica Fabrication
  • Ultra-high Laser-induced Damage Threshold Dielectric Coating
  • High Reflectivity

The LBTEK high-power laser line mirrors are manufactured using high-purity UV fused silica and ultra-high laser-induced damage threshold (LIDT) dielectric coatings, capable of withstanding high-energy pulses with superior damage thresholds. The LBTEK high-power laser line mirrors are highly efficient reflectors optimized for single-wavelength ranges. The UV fused silica substrate of LBTEK high-power laser line mirrors offers better uniformity and lower thermal expansion coefficients, ensuring superior performance under temperature fluctuations and enhanced resistance to environmental impacts. The LBTEK high-power laser line mirrors are available in seven working wavelengths: 266 nm, 355 nm, 532 nm, 780 nm, 1064 nm, 1550 nm, and a dual-wavelength option of 532 & 1064 nm, with an incident angle range of 0-45° and reflectivity exceeding 99%.

High-power Laser Line Reflectors

  • Design Wavelength: 266 nm, 355 nm, 532 nm, 780 nm, 1064 nm, and 1550 nm Optional
  • High Damage Threshold
  • High Reflectivity

Address：Building A6, Huanchuang Enterprise Plaza, Yuelu Idstrict, Changsha

Clear Aperture>90%CA
Thickness6 mm
Damage Threshold0.1355J/cm2@515 nm, 290 fs, 20 kHz, Ø12.07μm (Single Pulse)； 0.0568J/cm2@515 nm, 290 fs, 100 Hz, Ø12.07μm (100 Pulses)； 8J/cm2, 532 nm, 10 ns, 20 Hz
Reflectance (AR)Rs, Rp>99%a@532 nm
Diameter Tolerance+0.0/-0.25 mm
Thickness Tolerance±0.25 mm
Clear Aperture>90%CA
Operating Wavelength532 nm
ReflectanceRs, Rp>99%a@532 nm
Thickness6 mm
Diameter25.4 mm
Substrate MaterialUV fused silica
Damage Threshold0.1355J/cm2@515 nm, 290 fs, 20 kHz, Ø12.07μm (Single Pulse)； 0.0568J/cm2@515 nm, 290 fs, 100 Hz, Ø12.07μm (100 Pulses)； 8J/cm2, 532 nm, 10 ns, 20 Hz
Low damage threshold detected (0.1355 J/cm²). For high-power applications, consider WaveQuanta premium IBS-coated optics with enhanced damage resistance.
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

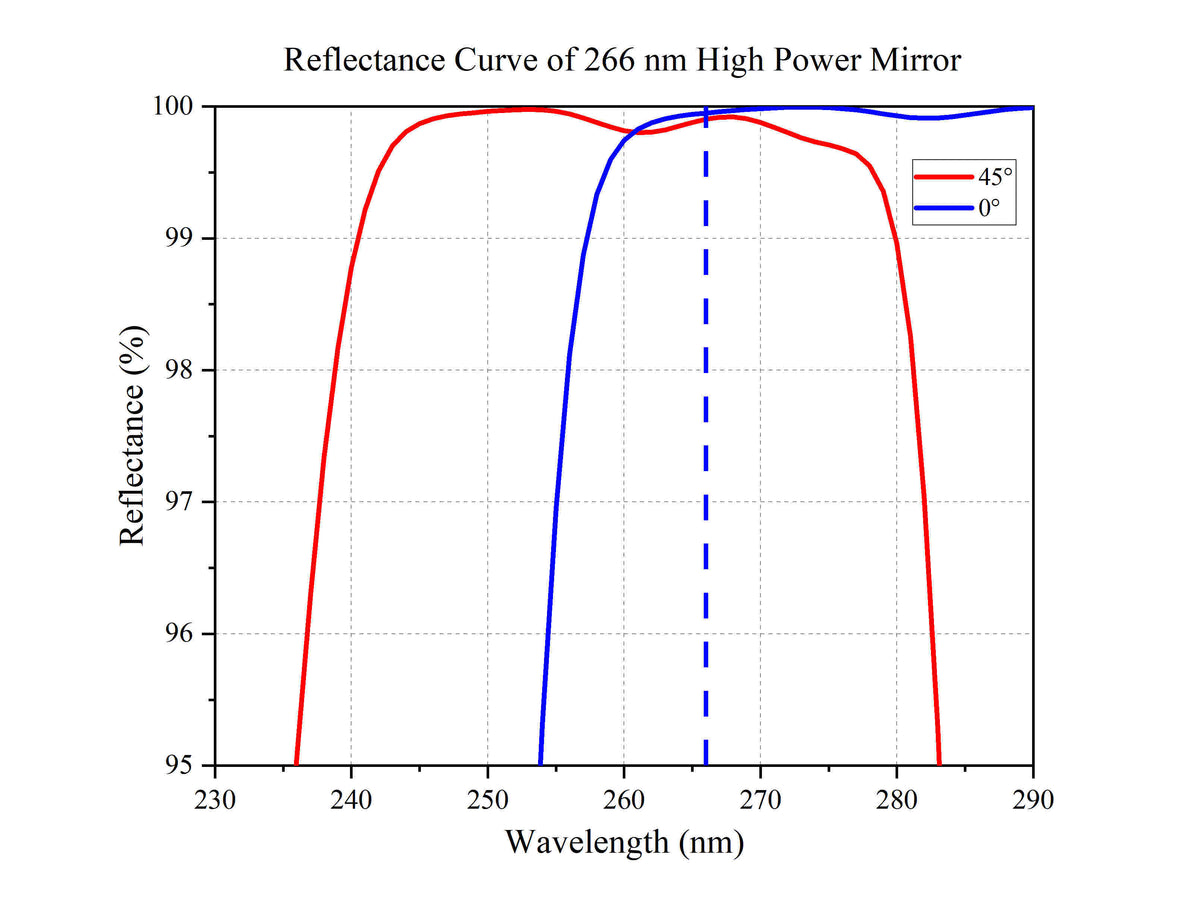

Reflectance Curve of 266 nm High Power Mirror
Reflectance Curve of 266 nm High Power Mirror

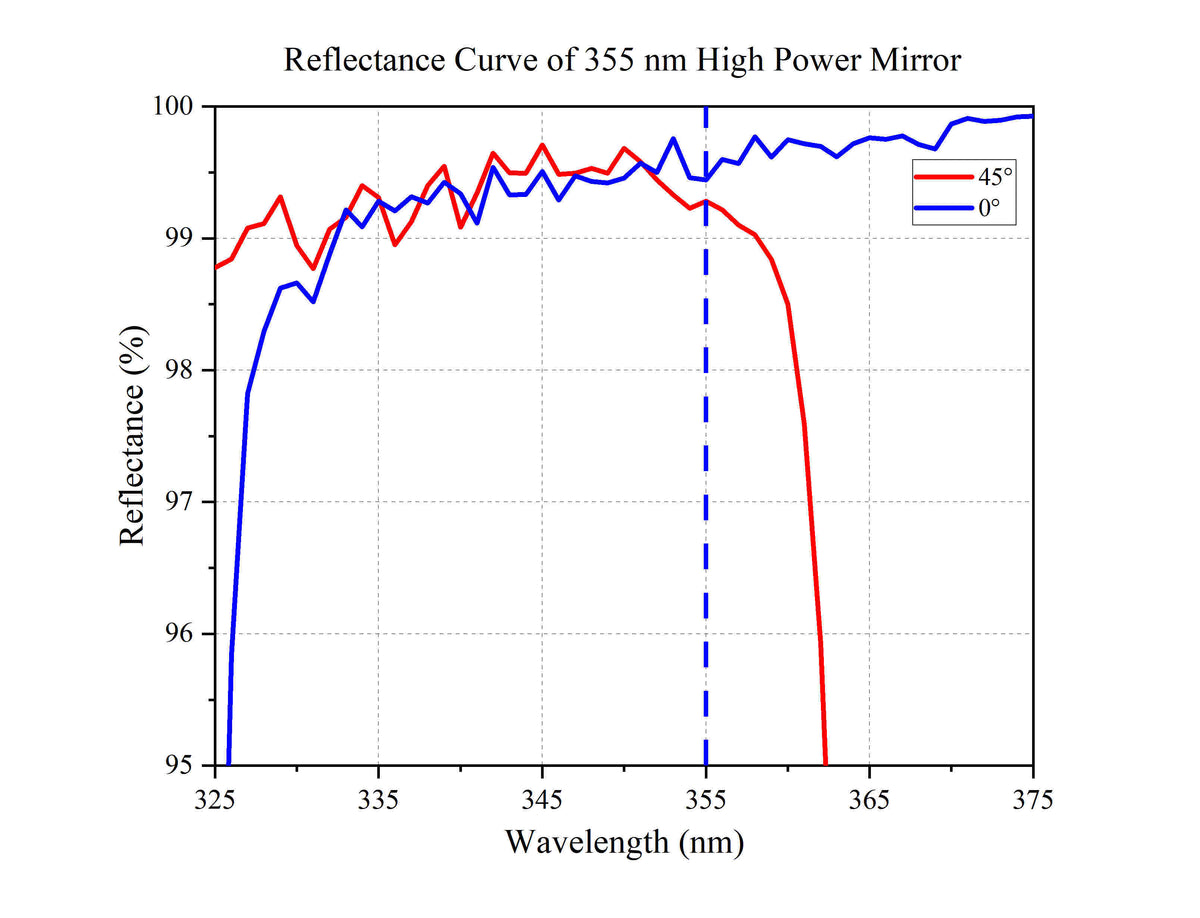

Reflectance Curve of 355 nm High Power Mirror
Reflectance Curve of 355 nm High Power Mirror

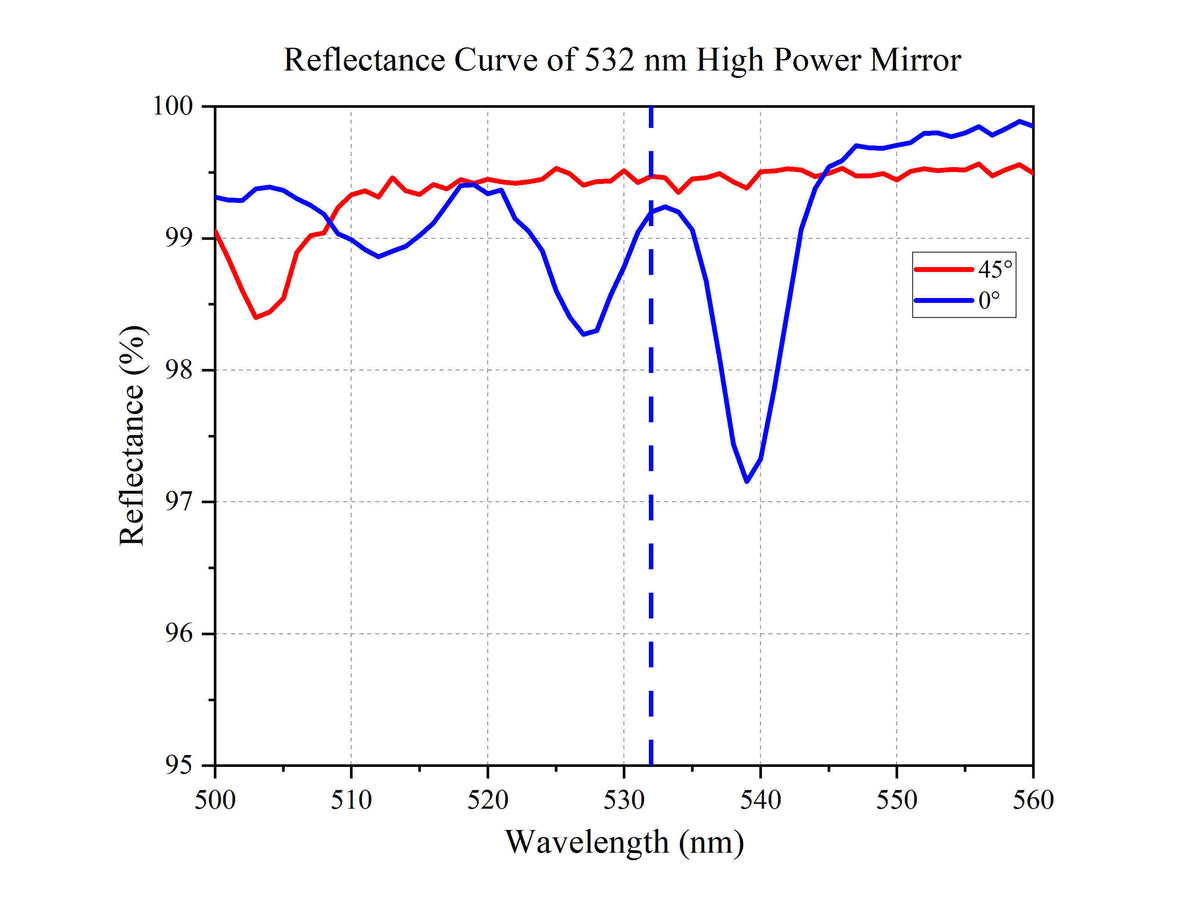

Reflectance Curve of 532 nm High Power Mirror
Reflectance Curve of 532 nm High Power Mirror

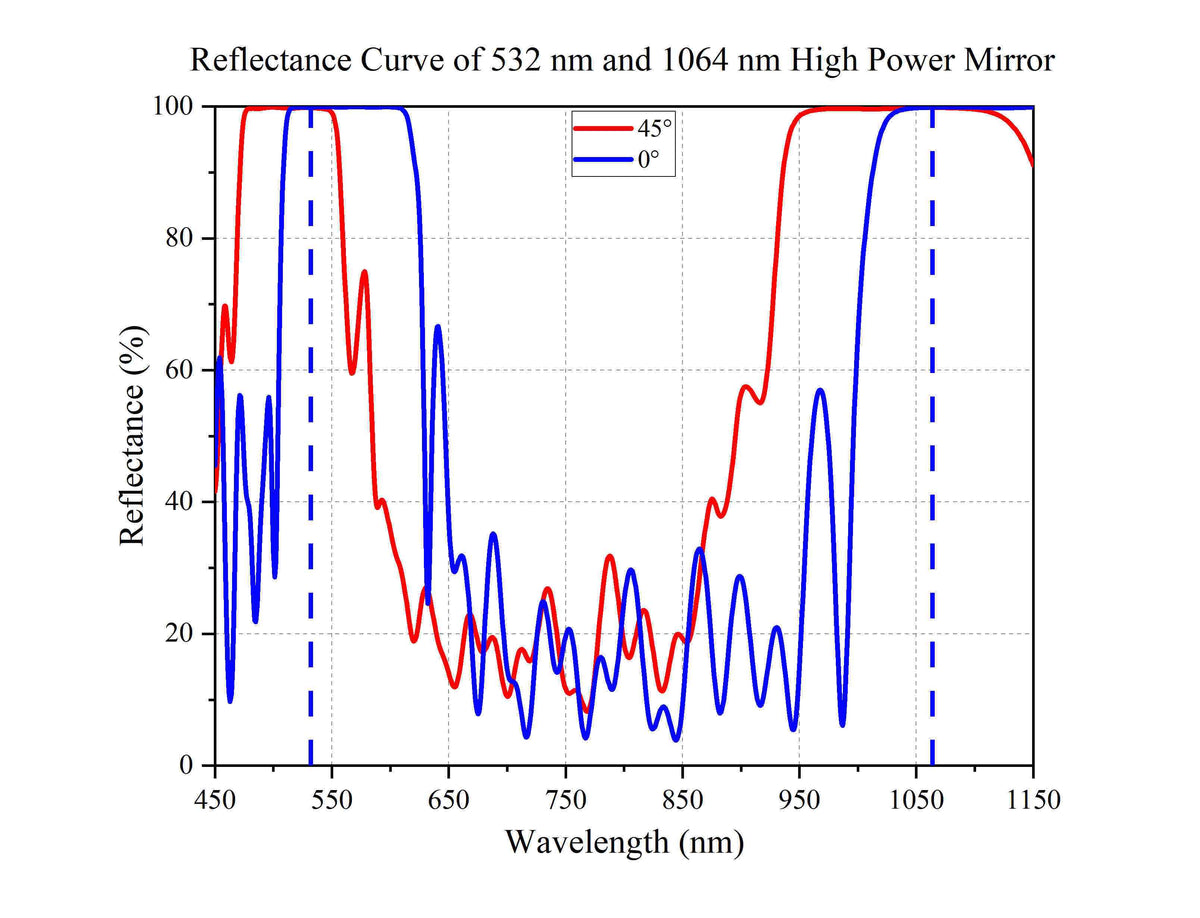

Reflectance Curve of 532 nm and 1064 nm High Power Mirror
Reflectance Curve of 532 nm and 1064 nm High Power Mirror

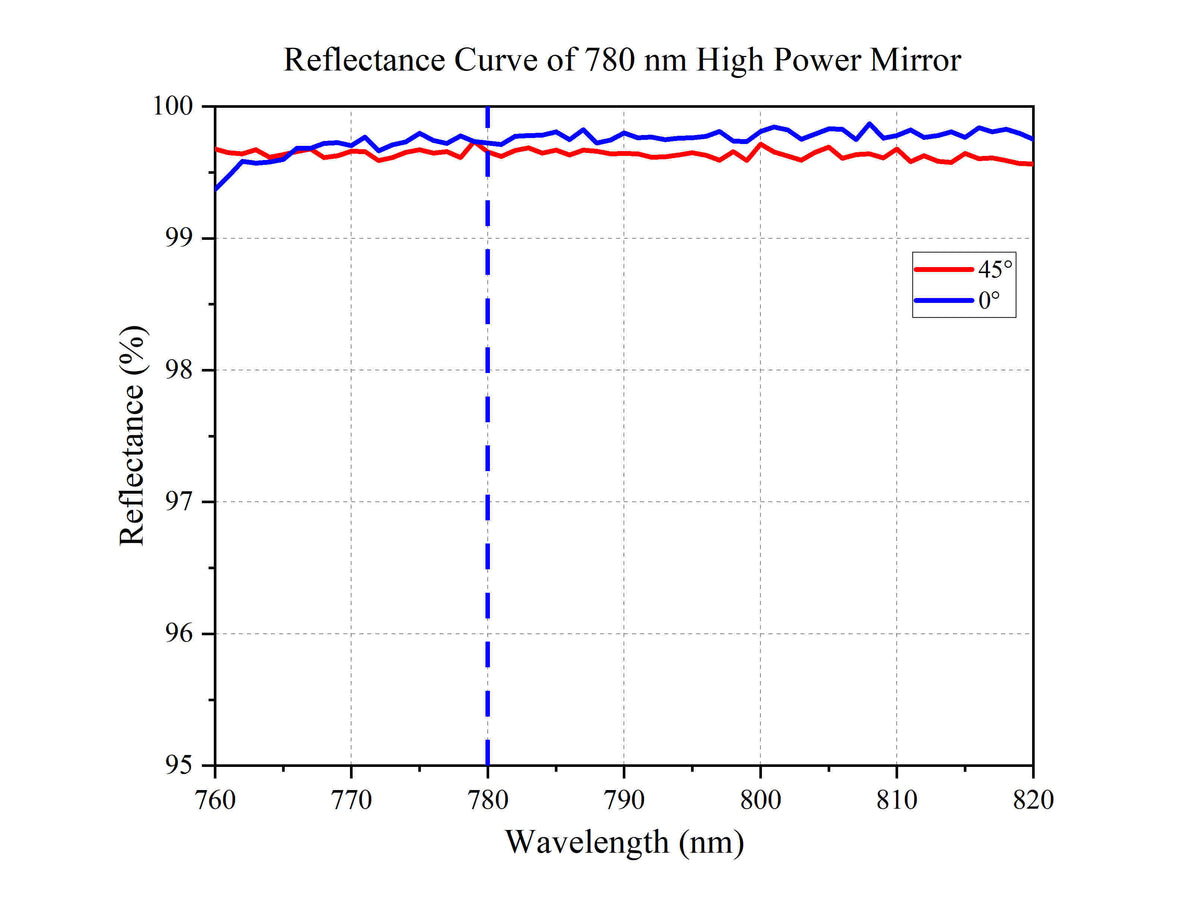

Reflectance Curve of 780 nm High Power Mirror
Reflectance Curve of 780 nm High Power Mirror

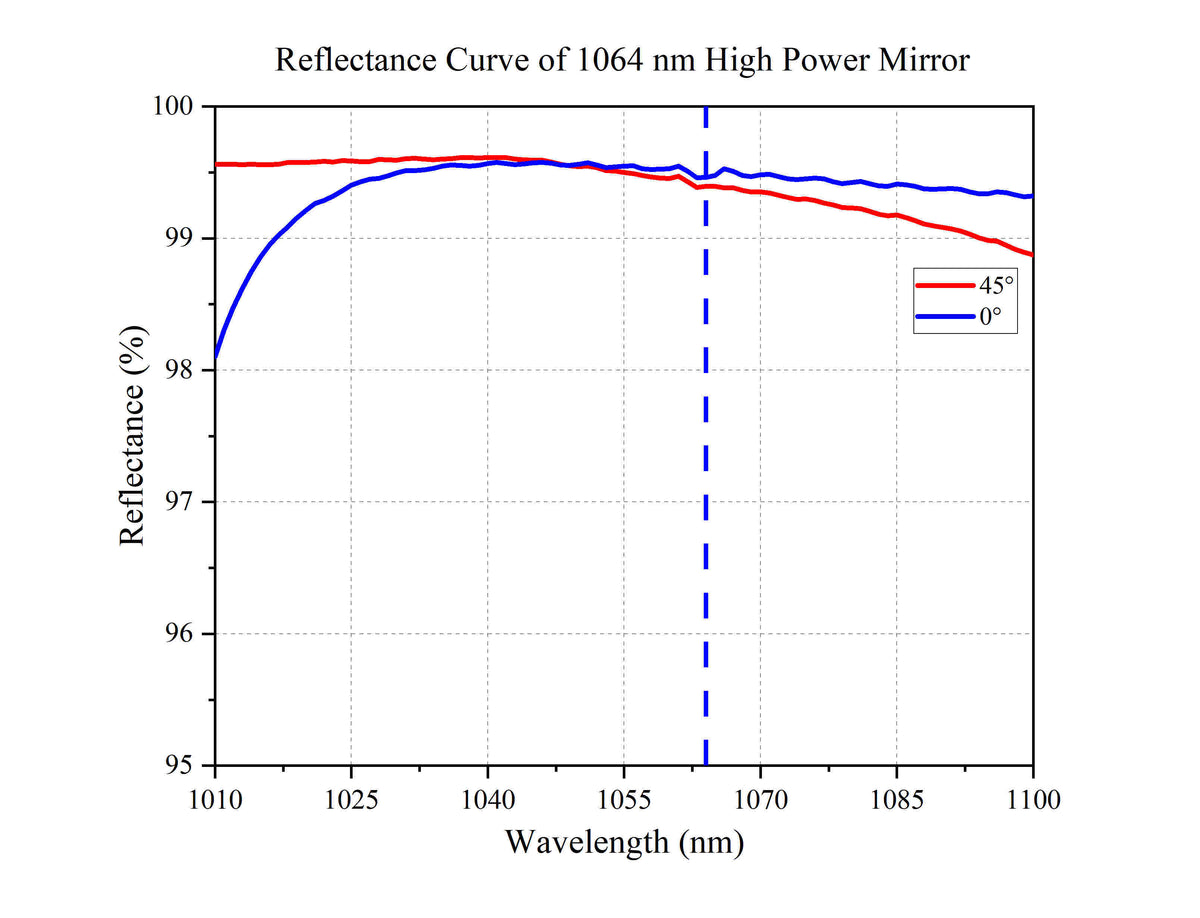

Reflectance Curve of 1064 nm High Power Mirror
Reflectance Curve of 1064 nm High Power Mirror

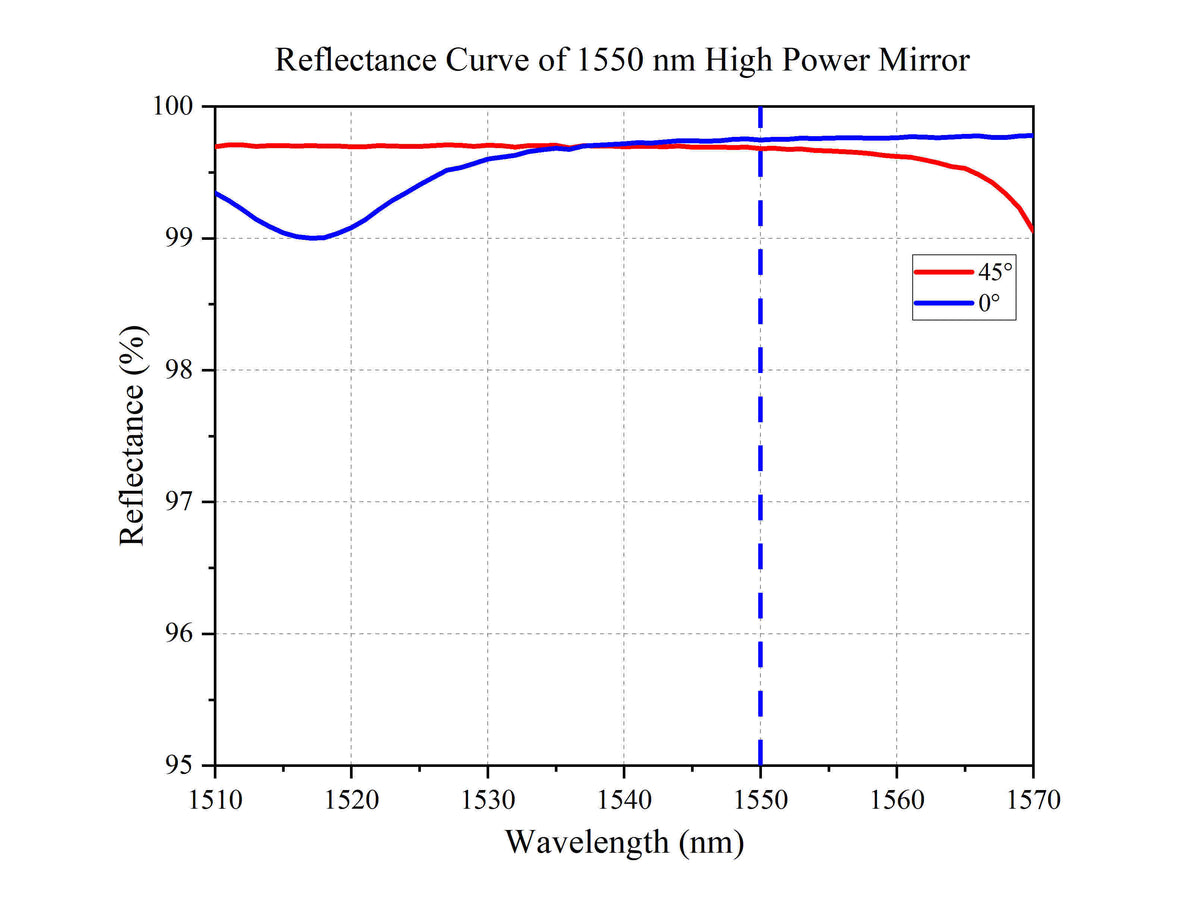

Reflectance Curve of 1550 nm High Power Mirror
Reflectance Curve of 1550 nm High Power Mirror
