product
WaveQuanta

High-power Laser Line Mirrors LPM10-532-HP-SP

LPM10-532-HP-SP
$223.13
In Stock
Key Specifications
Wavelength 532.0nm
Diameter 25.4mm
Reflectance 99.8%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

High-power Laser Line Mirrors LPM10-532-HP-SP

High-power Laser Line Mirrors — high-quality optical mirror.

Overview

LBTek Laser Line Mirrors are optimized for narrow-band, high-reflectance performance at common laser lines. HR coatings deliver R>99.5% with low absorption, suitable for kW-class CW and high-energy pulsed laser systems.

Key Features

  • Specifications available on request

Applications

  • Nd:YAG laser cavities
  • Excimer laser delivery
  • Laser machining
  • High-power laser steering
  • Industrial cutting/welding
Center Wavelength532.0 nm
PolarizationS and P
Reflectance99.8%
Diameter25.4 mm (+0.0/-0.25 mm)
Thickness6.35 mm (±0.25 mm)
Clear Aperture90.0 mm
Substrate MaterialUV Fused Silica
Surface Flatnessλ/10 @ 633 nm
Surface Quality (S-D)20/10 scratch-dig
Parallelism< 3 arcmin
Back SurfacePolished
Coating TypeDielectric HR
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download

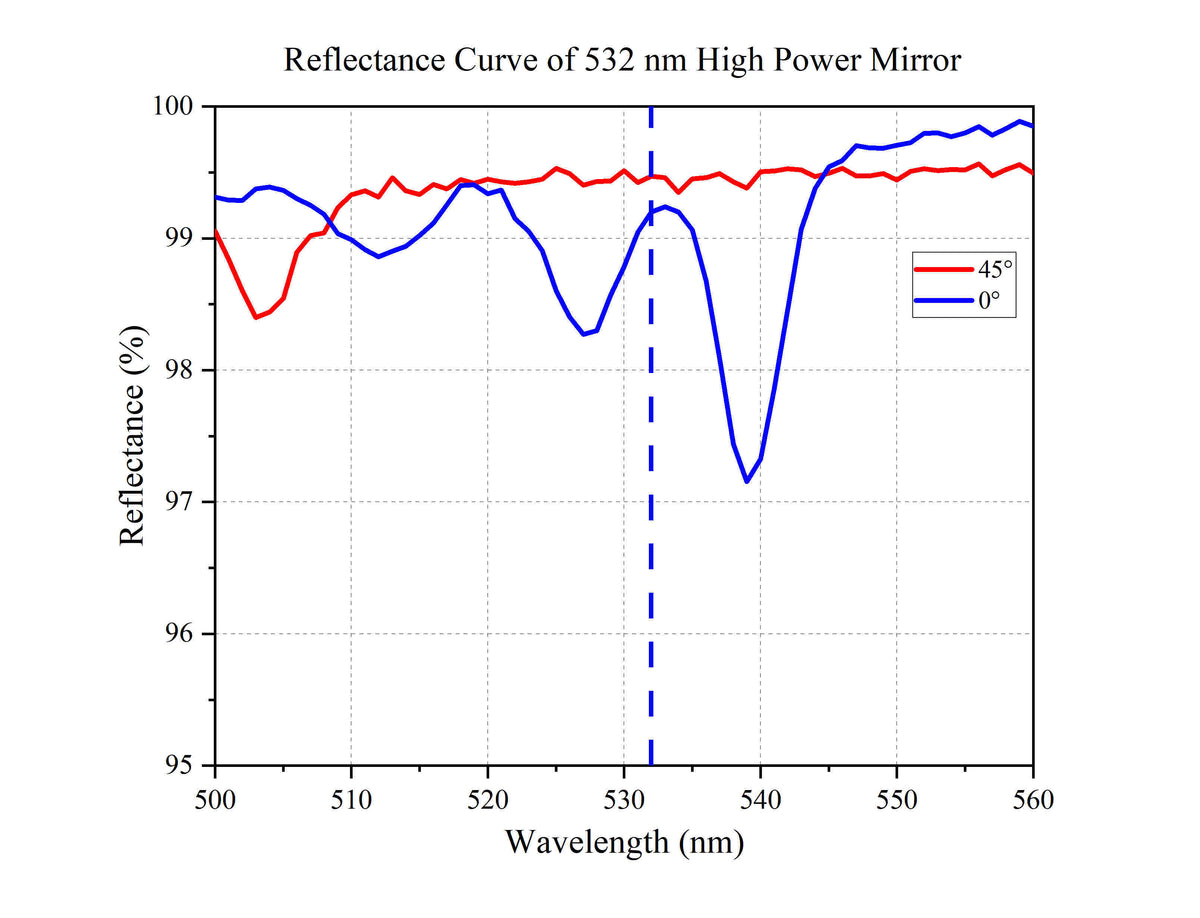

Reflectance Curve of 532 nm High Power Mirror - LBTek LPM10-532-HP-SP
Reflectance Curve of 532 nm High Power Mirror - LBTek LPM10-532-HP-SP

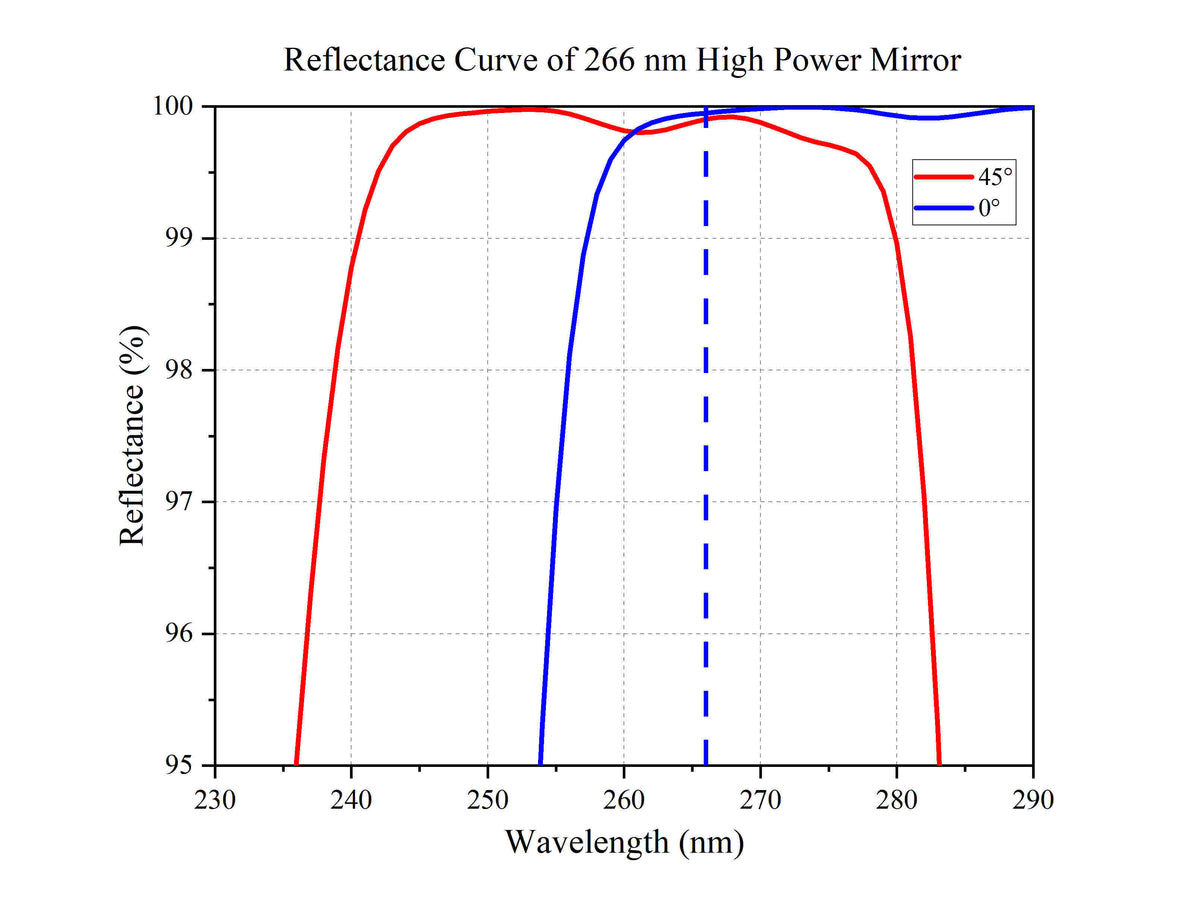

Reflectance Curve of 266 nm High Power Mirror
Reflectance Curve of 266 nm High Power Mirror

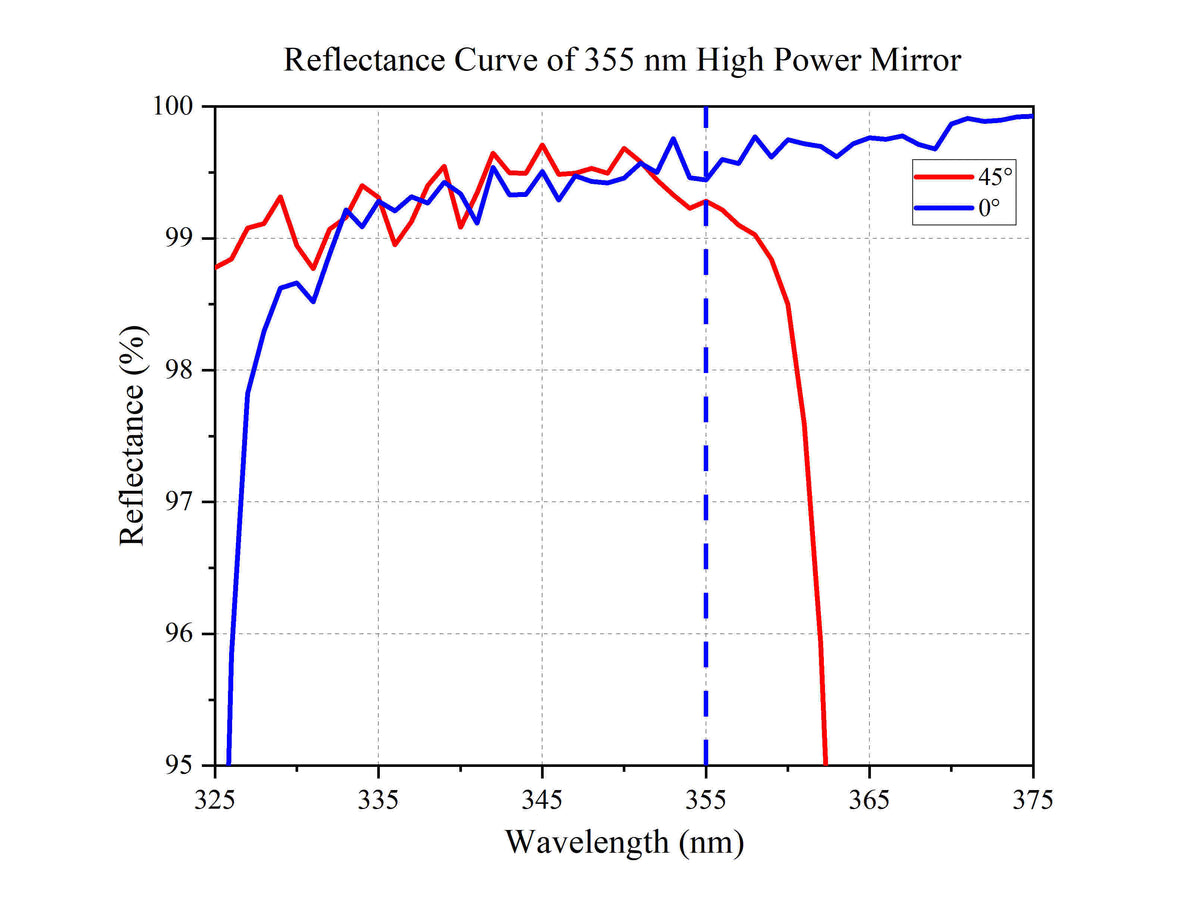

Reflectance Curve of 355 nm High Power Mirror
Reflectance Curve of 355 nm High Power Mirror
Reflectance Curve of 532 nm High Power Mirror
Reflectance Curve of 532 nm High Power Mirror

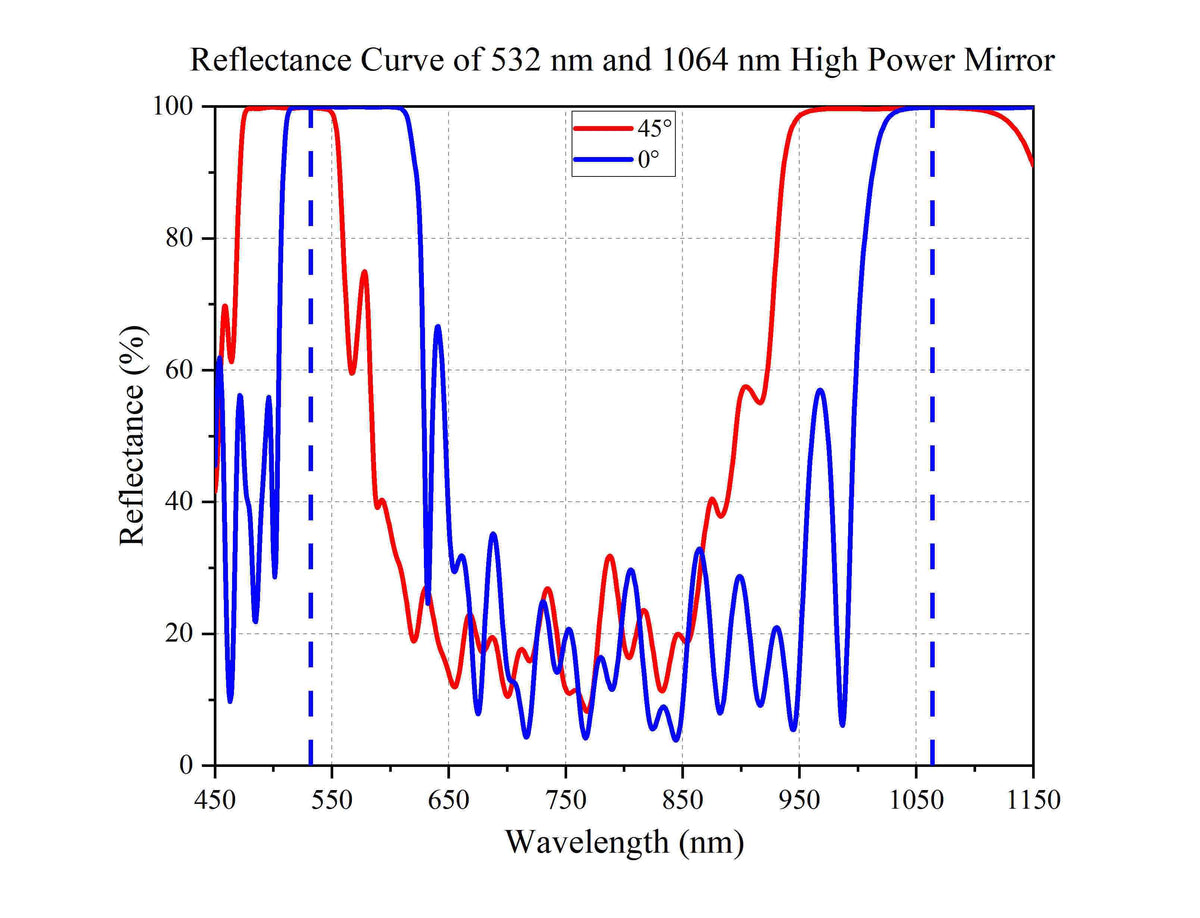

Reflectance Curve of 532 nm and 1064 nm High Power Mirror
Reflectance Curve of 532 nm and 1064 nm High Power Mirror

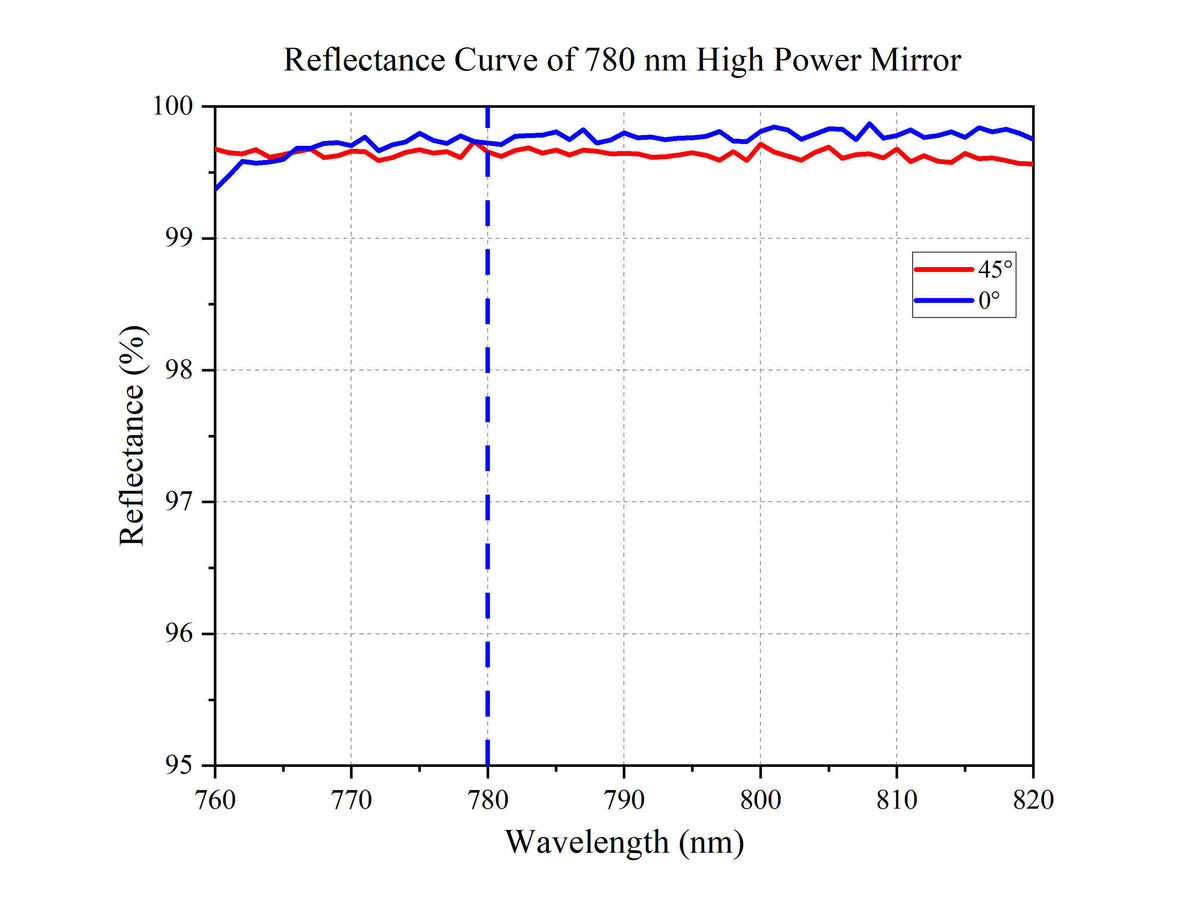

Reflectance Curve of 780 nm High Power Mirror
Reflectance Curve of 780 nm High Power Mirror

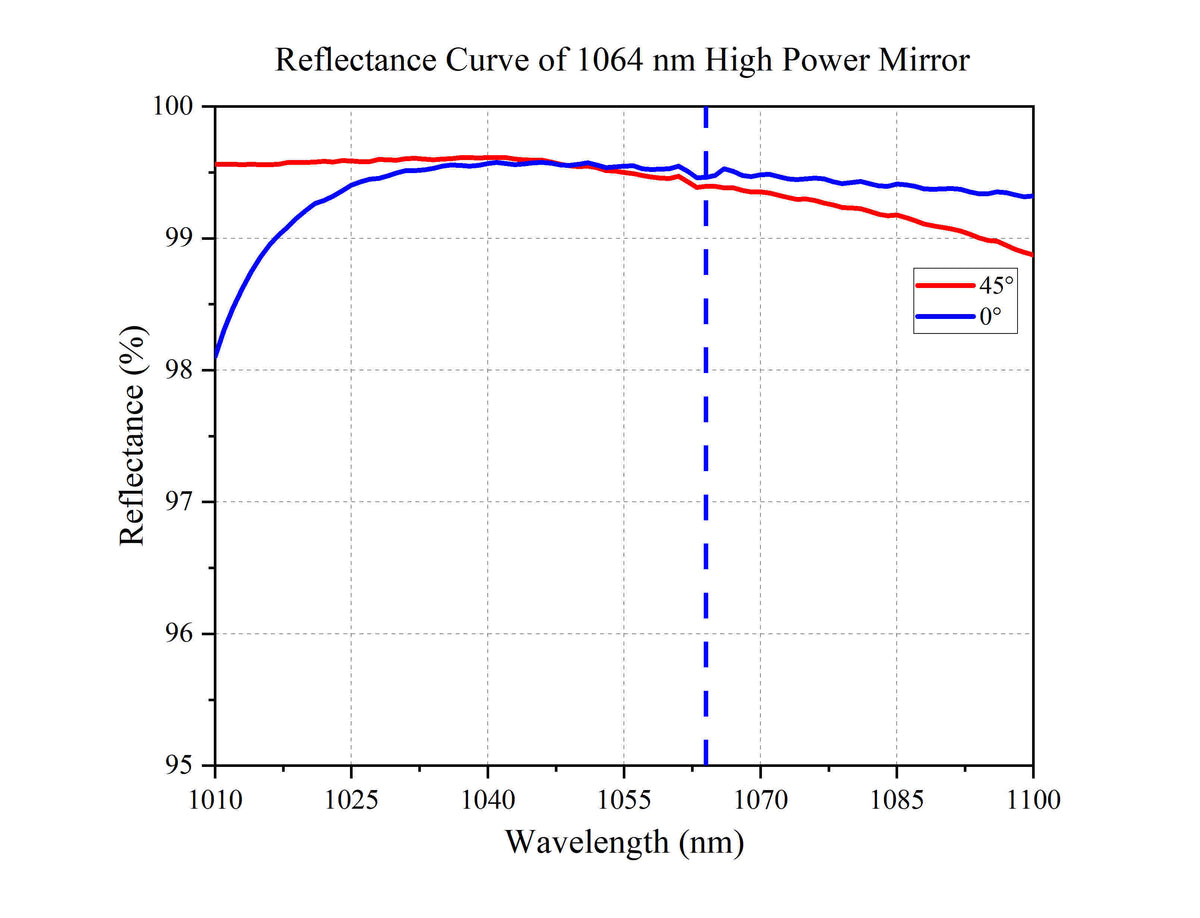

Reflectance Curve of 1064 nm High Power Mirror
Reflectance Curve of 1064 nm High Power Mirror

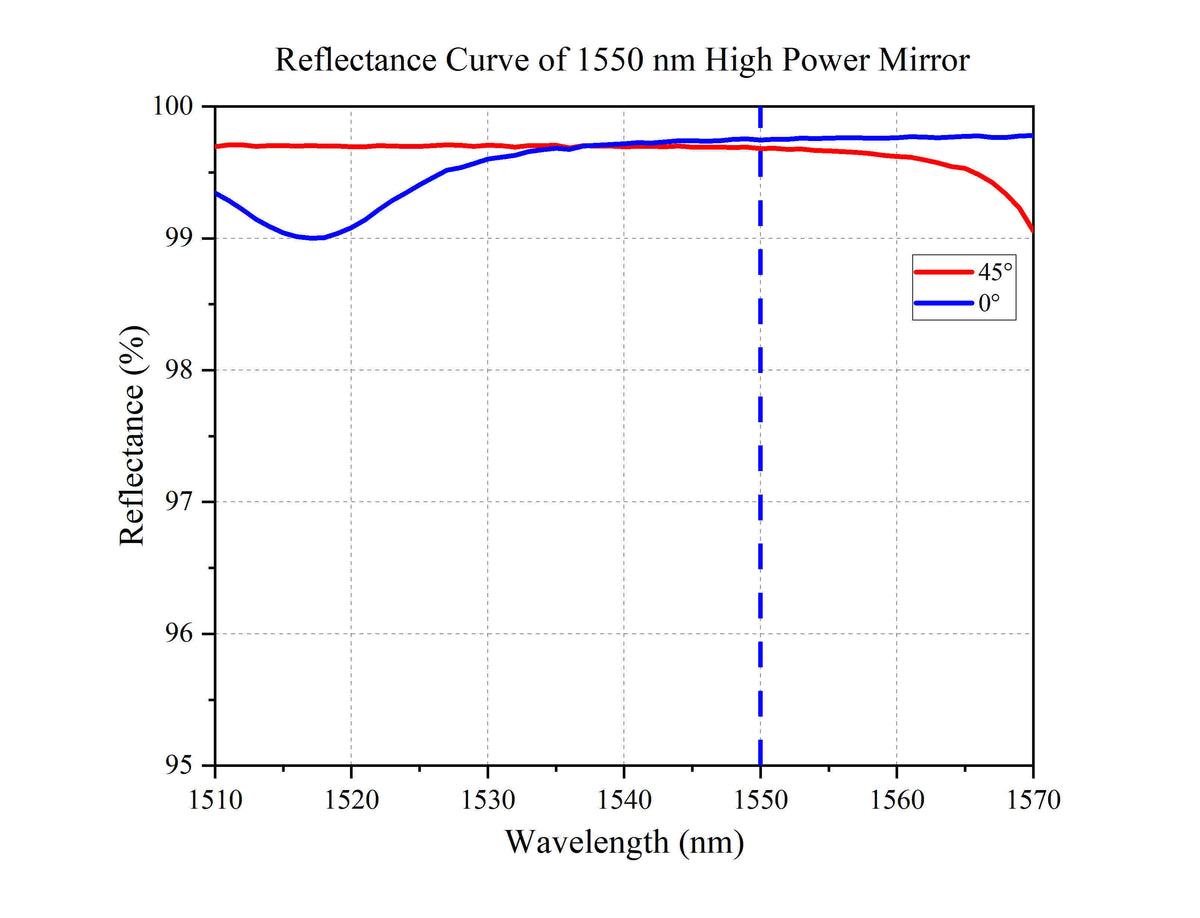

Reflectance Curve of 1550 nm High Power Mirror
Reflectance Curve of 1550 nm High Power Mirror
product
WaveQuanta

High-power Laser Line Reflectors LPM10-266-HP

LPM10-266-HP
λ 266.0nm
$220.34
Request Quote
product
WaveQuanta

High-power Laser Line Reflectors LPM10-355-HP

LPM10-355-HP
λ 355.0nm
$72.52
Request Quote
product
WaveQuanta

High-power Laser Line Reflectors LPM10-532-HP

LPM10-532-HP
λ 532.0nm
$72.52
Request Quote
product
WaveQuanta

High-power Laser Line Reflectors LPM10-780-HP

LPM10-780-HP
λ 780.0nm
$226.84
Request Quote
product
WaveQuanta

High-power Laser Line Reflectors LPM10-1064-HP

LPM10-1064-HP
λ 1064.0nm
$72.52
Request Quote
product
WaveQuanta

High-power Laser Line Reflectors LPM10-1550-HP

LPM10-1550-HP
λ 1550.0nm
$226.84
Request Quote
product
WaveQuanta

High-power Laser Line Reflectors LPM10-266P-HP

LPM10-266P-HP
λ 266.0nm
$220.34
Request Quote

Product Family: High-power Laser Line Mirrors (48 variants)

Product ▴▾ SKU Size ▴▾ Clear Aperture ▴▾ Operating Wavelength ▴▾
High-power Laser Line Mirrors LPM10-532-HP-SP Current LPM10-532-HP-SP — — —
High-power Laser Line Reflectors LPM10-266-HP LPM10-266-HP 25.4 mm >90%CA 266 nm View
High-power Laser Line Reflectors LPM10-355-HP LPM10-355-HP 25.4 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM10-532-HP LPM10-532-HP 25.4 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM10-780-HP LPM10-780-HP 25.4 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM10-1064-HP LPM10-1064-HP 25.4 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM10-1550-HP LPM10-1550-HP 25.4 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM10-266P-HP LPM10-266P-HP 25.4 mm >90%CA 266 nm View
High-power Laser Line Reflectors LPM10-532P-HP LPM10-532P-HP 25.4 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM10-780P-HP LPM10-780P-HP 25.4 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM10-1550P-HP LPM10-1550P-HP 25.4 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM10-355P-HP LPM10-355P-HP 25.4 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM10-1064P-HP LPM10-1064P-HP 25.4 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM10-532-1064-HP LPM10-532-1064-HP 25.4 mm >90%CA 532 nm&1064 nm View
High-power Laser Line Reflectors LPM05-532-1064-HP LPM05-532-1064-HP 12.7 mm >90%CA 532 nm&1064 nm View
High-power Laser Line Reflectors LPM05-355-HP LPM05-355-HP 12.7 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM05-355P-HP LPM05-355P-HP 12.7 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM05-532-HP LPM05-532-HP 12.7 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM05-532P-HP LPM05-532P-HP 12.7 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM05-780-HP LPM05-780-HP 12.7 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM05-780P-HP LPM05-780P-HP 12.7 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM05-1064-HP LPM05-1064-HP 12.7 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM05-1064P-HP LPM05-1064P-HP 12.7 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM05-1550-HP LPM05-1550-HP 12.7 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM05-1550P-HP LPM05-1550P-HP 12.7 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM20-355-HP LPM20-355-HP 50.8 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM20-355P-HP LPM20-355P-HP 50.8 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM20-532-HP LPM20-532-HP 50.8 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM20-532P-HP LPM20-532P-HP 50.8 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM20-780-HP LPM20-780-HP 50.8 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM20-780P-HP LPM20-780P-HP 50.8 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM20-1064-HP LPM20-1064-HP 50.8 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM20-1064P-HP LPM20-1064P-HP 50.8 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM20-1550-HP LPM20-1550-HP 50.8 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM20-1550P-HP LPM20-1550P-HP 50.8 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM12-266-HP LPM12-266-HP 30.0 mm >90%CA 266 nm View
High-power Laser Line Reflectors LPM12-266P-HP LPM12-266P-HP 30.0 mm >90%CA 266 nm View
High-power Laser Line Reflectors LPM12-355-HP LPM12-355-HP 30.0 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM12-355P-HP LPM12-355P-HP 30.0 mm >90%CA 355 nm View
High-power Laser Line Reflectors LPM12-532-1064-HP LPM12-532-1064-HP 30.0 mm >90%CA 532 nm&1064 nm View
High-power Laser Line Reflectors LPM12-532-HP LPM12-532-HP 30.0 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM12-532P-HP LPM12-532P-HP 30.0 mm >90%CA 532 nm View
High-power Laser Line Reflectors LPM12-780-HP LPM12-780-HP 30.0 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM12-780P-HP LPM12-780P-HP 30.0 mm >90%CA 780 nm View
High-power Laser Line Reflectors LPM12-1064-HP LPM12-1064-HP 30.0 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM12-1064P-HP LPM12-1064P-HP 30.0 mm >90%CA 1064 nm View
High-power Laser Line Reflectors LPM12-1550-HP LPM12-1550-HP 30.0 mm >90%CA 1550 nm View
High-power Laser Line Reflectors LPM12-1550P-HP LPM12-1550P-HP 30.0 mm >90%CA 1550 nm View
