Laser Beam Expander Mounts (Industrial Grade) AMM4-LBE-M22-A

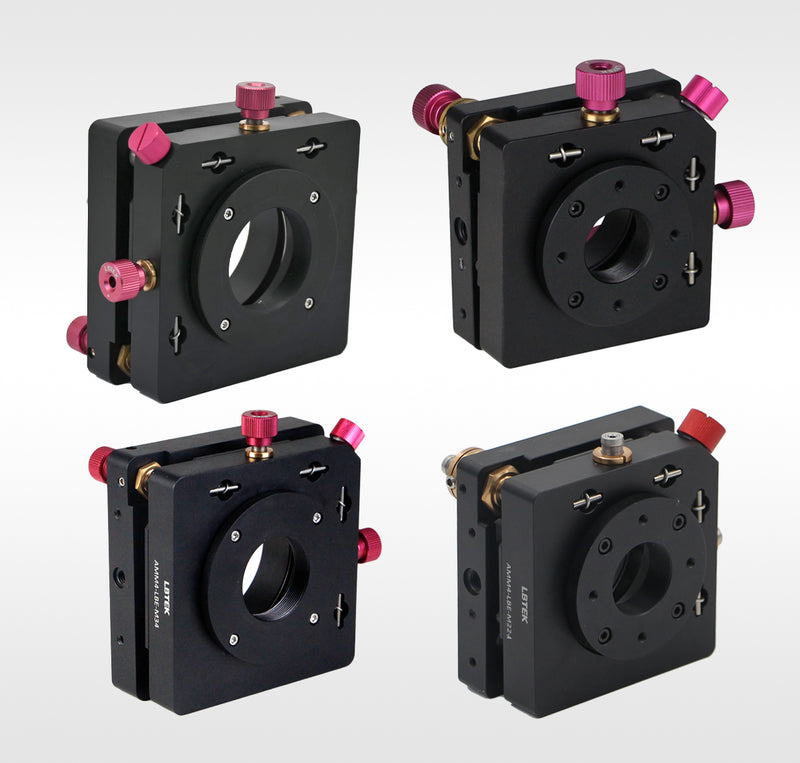

LBTEK offers Laser Beam Expander Mounts for large-aperture laser beam expanders. The AMM4-LBE-M22 mount comes with an integrated mounting flange featuring M22×0.75 mm threads, while the AMM4-LBE-M34 mount has an M34×1.0 mm threaded flange. The AMM4-LBE-SM1.5 mount is equipped with SM1.5 threads for mounting the VBE-532-2-10X beam expander. Additional flange specifications are available for separate purchase. To replace the flange, simply loosen the four M3 screws on the flange using a 2.0 mm hex wrench. Pitch/yaw adjustments are achieved via two M6×0.25 precision threaded pairs. The AMM4-LBE-M22 provides ±2° angular adjustment with 0.27° per rotation, while the AMM4-LBE-M34/SM1.5 offers ±3° adjustment at 0.19° per rotation. The threaded bushings feature a locking mechanism, adjustable with a 2.0 mm hex key. Additionally, the pitch/yaw front plate includes two M3 threaded holes for securing the position after adjustment, which can be tightened using a 2.5 mm hex key. The relative freedom limit between the front and rear plates utilizes a solid stainless steel plate for enhanced stability. X/Y axis adjustments are performed by two M6×0.25 precision threaded pairs, providing ±1.0 mm travel range. The mount includes centering lock knobs—once adjusted, simply tighten the knobs for long-term stable locking (Note: When readjusting X/Y after locking, first loosen the centering knob before making adjustments). Both sides of the mount feature an M6 threaded hole for mounting posts. Each purchase of an LBTEK Laser Beam Expander Mount includes one 2.0 mm hex key and one 2.5 mm hex key.
