Laser Beam Expander Mounts (Industrial Grade) — Model LBE-M30
✔ In Stock — Ships Today

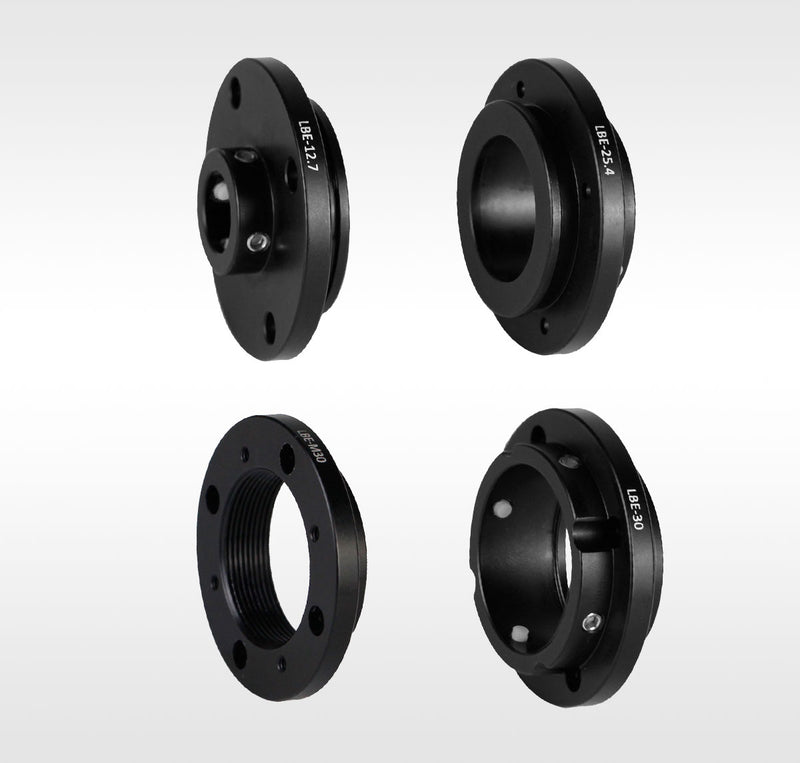

The Mounting Flange for Laser Beam Expander Mount provided by LBTEK is designed to be used with the AMM4-LBE-M22 mount, enabling the AMM4-LBE-M22 to accommodate various installation requirements. Multiple mounting flange specifications are available, including an M30×1.0 mm threaded mounting flange, as well as Ø30 mm/Ø25.4 mm/Ø12.7 mm smooth bore mounting flanges. To replace the desired mounting flange, simply loosen the four M3 screws on the AMM4-LBE-M22 mount's flange using a 2.0 mm hex key. For other specifications, please contact LBTEK Technical Support.
Key Features
- 6061-T6 aluminum alloy material
- Used with mount AMM4-LBE-M22
- Multiple specifications of mounting flanges available
Application
With the mount AMM4-LBE-M22 and beam expander
No specifications available for this product.
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Laser Beam Expander Mounts (Industrial Grade) (9 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Laser Beam Expander Mounts (Industrial Grade) LBE-40.5 |
LBE-40.5
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) LBE-M30 Current |
LBE-M30
| — | — | — | |
| Laser Beam Expander Mounts (Industrial Grade) LBE-30 |
LBE-30
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) LBE-25.4 |
LBE-25.4
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) LBE-12.7 |
LBE-12.7
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) AMM4-LBE-M22 |
AMM4-LBE-M22
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) AMM4-LBE-M34 |
AMM4-LBE-M34
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) AMM4-LBE-M22-A |
AMM4-LBE-M22-A
| — | — | — | View |
| Laser Beam Expander Mounts (Industrial Grade) AMM4-LBE-SM1.5 |
AMM4-LBE-SM1.5
| — | — | — | View |
