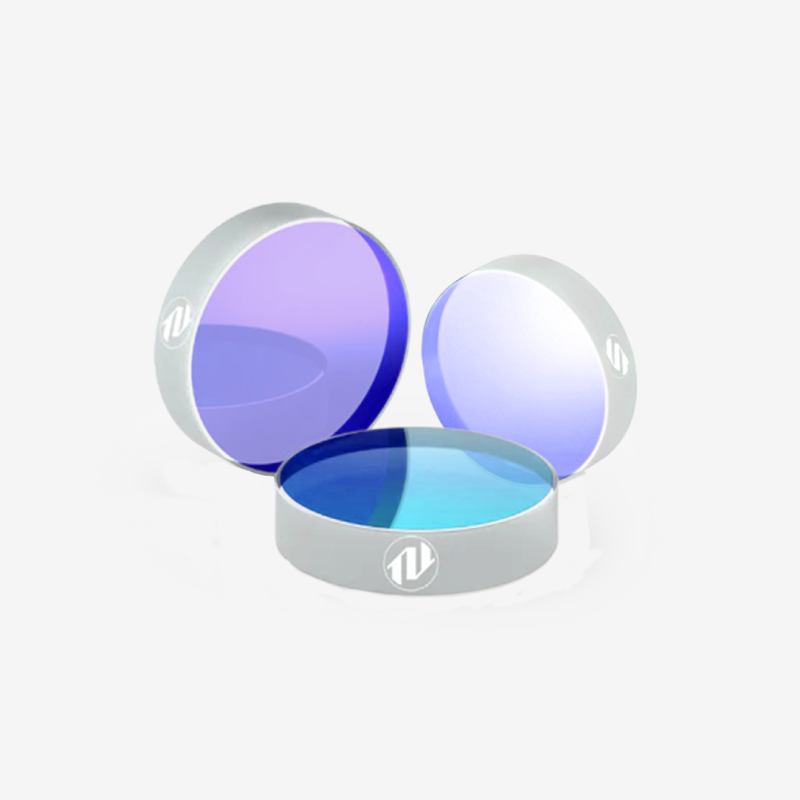

Low-Dispersion Broadband Mirror 45°
O-PM-25.4-6.0-BL437$151.78
In Stock
Key Specifications
Wavelength
925.0nm
Diameter
25.4mm
Design Tools
Time-Bandwidth Product
Check if your pulse is transform-limited
Pulse Stretching & Compression
Calculate GVD, TOD, and pulse broadening
Gaussian Beam Calculator
Model beam propagation through your optical system
Sellmeier Equation
Look up refractive index by wavelength
View all 49 calculators →
Complete Your Setup
RoHS
REACH
Overview
Broadband low-dispersion mirror for broadband ultrafast applications. Wide reflectance bandwidth for OPCPA, supercontinuum, and white-light routing.
Applications
- OPCPA and OPA beam routing
- Supercontinuum and white-light delivery
- Few-cycle pulse compression chains
- Broadband interferometry
Construction & Performance
- Substrate: UVFS
- Coating: Dielectric Coating (R>99.5%@750-1100nm)
- Wavelength range: 750.0–1100.0 nm
- Angle of incidence: 45°
- Diameter: 25.4 mm (+0/-0.1mm)
- Thickness: 6.0 mm (+0/-0.1mm)
Storage & Handling
Store in clean, dry environment at 20–25°C and 40–60% relative humidity. Handle with lint-free gloves and avoid mechanical contact with optical surfaces. Clean using optical-grade solvents and lens tissue when necessary.
| Center Wavelength | 925.0 nm |
| Wavelength Range | 750.0 – 1100.0 nm |
| Angle of Incidence | 45° |
| GDD | Low GDD |
| Diameter | 25.4 mm (+0/-0.1mm) |
| Thickness | 6.0 mm (+0/-0.1mm) |
| Clear Aperture | >90% |
| Substrate | UVFS |
| Surface Flatness | λ/10 |
| Surface Quality | S1: 20-10 |
| Coating Type | Dielectric Coating |
| Coating Specification | R>99.5%@750-1100nm |
No documents available for this product.
No CAD drawings available for this product.
