Miniature Optical Mount (Industrial Grade) — Model AMD-1A
✔ In Stock — Ships Today

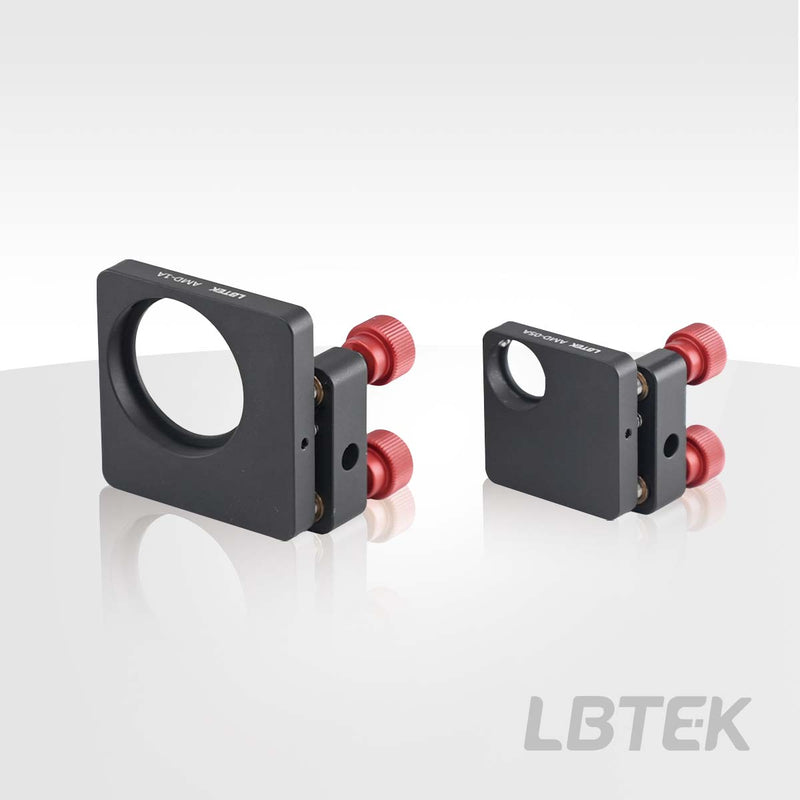

The LBTEK Compact Corner Mirror Mount positions the center of the mirror at the xy intersection of the pitch and yaw adjusters, enabling not only a clearer beam path but also gimbal movement. Gimbal movement refers to driving the adjusters for pitch and yaw by equal distances, causing the mirror to rotate about two virtual axes intersecting at the optical system's center. With a structure half the size of conventional mirror mounts, this compact corner mount is ideal for use in confined spaces. The AMD-1A accommodates Ø12.7 mm optics, while the AMD-05A fits Ø25.4 mm optics. The mount base features counterbored holes for M4 screws to facilitate secure mounting.
Key Features
- Rubber-tipped screw securing optical components
- Adjustable angle range ±4°
- Compact placement of optical components
- Applicable to optical component diameters: 12.7 mm, 25.4 mm
Application
Ø12.7 mm Post Supporting the Mount
| Applicable optical component size | Ø25.4 mm |
| Clear Aperture | Ø24 mm |
| Attribute 1539 | 6061-T6 Aluminum Alloy |
| Surface Coating | Black anodized |
| Attribute 2684 | ±4° |
| Weight | 0.038 kg |
| Attribute 2685 | M4×0.25/3 pcs |
| Optical component mounting method | Rubber-tipped screw |
| Topological Charge | 25.4 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
Product Family: Miniature Optical Mount (Industrial Grade) (3 variants)
| Product | SKU | Size | Clear Aperture | Operating Wavelength | |
|---|---|---|---|---|---|
| Miniature Optical Mount (Industrial Grade) AMD-1A Current |
AMD-1A
| — | — | — | |
| Miniature Optical Mount (Industrial Grade) AMD-05A |
AMD-05A
| — | — | — | View |
| Miniature Optical Mount (Industrial Grade) AMM-05S |
AMM-05S
| — | — | — | View |
