Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, AR Coating 600 nm-1050 nm, Mounted MAC90519-B

MAC90519-B
$124.02
In Stock
Key Specifications
Wavelength 700.0nm
Diameter 4.7mm
Reflectance 0.5%
Request Quote

Design Tools

Gaussian Beam Calculator Model beam propagation through your optical system LIDT Calculator Verify damage threshold for your laser parameters Wavelength \u2194 Wavenumber Convert between wavelength, frequency, and energy
View all 49 calculators →
RoHS REACH

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, AR Coating 600 nm-1050 nm, Mounted — Model MAC90519-B

Operating wavelength 700 nm-1100 nm, focal length 6.2 mm, Ø4.700 mm, substrate D-ZK3.

Product Description

  • Optical Material: D-ZK3/D-ZLAF52LA/D-LAK6
  • Operating Wavelength: 600 nm-1050 nm
  • Applications: Light concentration, collimation, and detection

Compared to ordinary spherical lenses, molded aspheric lenses do not introduce spherical aberration into the transmitted wavefront when focusing or collimating a beam. LBTEK uses D-ZK3, D-ZLAF52LA, and D-LAK6 glass to manufacture molded aspheric lenses in various sizes. These three materials have a higher refractive index than B270 glass, and the molded aspheric lenses made from them offer a larger numerical aperture (NA) and a lower f-number (f/#). To ensure optimal performance, when used for collimating a point light source, the beam should be incident on the flatter side of the lens; when used for focusing a collimated beam, the beam should be incident on the side with greater curvature. Compared to precision-polished aspheric lenses, molded aspheric lenses offer advantages such as better production consistency and suitability for mass production. LBTEK provides molded aspheric lenses with a 600–1050 nm anti-reflection coating, available in both unmounted and mounted options. Our lenses are finely processed with strict quality control, ensuring that LBTEK delivers high-quality lens products to users at reasonable prices.

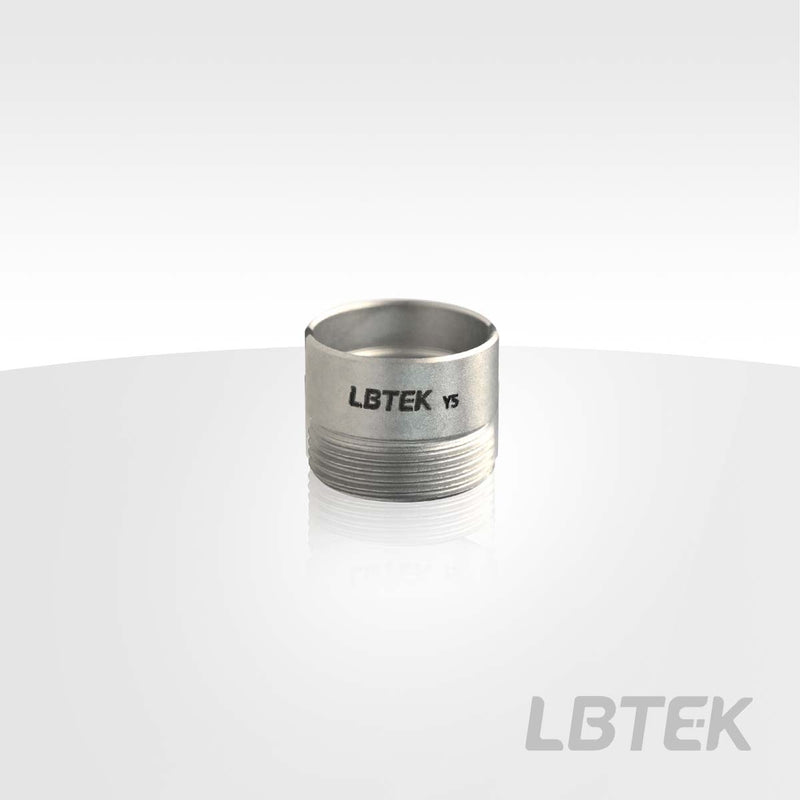

Molded Aspheric Lens, D-ZLAF52LA/D-ZK3/D-LAK6, AR Coating 600 nm-1050 nm, Mounted

  • Optical Element Material: D-ZLAF52LA/D-ZK3/D-LAK6
  • Operating Wavelength: 600 nm-1050 nm
  • Multiple diameter and focal length options available
  • Different component sizes correspond to different housing thread specifications
Clear ApertureØ3.70 mm(S1) Ø2.72 mm(S2)
Operating Wavelength700 nm-1100 nm
Diameter4.700 mm
Eccentricity<30 arcmin
Design Wavelength633 nm
Specification Sheet PDF — Download
CAD Drawing Download
3D Model (STL) STL — Download
Curve - Molded-Aspheric-Lenses-B-Coating：600-1050-nm
Curve - Molded-Aspheric-Lenses-B-Coating：600-1050-nm
