Motorized Angular Translation Stages EM-AS90B-100C1
EM-AS90B-100C1$2,393.56
In Stock
Design Tools
Photonics Calculators
Explore 49 free online calculators for photonics design
Unit Converters
Convert between wavelength, frequency, power, and more
View all 49 calculators →
RoHS
REACH
The Motorized Angular Translation Stages EM-AS90B-100C1 from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

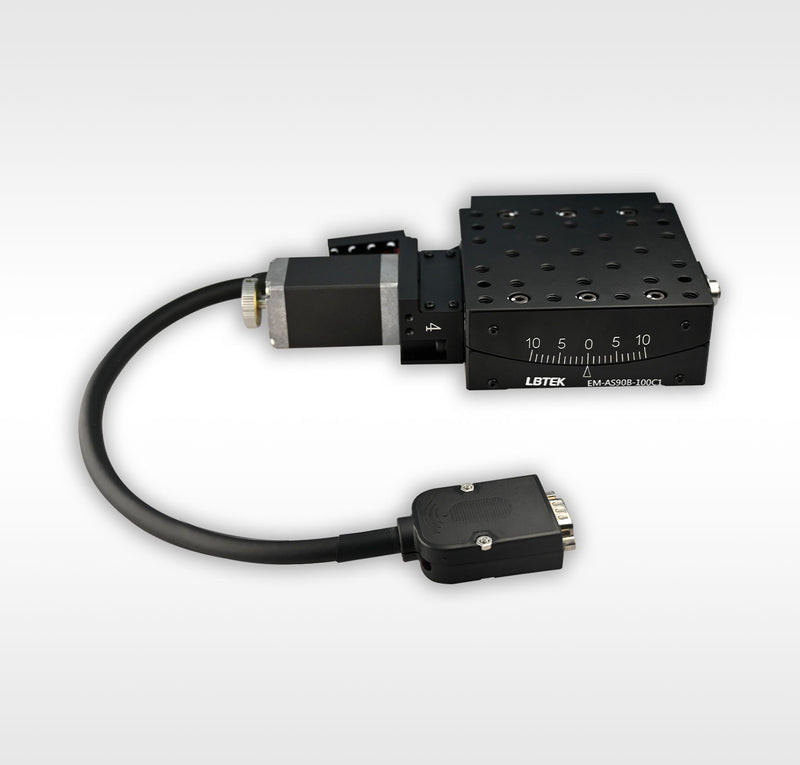

The five-phase stepper motorized angular stage from LBTEK is a precision angle adjustment translation stage driven by five-phase stepper motors, delivering accurate and stable height adjustment across its entire travel range. The stage motor can move loads weighing up to 5.0 kg on a 90 mm × 90 mm mounting plate, with minimal pitch and roll deviation and high repeatability. The stage features 25 M6 tapped holes for optomechanical component mounting, while four M6 countersunk holes on the base allow installation onto breadboards, optical tables, or other stages using M6 screws. This motorized stage requires pairing with a compatible controller, and LBTEK offers the EM-CS5-x series controllers for operation.
Key Features
- Stage size: 90 mm × 90 mm;
- Travel: ±8°;
- M6 mounting holes;
- Five-phase stepper motor;
Application
Motorized angular translation stage for optical component angle adjustment.
| Lead Time | In Stock |
No CAD drawings available for this product.
