The Motorized Vertical Translation Stages EM-LS90-20CZ from WaveQuanta is a high-performance Stages Actuators designed for micrometer-precision optical alignment and positioning. Available from stock for immediate shipment. Sourced directly from WaveQuanta, this product meets the high standards required for scientific research and precision photonics applications.
✔ In Stock — Ships Today

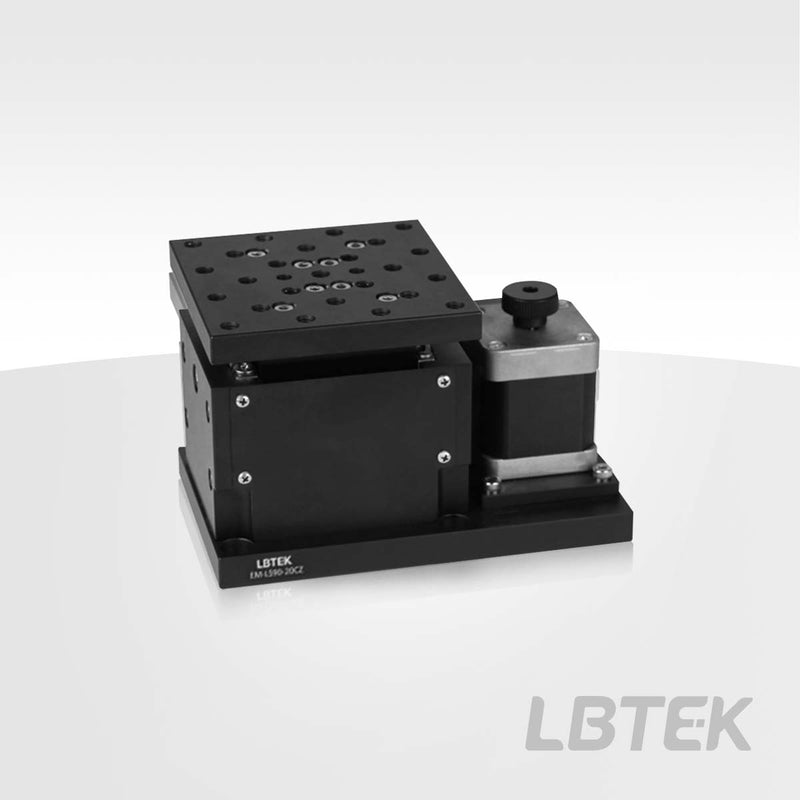

The LBTEK Motorized Vertical Translation Stage is a linear translation stage driven by a five-phase stepper motor. This stage provides precise and stable height adjustment throughout its entire travel range. The stage motor can move loads up to 5.0 kg on a 90 mm × 90 mm mounting platform with minimal pitch deviation and high repeatability. The stage surface features 25 M6 threaded holes for mounting optomechanical components, while the bottom has four M6 countersunk holes for installation onto breadboards, optical tables, or other translation stages using M6 screws. The translation stage requires an motorized translation stage controller for operation, and LBTEK offers the EM-CV5-x series controllers for user selection.
Key Features
- Table size: 90 mm × 90 mm
- Stroke: 20 mm
- Resolution: 0.5 μm / subdivision
- M6 mounting holes
Application
EM-LS90-20CZ Structure Diagram
| Material | 6061-T6 aluminum alloy |
| Surface Treatment | Black anodized |
| Tabletop size | 90 mm×90 mm |
| Attribute 1232 | 5 Kgf |
| stroke | 20 mm |
| Hex Key Wrenches Included | 4 M6 hex socket screws |
| Resolution | 0.5 μm / subdivision |
| Motor Type | Five-phase stepper motor |
| Drive Mechanism | Ball screw |
| Bearing Configuration | Cross roller guide |
| Adjustment Speed | 5 mm/s |
| Backlash | 1 μm |
| Position Accuracy | 30 μm |
| Wobble | 10 μm |
| Angular Resolution | ±0.5 μm |
| Thread hole specifications | Spacing 25 mm M6 threaded hole |
| Bidirectional Repeatability | 5 μm |
