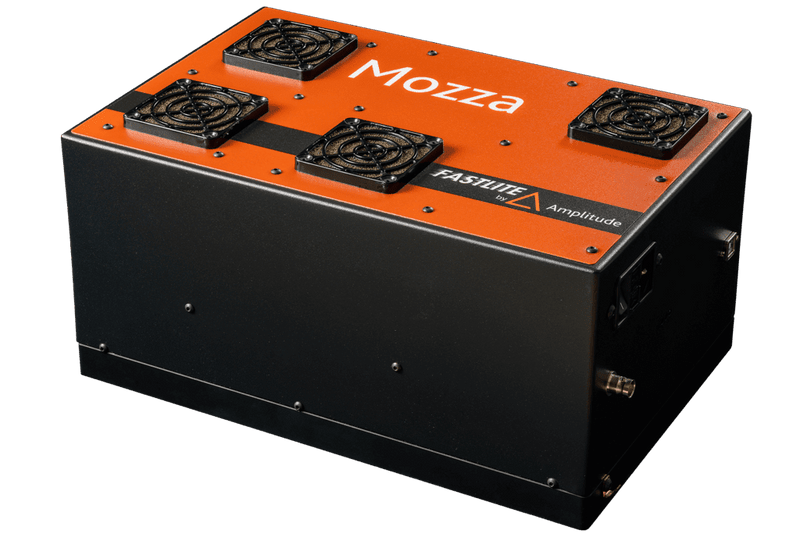

Mozza
Ultra-fast scanning MIR spectrometer
Overview
Mozza is a fast-scanning mid-infrared spectrometer optimized for ultrafast laser characterization. With scanning speeds up to 25 kHz and spectral resolution of 1 cm⁻¹, Mozza enables real-time spectral monitoring of MIR laser sources from 1 to 5 µm.
Key Features
- Spectral range: 1–5 µm
- Spectral resolution: 1 cm⁻¹
- Max scanning speed: 25 kHz
- Sensitivity down to 0.5 pJ per resolution point
- Compact design
Applications
- OPA/OPCPA output monitoring
- MIR spectroscopy
- Ultrafast laser diagnostics
- Required for Wizzler 2000 operation
| Spectral Resolution | 1.0 cm⁻¹ |
| Spectral Range | 1–5 µm |
| Spectral Range (cm⁻¹) | 2000–10000 cm⁻¹ |
| Spectral Resolution (cm⁻¹) | 5 cm⁻¹ |
| Scanning Speed | At the laser repetition rate up to 25 kHz |
| Sensitivity | Down to 0.5 pJ per resolution point |
| Dynamic Range | Up to 40 dB |
| Trigger Input | High level TTL |
| Input Beam Requirements | Focused on entrance slit or collimated |
| Polarization Requirement | Vertical |
| PC Requirements | Windows 10, 1 USB port, 1 GB RAM |
