Multi-Axis Optical Mounts (Industrial Grade) UAMM5-2A

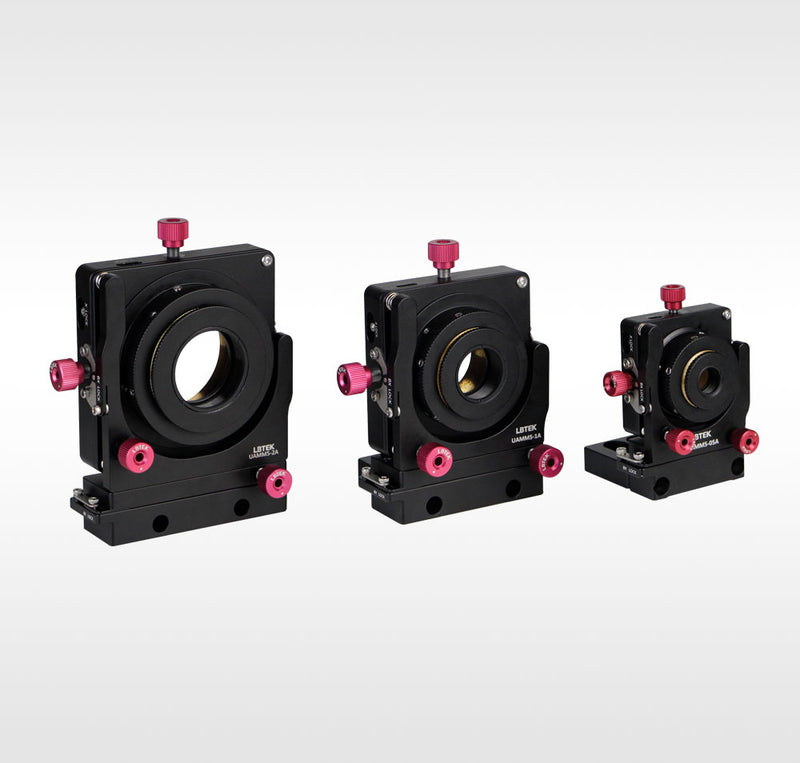

The LBTEK 5-Axis Optical Mounts provide precise adjustment and positioning in five dimensions. The central hole of the mount is threaded and comes with a knurled threaded adapter, allowing it to accommodate optical mirrors, objectives, or other types of optical components as needed. Both the threaded adapter and the central hole of the mount (except for the UAMM5-05A central hole) are equipped with compatible retaining rings. The UAMM5-05A 5-axis optical mount features an adapter with SM05 threads and includes one SM05R retaining ring, suitable for mounting Ø12.7 mm optical components. The UAMM5-1A 5-axis optical mount comes with an SM1-threaded adapter and one SM1R retaining ring, designed for Ø25.4 mm optical components. The central hole of the mount has M36×1 threads and includes two M36×1 retaining rings. The UAMM5-2A 5-axis optical mount is equipped with an SM1.5-threaded adapter and one SM1.5R retaining ring, suitable for Ø38.1 mm optical components. The central hole of the mount features SM2 threads and includes two SM2R retaining rings, accommodating Ø50.8 mm optical components.
