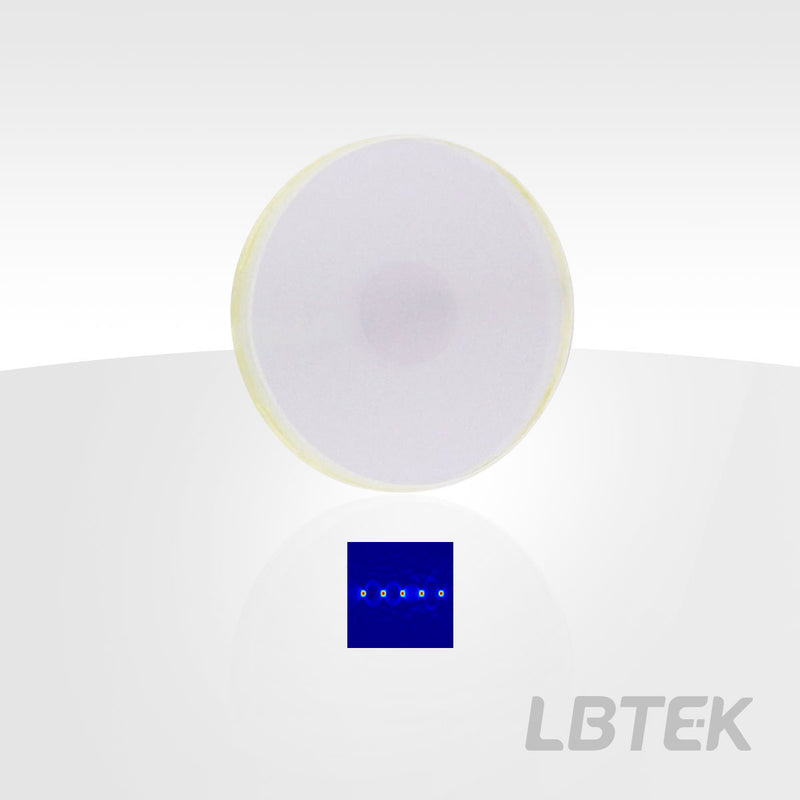

Multi-Focal DOE LCMF25-1064-F5-5-15

The LBTEK Multi-Focal DOE is a focus-shaping optical element generating multiple equally spaced, uniformly energetic focal points along the axial direction. It utilizes diffraction principles with high efficiency and uniformity, applicable for objective lenses.

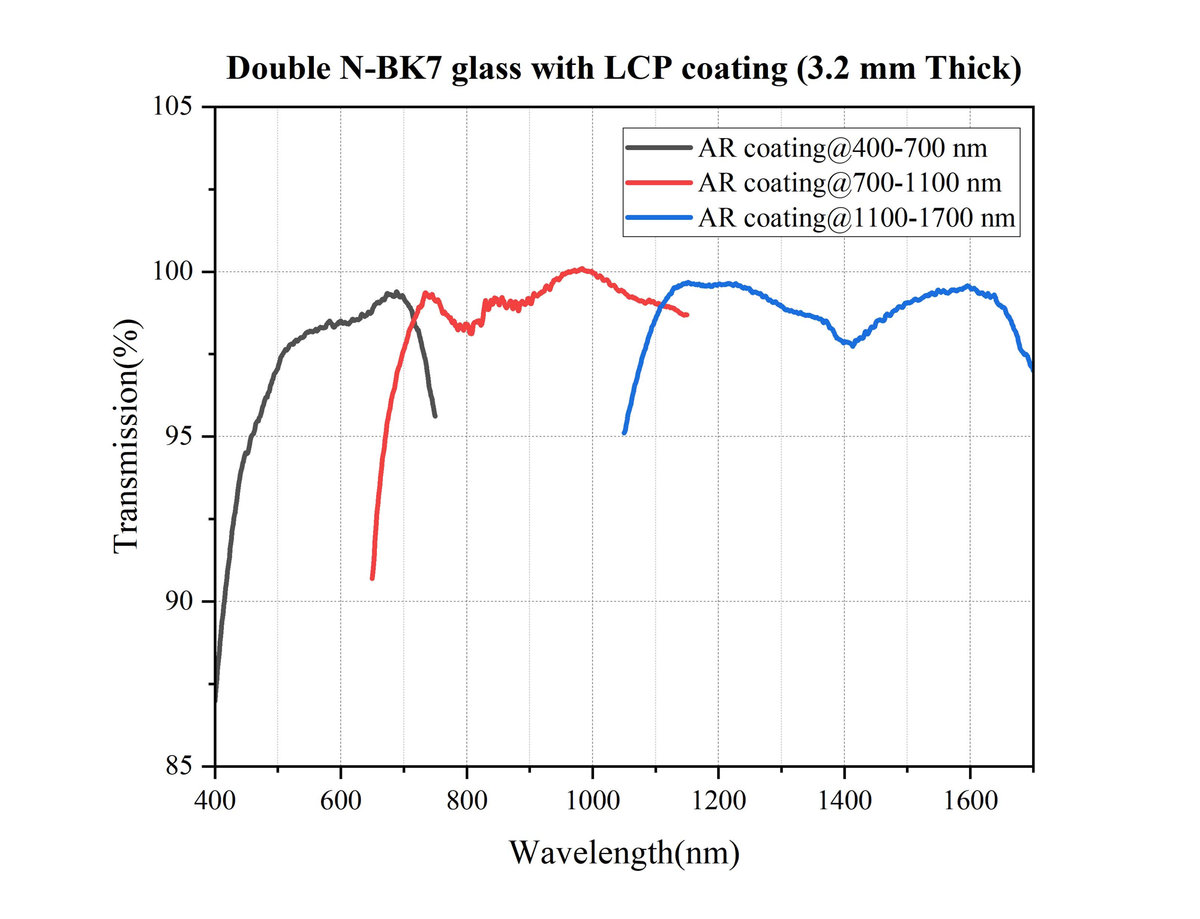

Made of Liquid Crystal Polymer/N-BK7 window material with a sandwich-style flat plate structure. The fast-axis orientation of liquid crystal molecules varies periodically along the radius, featuring λ/2 retardation.

The multi-focal DOE focuses incident light into a fixed number of equally spaced, uniformly distributed focal points along the axial direction through diffraction-based phase modulation. Primarily used for laser deep cutting of transparent materials like glass and sapphire.

Key Features

• Liquid Crystal Polymer/N-BK7 window material, sandwich flat plate structure

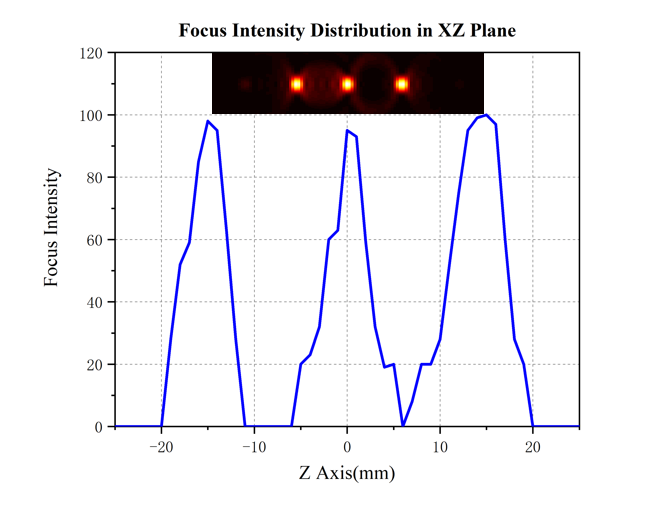

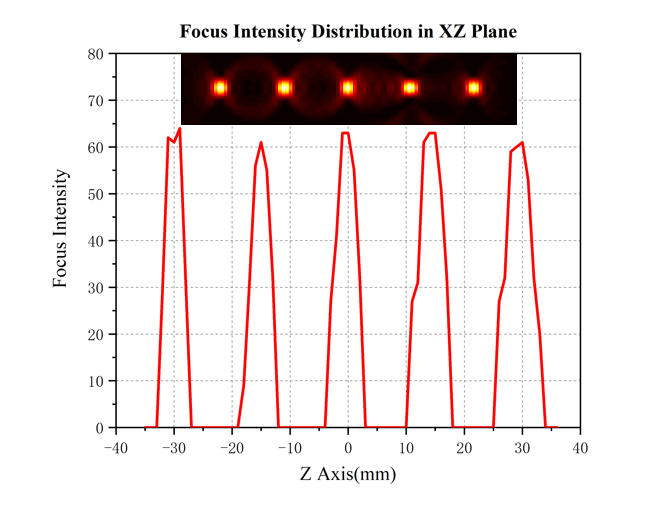

• Generates multiple equally spaced focal points with uniform energy
• High diffraction efficiency and focal energy uniformity >95%
• Applicable with standard objective lenses
• Flexible customization available (wavelengths 400-1700 nm)

Multi-Focal DOE Series

Operating wavelength 1064 nm. Available with 3 or 5 focal points. Component size Ø25.4x3.2 mm. Center offset <100 μm. Achieves deeper cutting with smoother, more uniform cutting surfaces compared to traditional methods.
