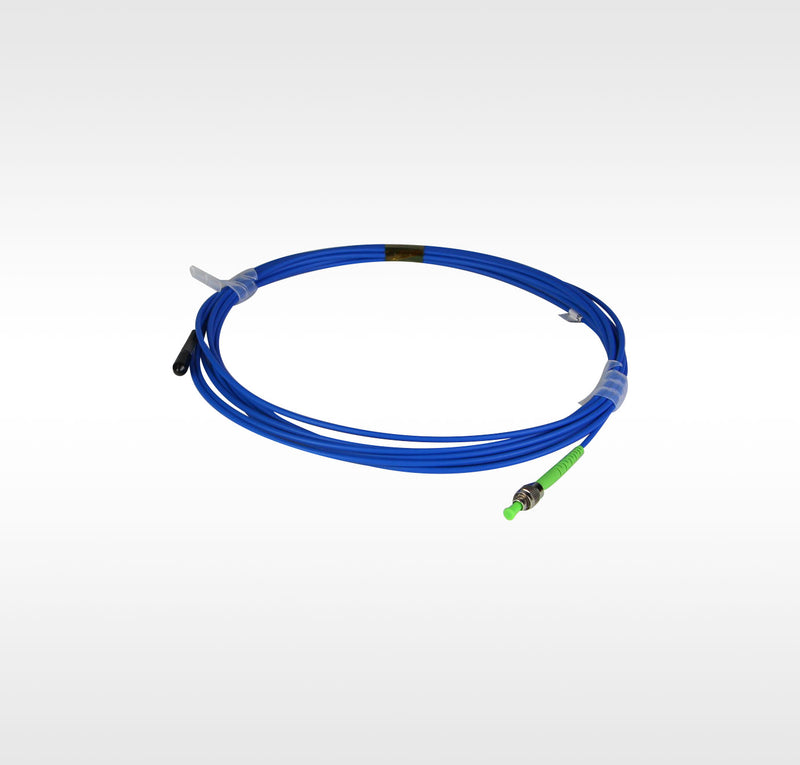

Non-magnetic polarization-maintaining fiber collimator PMFC795-2.5-6-APC
PMFC795-2.5-6-APC$589.26
In Stock
Key Specifications
Wavelength
795.0nm
Design Tools
View all 49 calculators →Complete Your Setup
RoHS
REACH
The FC/APC non-magnetic polarization-maintaining fiber collimator provided by LBTEK consists of a connector, optical fiber, and collimating head, which can effectively collimate and output the light transmitted in the fiber into free space. The product uses achromatic doublet lenses as optical components, with a working bandwidth of up to ±20nm. The fiber part adopts polarization-maintaining fiber, which can maintain the polarization state unchanged during propagation. Since the wavefront error of the doublet lens may increase during transmission, it is recommended to use it at the working distance position.
- FC/APC Connector
- Design Wavelength: 795nm
- Non-magnetic polarization-maintaining material used
| Operating Wavelength | 795 nm |
| Output spot diameter | 2.5±0.2 mm |
| Working distance | 100 mm |
| Fiber Type | Nufern PM780-HP |
| Connector Type | FC/APC |
| Fiber length | 6 m |
| Return Loss | 1.5 dB |
| Extinction ratio | ≥20 dB |
| Return Loss | ≥40 dB |
| Package Dimensions | φ5.0*25.5 mm |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.

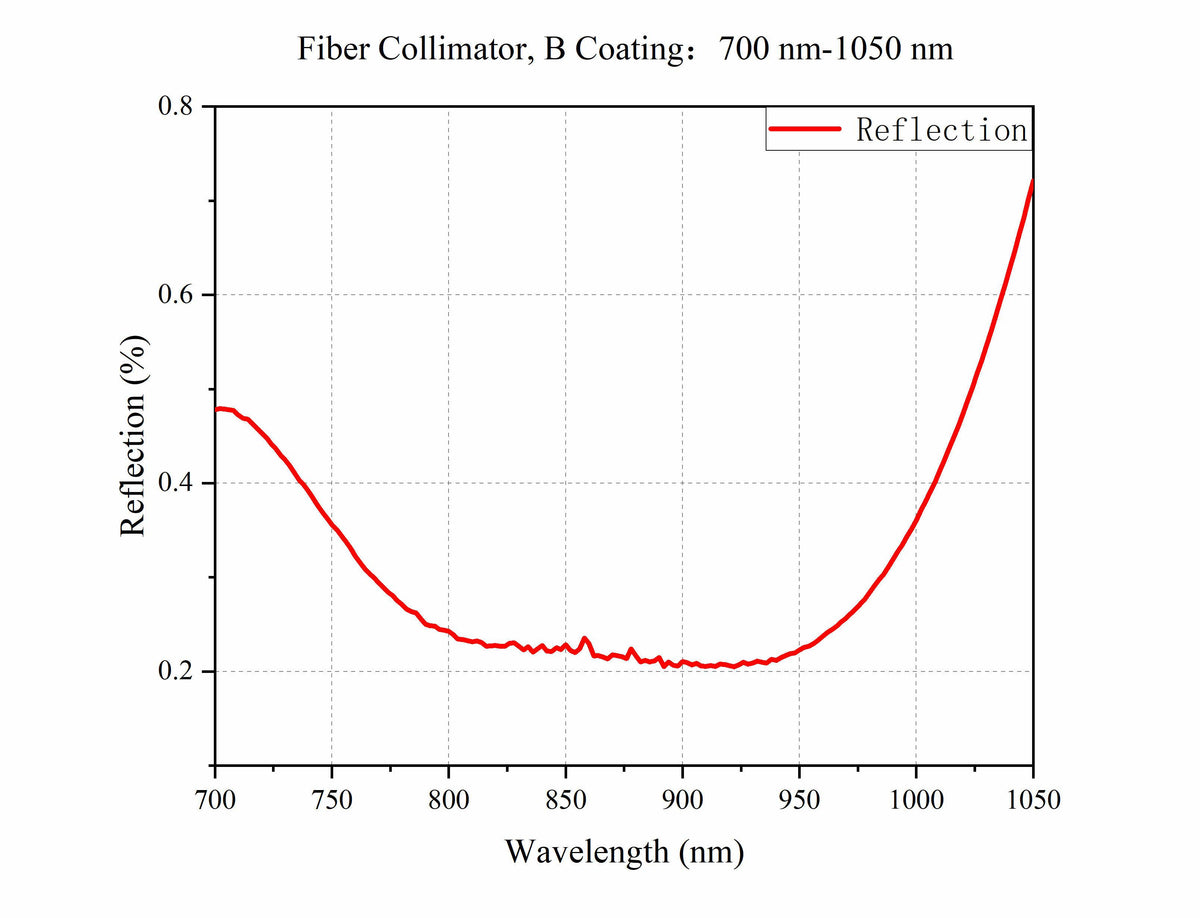

Curve - Fiber Collimator, B Coating：700 nm-1050 nm

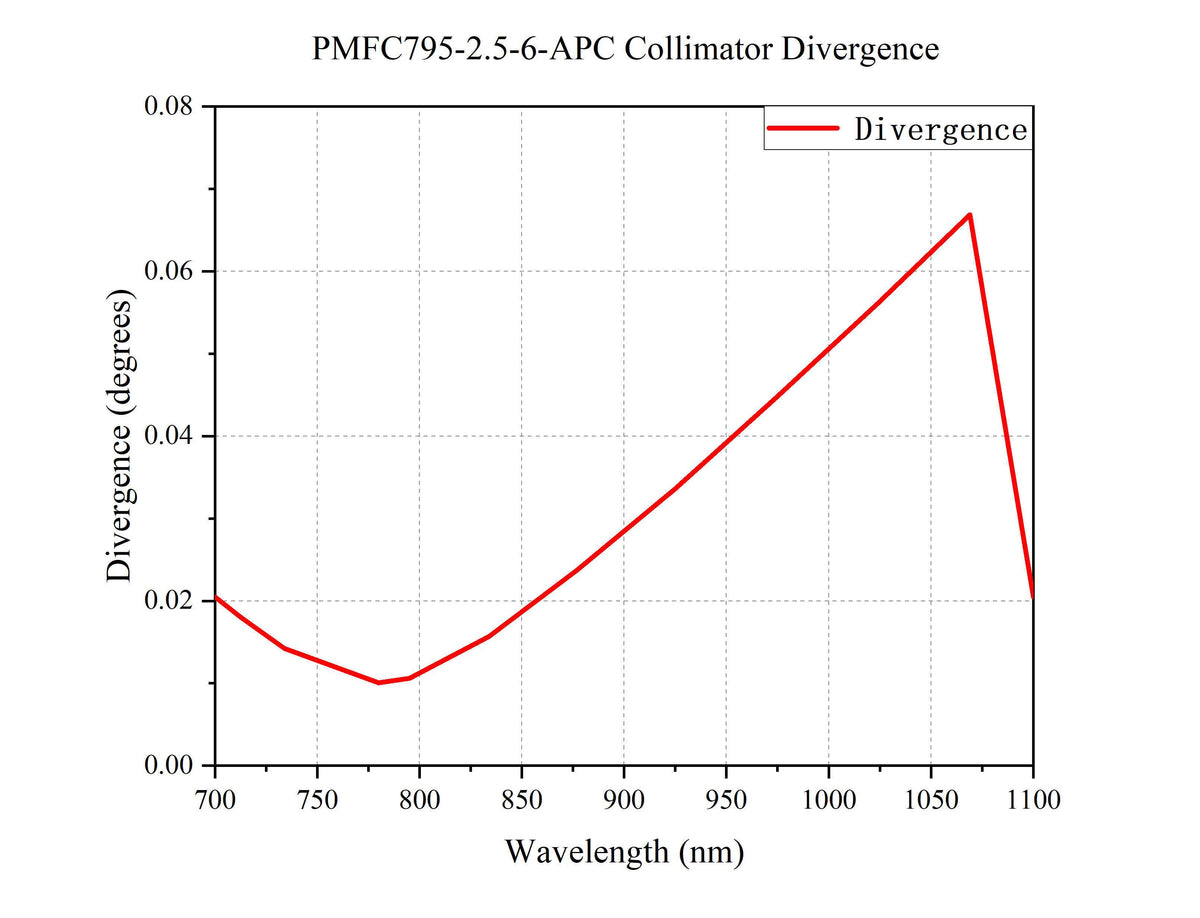

Curve - PNFC795-2.5-6-APC collimator
