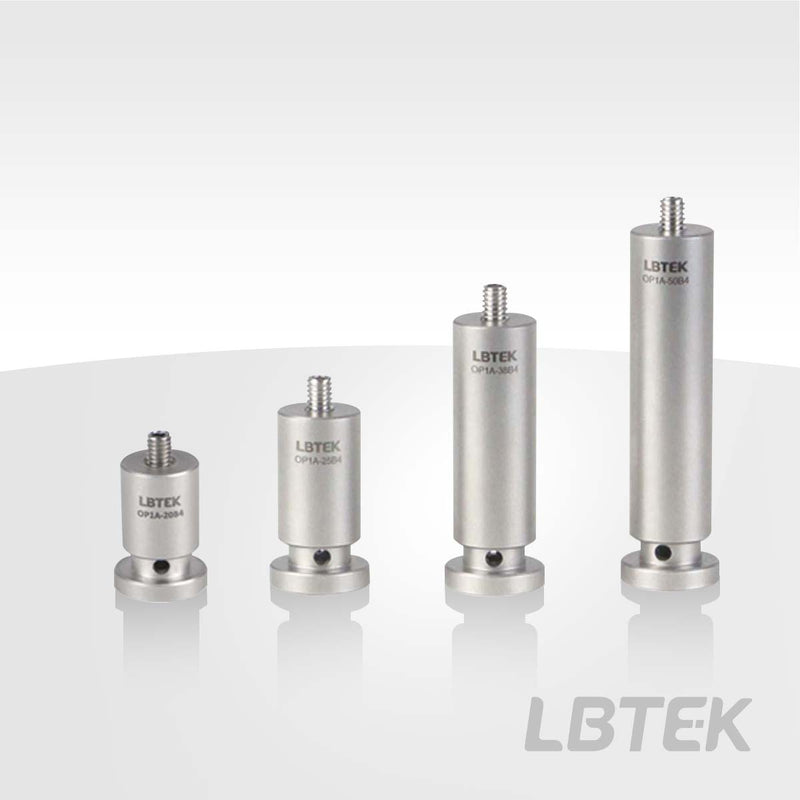

Ø12 mm Optical Post with Base — Model OP1A-38B3
✔ In Stock — Ships Today
The Ø12mm optical post with base from LBTEK features an M3 tapped hole at the top, equipped with a removable M3×8 stud, compatible with most optical component mounts. The base-mounted design incorporates an M6 tapped hole at the bottom, compatible with LBTEK PHA-16S mini clamping fork for rapid fixation on optical tables or breadboards. A Ø2.4 mm through-hole on the post is provided to enhance torque during component tightening. The purchase comes with one M3×8 socket set screw. Available in 5-piece packages.
Key Features
- 303 stainless steel with sandblasting and passivation surface treatment;
- M3 tapped hole at the top and M6 tapped hole at the bottom;
- Side Ø2.4 mm through-hole;
Application
The OP1A-XXB3 series and PHA-16S are paired for application to 16 mm coaxial optical systems.
| Material | 303 Stainless Steel |
| Surface Treatment | Sandblasting + Passivation |
| Length | 38 mm |
| Outer diameter | Ø12 mm |
| Top threaded hole specifications | M3 |
| Weight | 0.032 kg |
| Slot Width | 3.1 mm |
| Through-hole diameter | Ø2.4 mm |
| Bottom threaded hole specifications | M6 |
| Quantity | 1 piece |
CAD Drawing
Download
Click and drag to rotate. Scroll to zoom.
