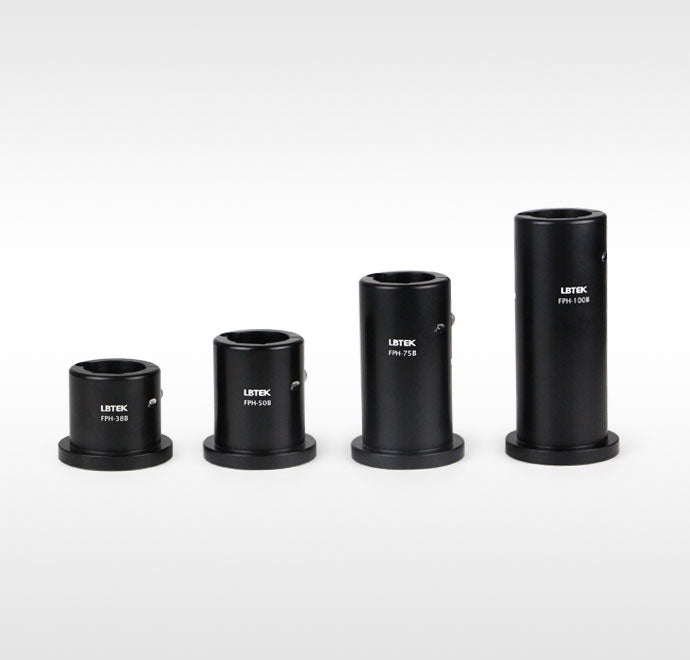

Ø25 mm Flexible Post Holder FPH-75B

The Ø25 mm base-type flexible post holder from LBTEK can achieve flexible locking by using a 3 mm hex key to tighten the M4 socket head cap screw. The circular groove design allows the metal to bend, thereby securing the post. After locking, the square groove forms two fixed contact lines with the post to ensure maximum clamping force. The center through-hole of the base-type flexible post holder runs fully through to the bottom, satisfying the minimum beam height specification. The bottom features a Ø47×6.1 mm mount, which can be used together with the clamping fork PHC1.5 for post holders for flexible fixation on an optical breadboard.
